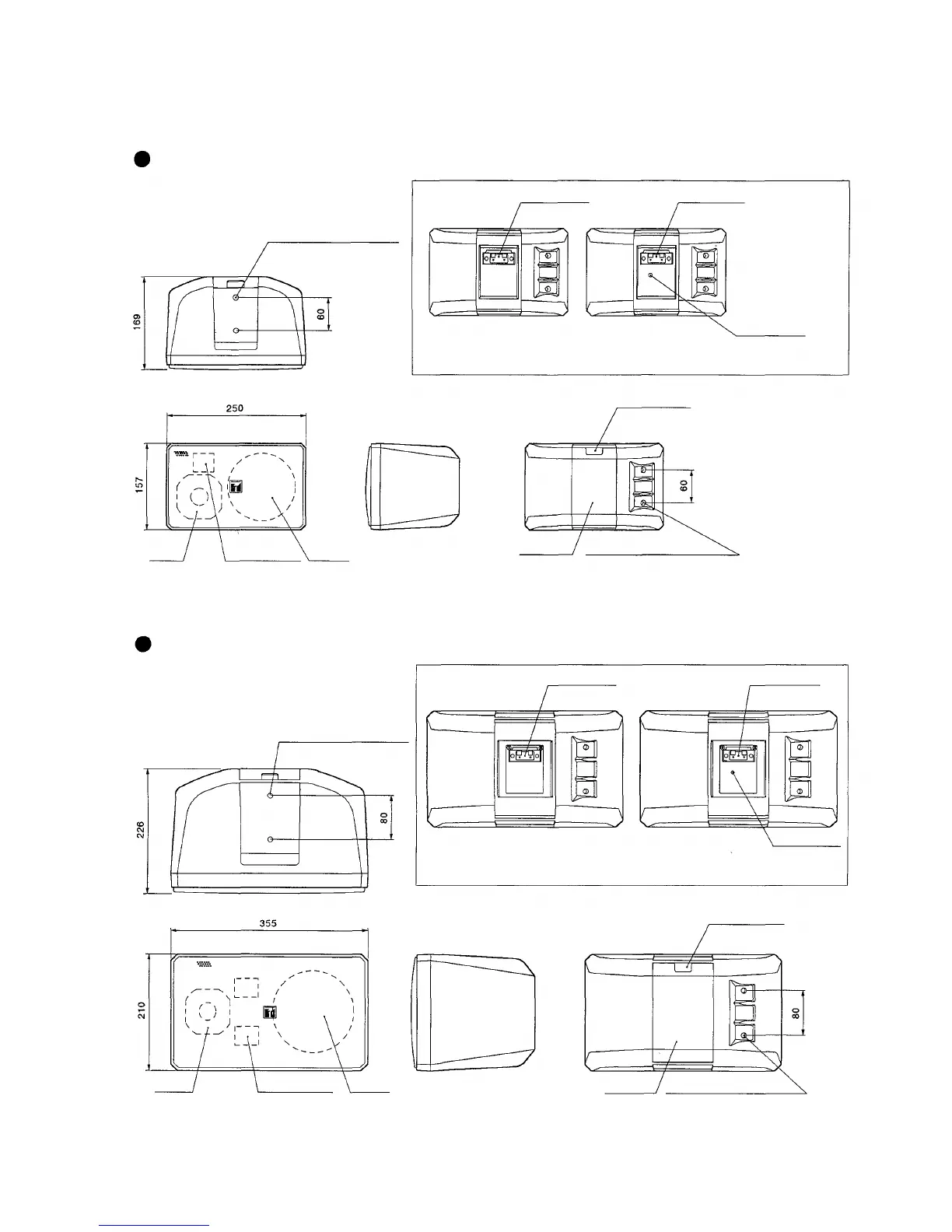

2. DIMENSIONAL DIAGRAM AND NOMENCLATURE
F-160 Series
(Unit: mm)
M5 screw mounting hole x 2
Depth: 14 (Top panel only)
Push terminal
Push terminal
Rotary switch
High-impedance models
F-160GM/F-160WM/F-160WP
Low-impedance models
F-160G/F-160W
[Rear panel without a rear cover]
Cable feed slot
Rear cover
M5 screw mounting hole x 2
Depth: 14
(Unit mm)
Tweeter Bass-reflex duct
Woofer
F-240 Series
Push terminal
Low-impedance models
F-240G/F-240W
[Rear panel without a rear cover]
High-impedance models
F-240GM/F-240WM
Rotary switch
Push terminal
Cable feed slot
Tweeter
Bass-reflex duct Woofer
Rear cover M5 screw mounting hole x 2
Depth: 14
M5 screw mounting hole x 2
Depth: 14 (Top panel only)
