6. INSTALLATION
6.1. Direct Wall/Ceiling Mounting

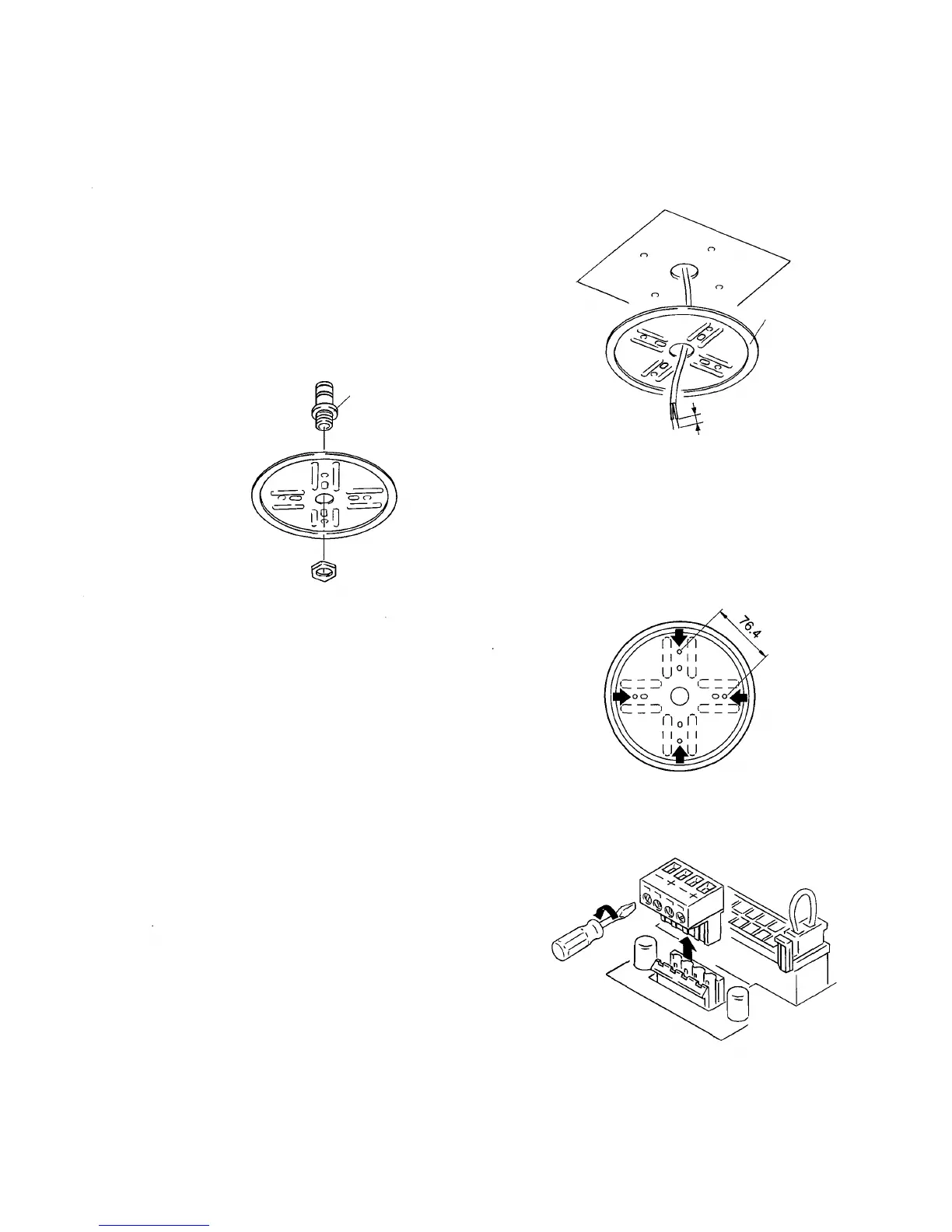

Step 1. Base frame mounting
1-1. Pull the cables out of the wall or ceiling through the
hole in the center of the base frame, then strip the
insulation back about 5mm from the cable ends.
Tip
• Usable cable: Solid cable or stranded cable (0.2
mm
2
- 2.5 mm
2
) (Corresponding to
AWG No. 24-14)
• The base frame hole can also be used for 1/2
EMT conduit fitting.
1-2. Secure the base frame to the wall or ceiling panel
with screws at four places shown on the right.
Notes
• Use nuts and bolts (not supplied with the unit) that
are appropriate for the structure and composition of
the wall or ceiling.
• Protect the H-2WP from rain when installing. (Refer
to P. 10 "7.1. Waterproofing".)
Step 2. Wiring and impedance changes
2-1. Unplug the detachable input connector from the
speaker socket, and with a small slot screwdriver,
loosen the screws of the terminals to use.
5
1/2" EMT conduit fitting
Base frame
About 5 mm
To Next Page
