9. JOINING SPEAKERS
Joining line array speakers configures a longer linear sound source, permitting richer low-frequency sound
reproduction as well as transmission of higher sound output over a longer distance.
To join speakers, use the optional SR-EP4 Extension Plate.
[Joining procedure]
Step 1. Remove the (M5 oval-head) screws on both sides of the speaker.
The removed screws are no longer used.

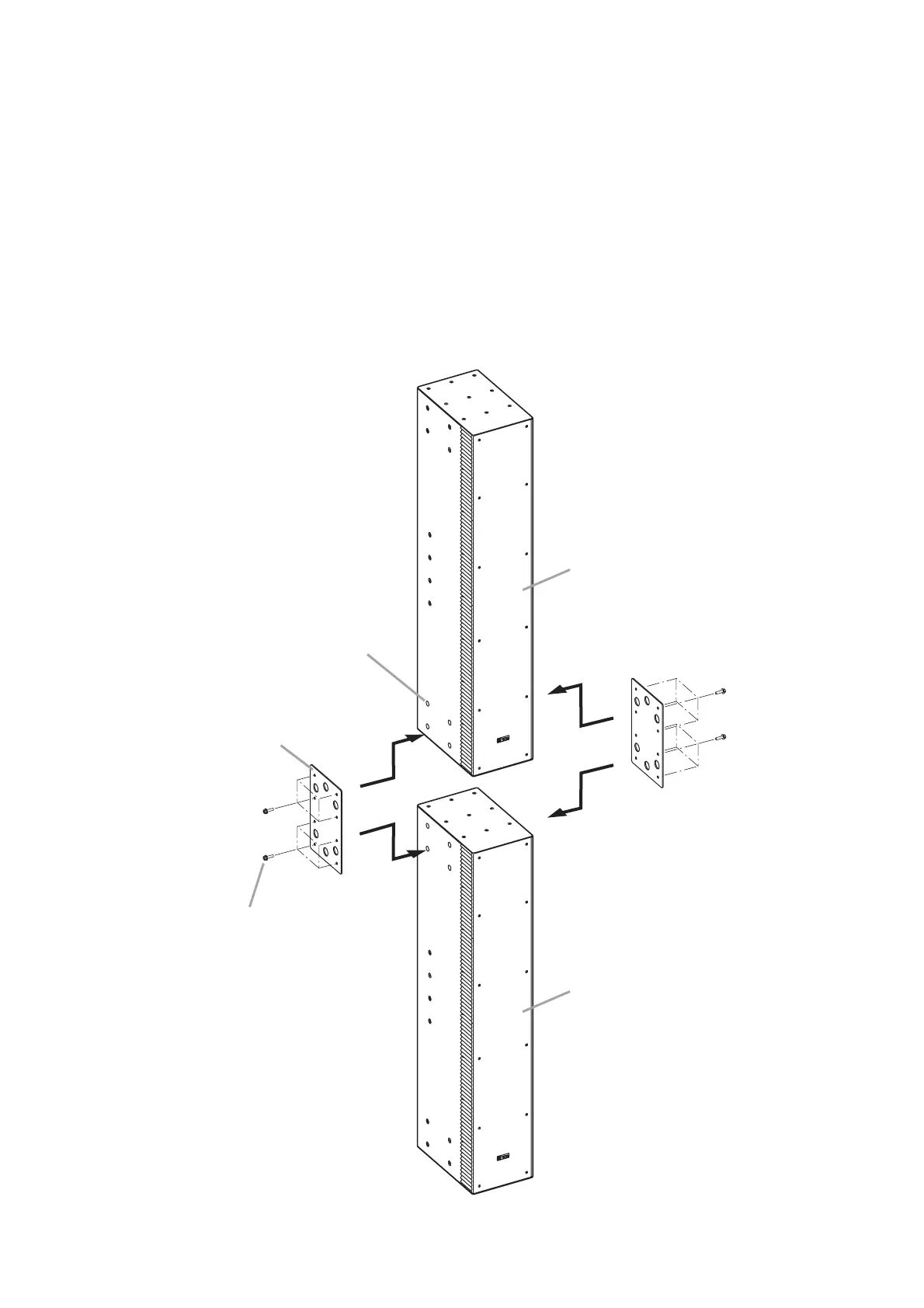

Step 2. Join 2 speakers using the SR-EP4 Extension plate.
Fix the plate to the speaker using the hex head bolts supplied with the SR-EP4.
Hexagon head bolt M5 x 20 with washer
(supplied with the SR-EP4)
Extension plate SR-EP4
(optional)
Note
The screws removed
in Step 1 are not used.
Speaker
Speaker
Note
Maximum number of speakers to
be jointed are 3, when using 2 sets
of SR-EP4.
