3-79
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
8.4.4. End of line
Speaker line failure can be detected with greater accuracy when the end of line units are connected.
Use the SX-200EL for the VX-3004F unit and the VM-300SV for the VX-3008F and VX-3016F units.

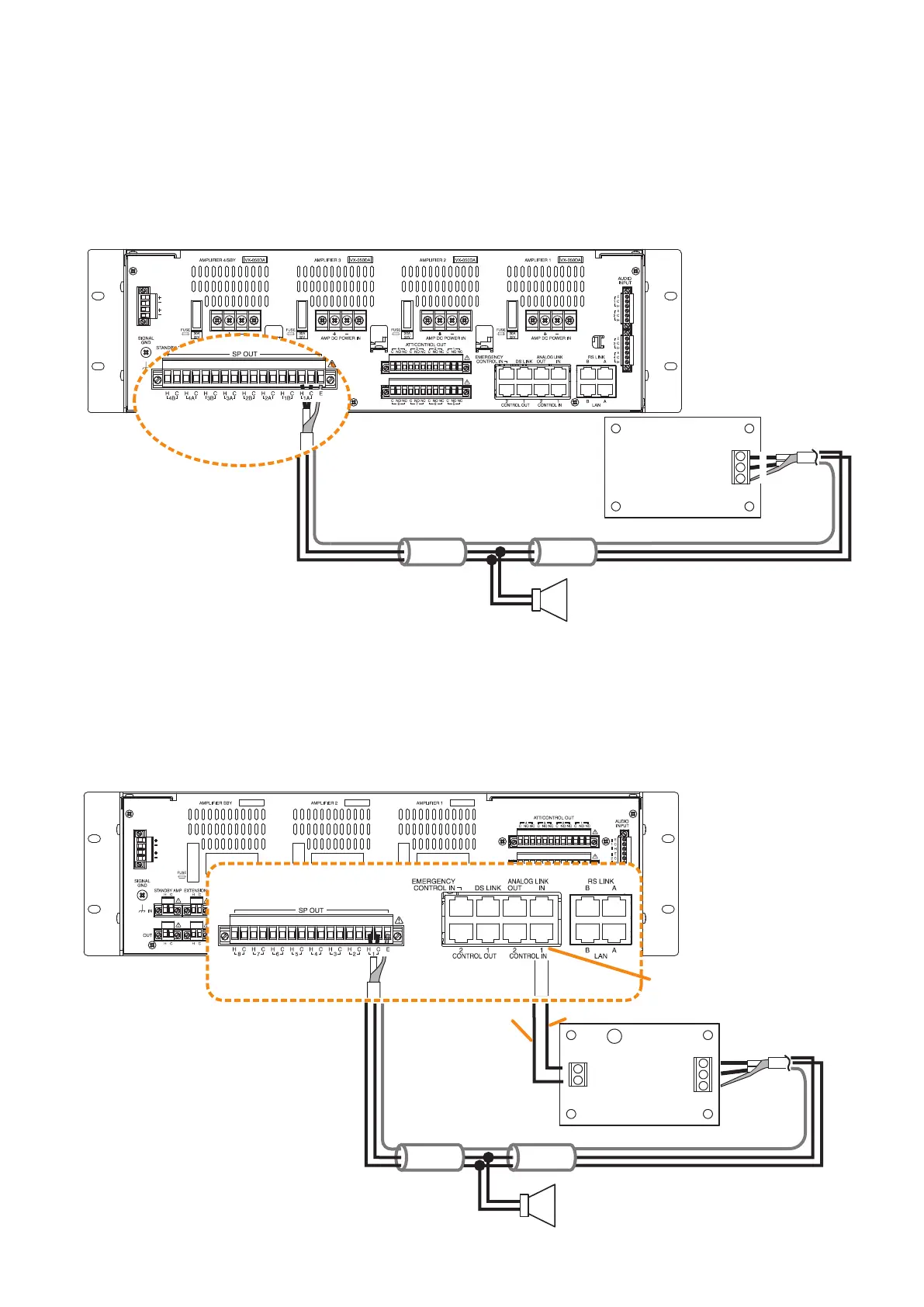

[Example 1]
The gure below shows a connection example to connect the SX-200EL to the speaker line.
G
C
CN2
CN1
H
C
E
VM-300SV
Shield Shield
C
CI-1
COM
H
VX-3008F
CONTROL IN 1
H
C
ShieldShield
H
C
H
C
SX-200EL
H
C
E
VX-3004F
[Example 2]
The gure below shows a connection example to connect the VM-300SV to the speaker line.
Notes
• Connect the VM-300SV between each speaker line end and the unit's control input terminal.
• While a broadcast is being made through the speaker line with the VM-300SV installed, speaker line failure
function for that line cannot be performed.
• External attenuators cannot be used in the system with the VM-300SV installed.
