3-94
Chapter 3
INSTALLATION AND SETTING PROCEDURES (HARDWARE)
8.12.4. Power source connection
[When power is supplied from the VX-3000DS or VX-3150DS]
See the operating instructions supplied with the VX-3000DS or VX-3150DS.

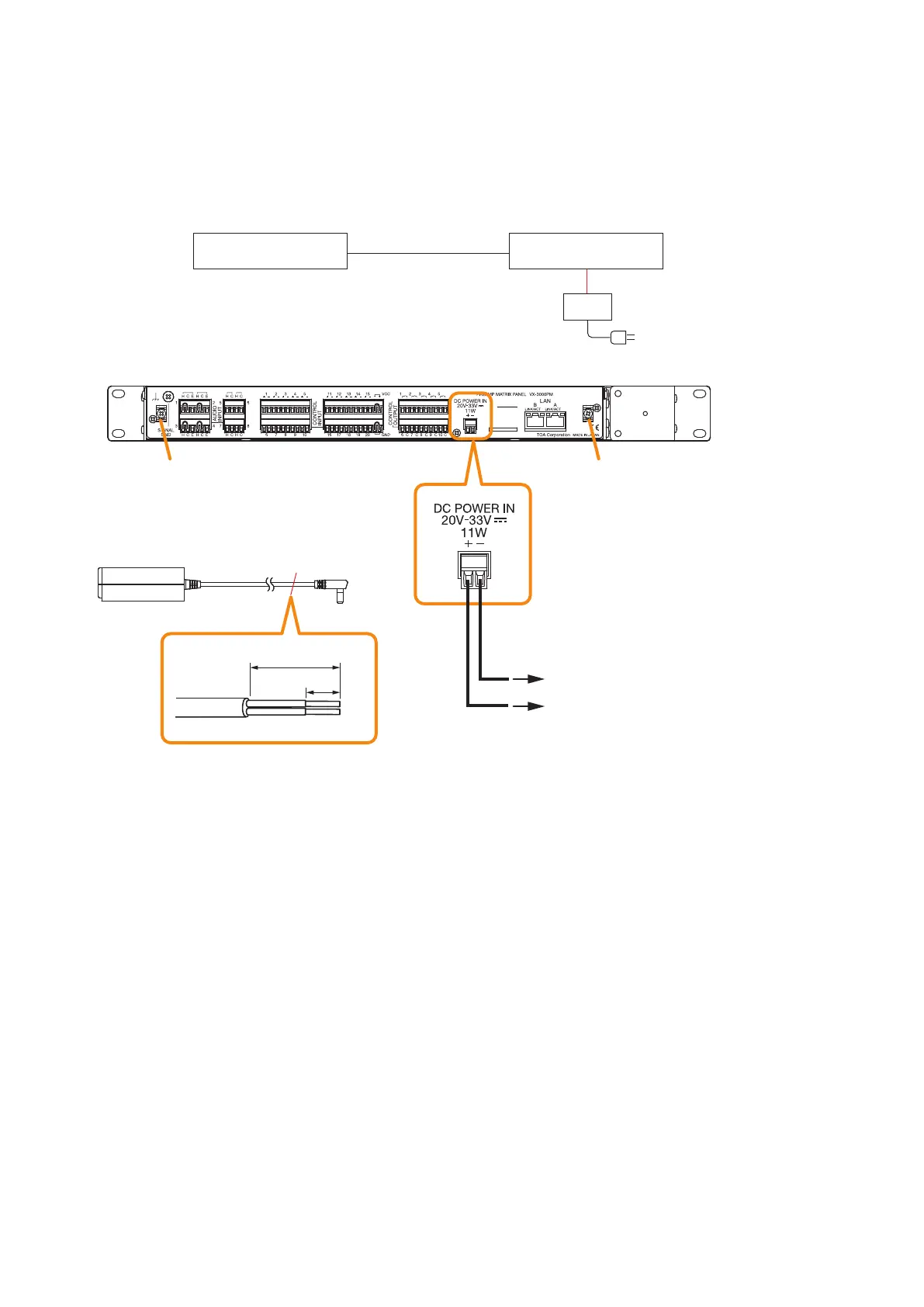

[When power is supplied from the AC adapter]
VX-3000F VX-3000PM
AC adapter
Cable tie fixture Cable tie fixture
Power input terminal
VX-3000PM (rear)
9 mm
25 mm
(+)
(–)
AC adapter AD-246 or equivalent unit
AC adapter AD-246
Cut off the DC plug of the AD-246 AC Adapter,
and treat the tip of cable as follows.
(Use when no back up power supply
is required.)
(–)
(+)
Cut off
8.12.5. LAN link connectors connections
See "VX-3000 Unit's LAN Link Connector Connection" on p. 3-83
Note
To power the VX-3000PM even during power failures, a battery backup is also needed for the AC adapter.
Or supply power to the VX-3000PM from the VX-3000DS or the VX-3150DS without using the AC adapter.
To Next Page
