SECTION 6
6-6
3-/ 4-Cylinder

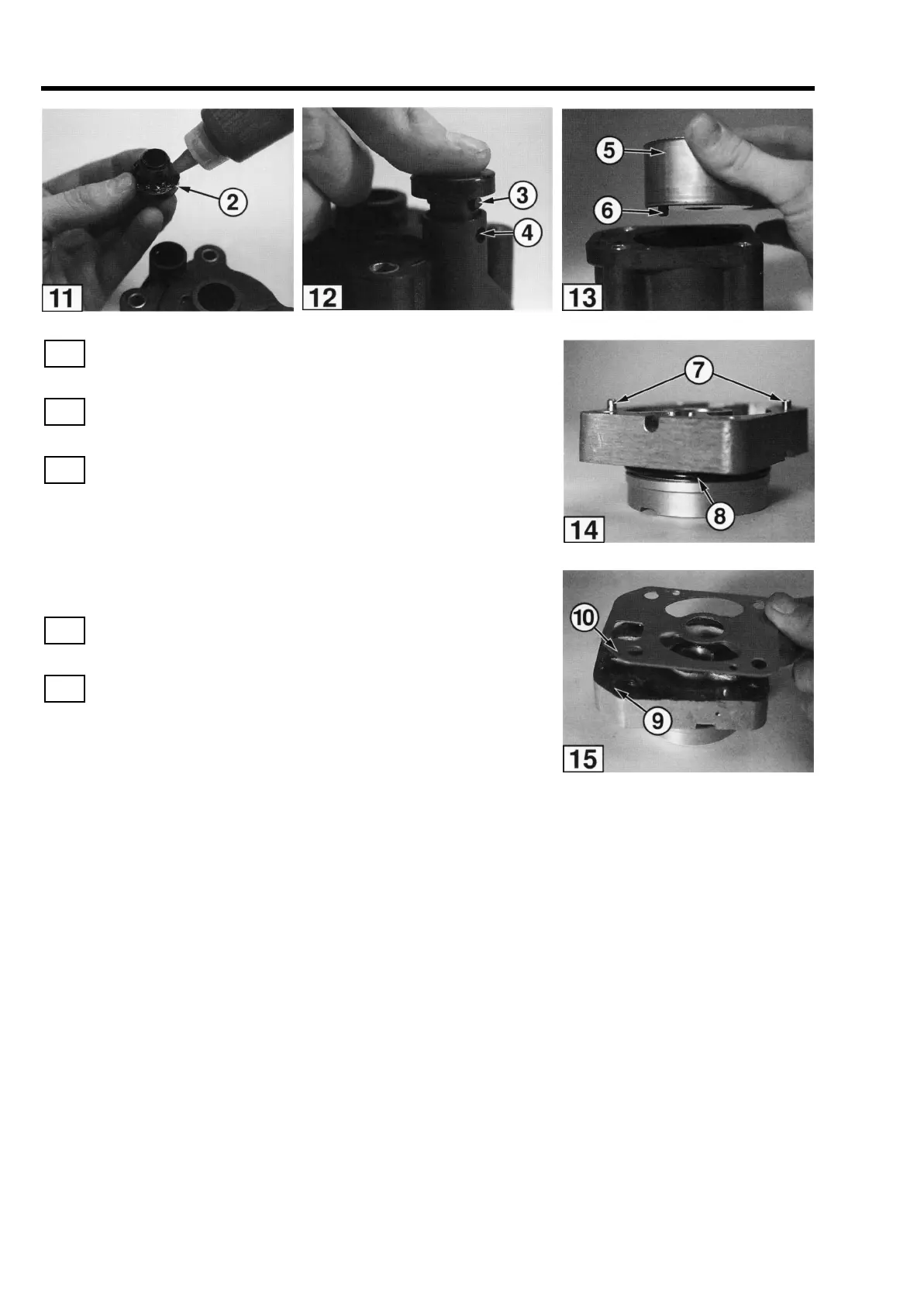

5. Apply anaerobic gasket maker to seating surface of water
pipe lower seal
(2)
.
6. Install seal in upper pump case so locking tabs
(3)
align
with holes
(4)
.
7. Slide pump case liner
(5)
partially into upper pump case
housing so locking tab
(6)
is aligned with notch in housing.
NOTE
Pump case liner must be flush with flanged surface
of upper pump case. If not, remove liner and re-align
locking tab with notch in upper pump case housing.
9. Install lower pump case dowel pins
(7)
if removed.
And install new O-ring
(8)
.
10. Apply gasket sealant to both sides of guide plate gasket
(9)
. Mount gasket and guide plate
(10)
on lower pump case.
11
12
13
14
15
T1351
T1352
T1349T1348T1347
