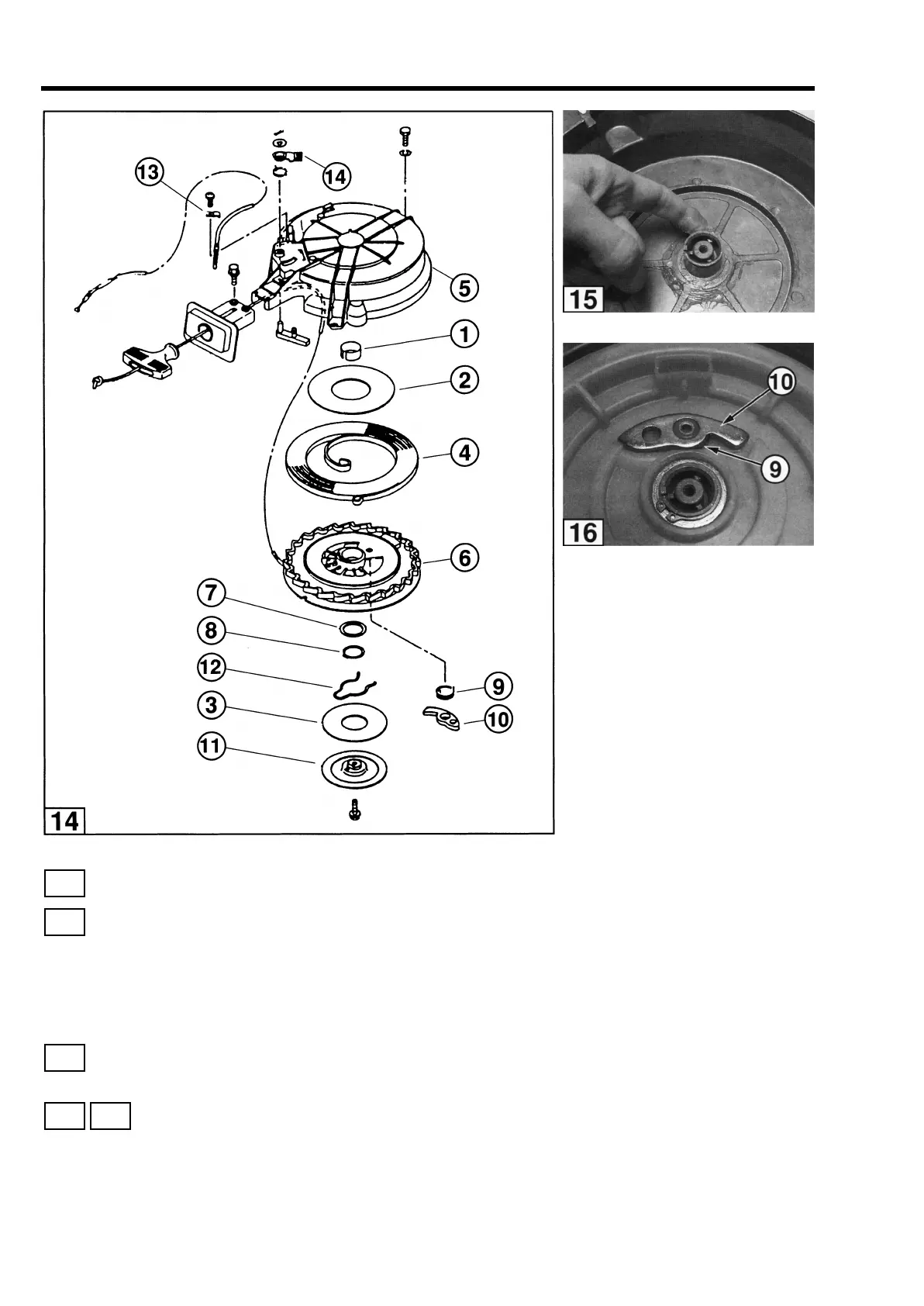

3. Wind starter rewind spring
(4)
into starter housing.
4. Thread starter rope through rope hole in reel
(6)
. Knot the
rope and pull it tight in the reel. Route the remaining rope
through the rope guide and attach the handle.
5. Hold reel so knot is facing up. Wind the starter rope clockwise 1-1/2
times around the reel and hook it into the reel notch.
6. Position reel in starter housing so rope notch is aligned
with the rope guide. Install washer
(7)
and snap ring
(8)
.
7. Install return spring
(9)
and ratchet
(10)
on the reel.
14
14
14
14 16
T1191
T1190
T1189
