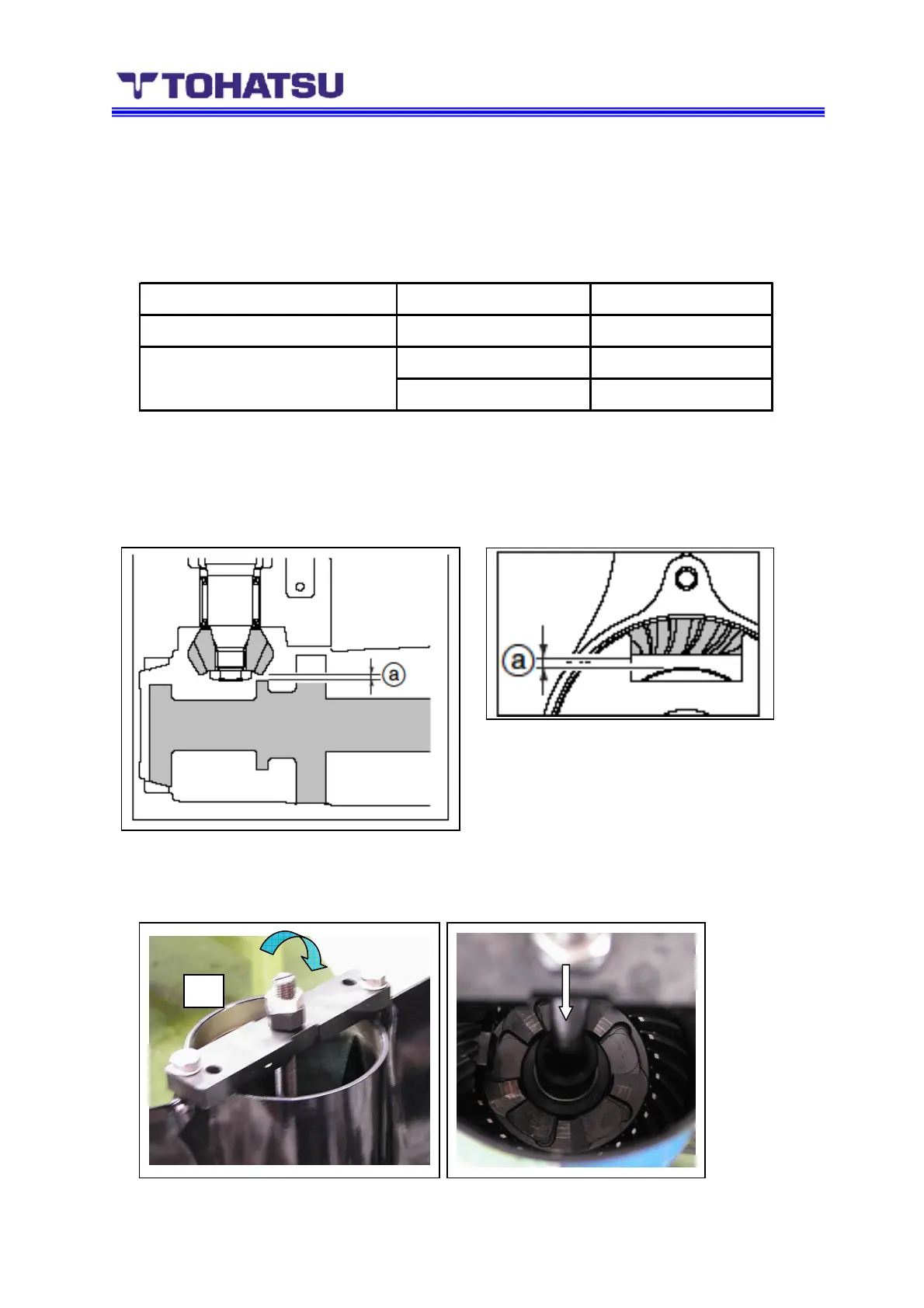

1. Assemble the drive shaft spring, the guide drive shaft spring, the drive shaft, A gear, B gear,
and propeller shaft housing to the case.
In this case, attach the same shim.
Tighten each bolt and nut as specified torque. (Apply Three bond 1342 to the thread after
degreasing.)
*For this process, you do not need to assemble the water pump parts concerned.
2. Adjust the gap
a as specified spec.
Pinion gear height: 0.60~0.64mm
3. Assemble the below special tool to the lower case and turn the driveshaft tightening the bolt
of
a. When the driveshaft has lightly heavy, turn the nut additionally 180 degree.
This is to fix the A gear for backlash measurement.
a
Size 1 st
Bevel gear nut 4.0-6.0kg.m
M8 2.4-2.6kg.m
M10 3.8-4.2kg.m
Gear case mount bolt
To Next Page
