INSTALLATION 21
attitude. Check the position of water
surface on the driveshaft housing. If the
water surface is near the bottom cowl-
ing, in high waves, water may enter the
engine cylinders.
Incorrect outboard motor mounting
height or existence of underwater
object(s), such as hull bottom design,
bottom surface conditions or underwa-
ter accessories, can cause water spray
possibly reaching the engine through an
opening of the bottom cowling during
cruising. Exposing the engine to such
conditions for extended periods can
lead to severe engine damage.

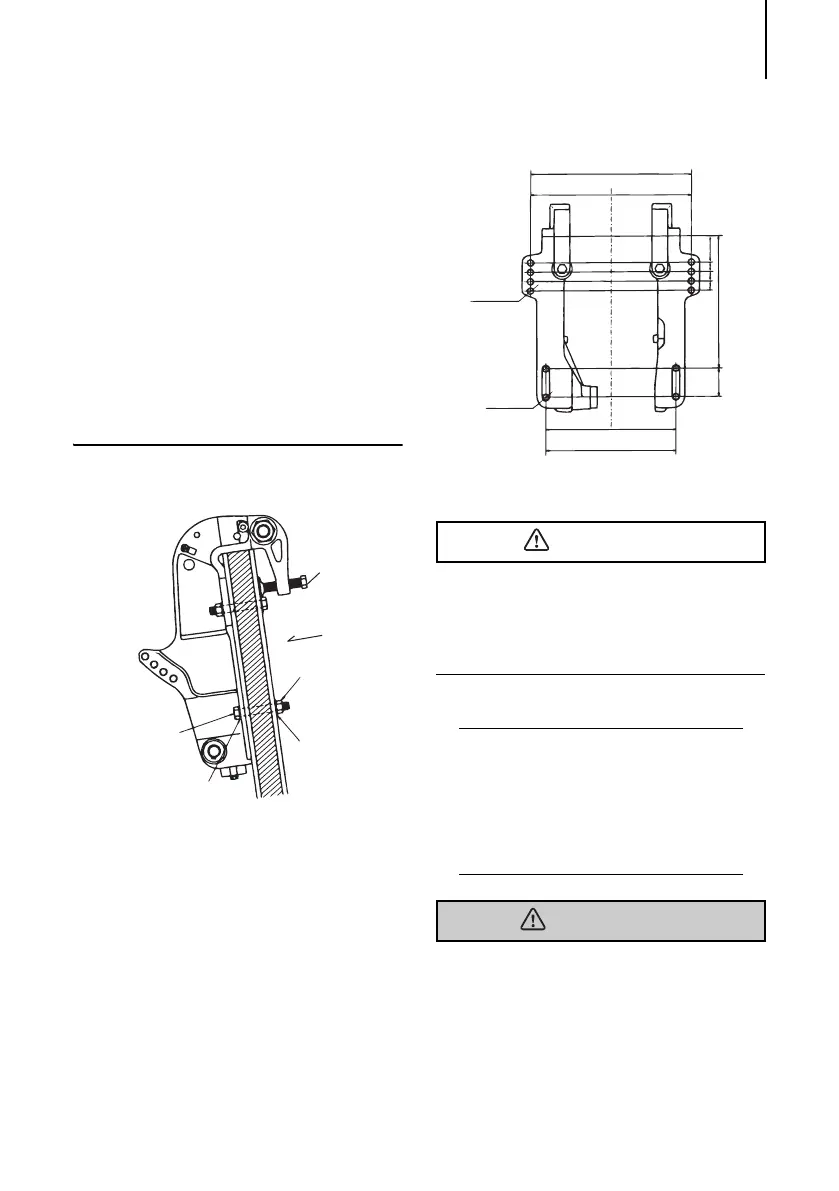

MFG, EFG, EFT, EPT type
2. Power Tilt and Gas Assist type
1. Clamp screw (without EPT type)
2. Bolt (12 × 105)
3. Washer (small diameter)
4. Nut
5. Washer (large diameter)
View A
ENOW00008-0
Mounting bolts should be installed with the
bolt head at inside surface of the transom.
Mounting bolts installed with the threaded
end at the inside surface of the transom
can cause personal injury.
ENON00003-0
Notes
1. Apply sealing agent, such as silicone
sealed between the bolts and the tran-
som board holes before tightening the
bolts.
2. Be sure to tighten the mounting bolt
nuts to the specified torque.
(30 Nm (3.0 kgf) 13 ft-lb)
ENOW00009-0
Mounting the outboard motor without
following this manual can lead to unsafe
conditions such as poor maneuverabil-
ity, lack of control or fire.
Loose clamp screws and/or mounting
bolts can lead to the release or displace-
ment of the outboard motor, possibly
4
1
A
2
5
3
ENOF00017-0
CAUTION
WARNING
(327)
(251)
125.5
253.5
51
56
181818
125.5
163.5 163.5
Ø12.5
Ø12.5
ENOF00018-0
MFS25-30B_EN.book Page 21 Wednesday, December 12, 2012 11:58 AM
