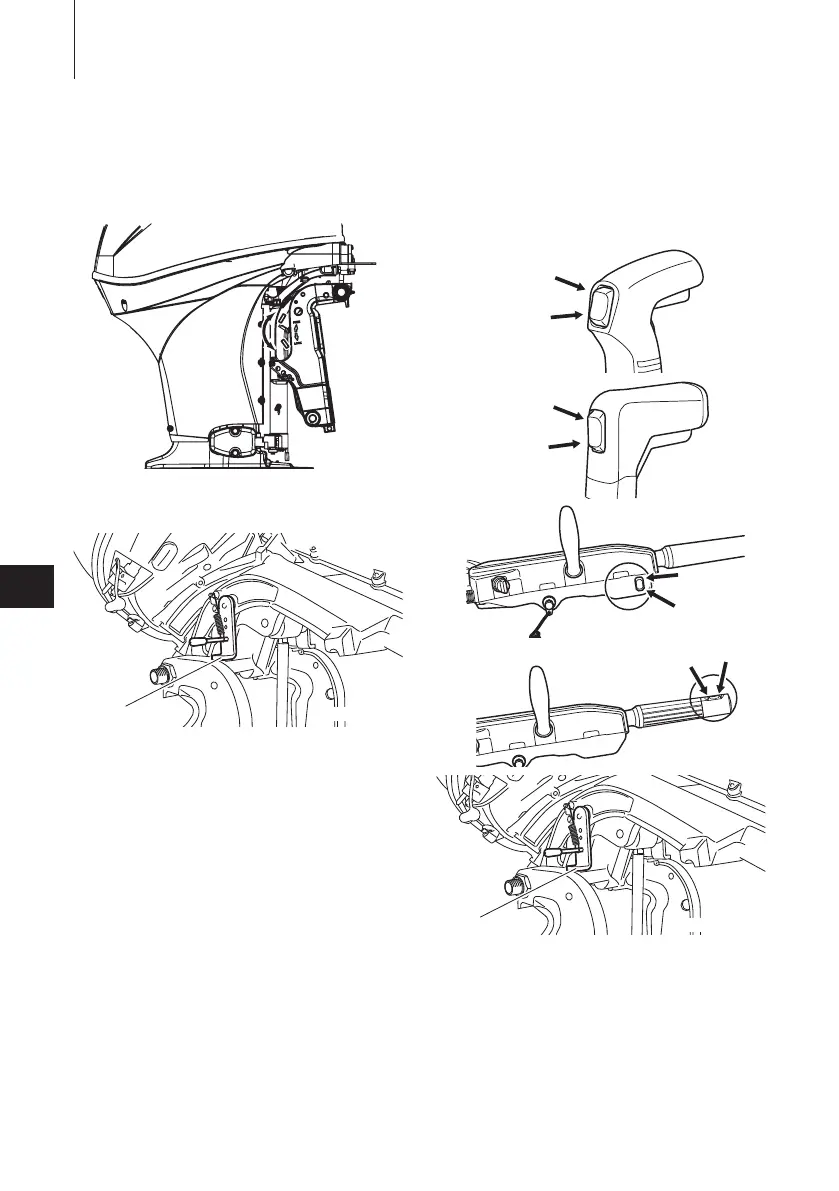

4. Move (DOWN) lock lever to “Lock”
position after the outboard motor is
completely tilted down.
1. Free position
2. Lock position
1. Tilt stopper
ENOM00069-A
Power Trim & Tilt type
Tilt up
1. Operate the Power Trim & Tilt switch
and tilt the outboard motor up.
2. Lock the tilt with the Tilt stopper after
the outboard motor has been tilted
up
Tilt down
1. Release the tilt stopper from the set-
up position while slightly tilting up
outboard motor.
2. Operate the Power Trim & Tilt switch
and tilt the outboard motor down
until the motor touches to the thrust
rod.
1. Tilt stopper
The outboard motor can also be tilted up
and down using the switch provided
under the bottom cowl.
ENOF02437-0
