ENGINE OPERATION 57
7
It is possible to tilt up or down in spite of
main switch “ON” or “OFF”.
ENOM00940-0

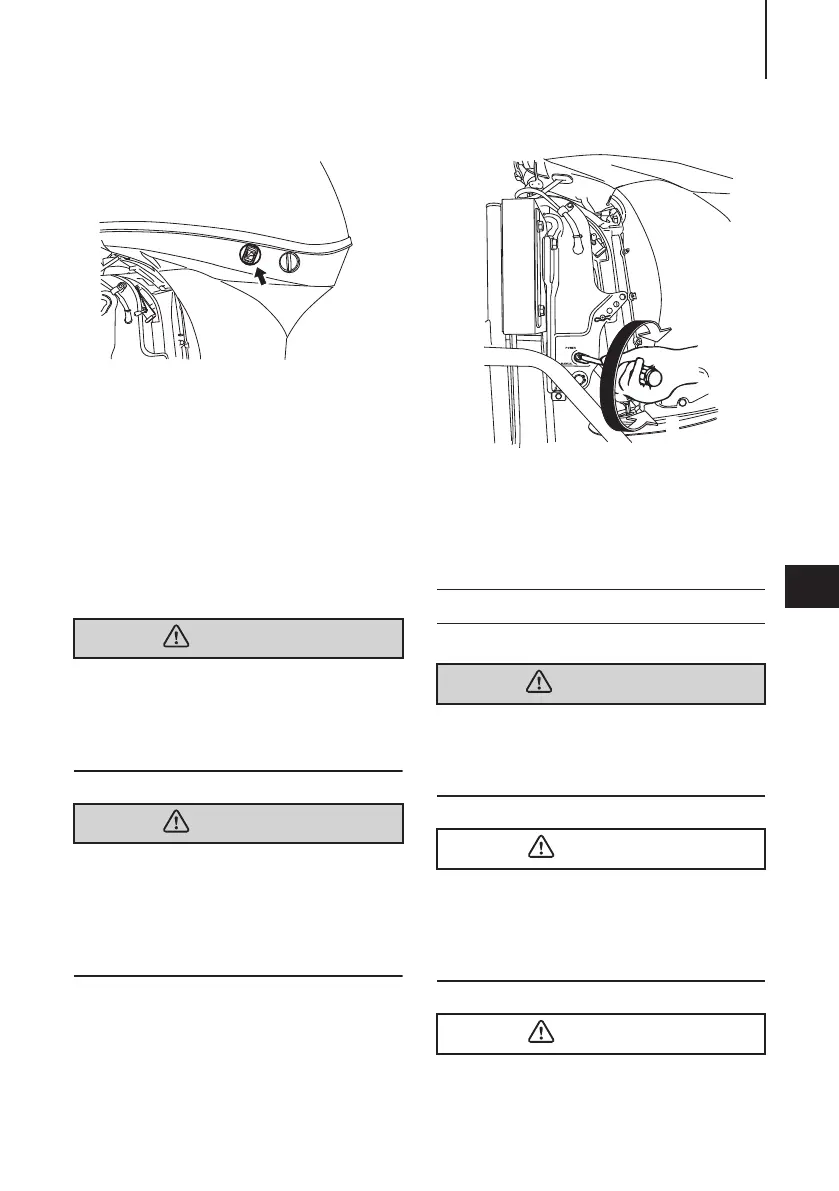

Manual relief valve
If the battery is dead, and the power trim
& tilt switch thus inoperative, open the
manual valve completely in the Manual
direction. This will allow manual tilting of
the outboard motor.
ENOW00872-0
Make sure the manual relief valve is closed
before operating the outboard motor. If the
manual relief valve is not closed, the out-
board motor will tilt up when operated in
reverse.
ENOW00873-0
Before opening the manual relief valve, make
sure nobody is under the outboard motor. If
the outboard motor is in the tilted up posi-
tion, it will tilt down suddenly if the manual
relief valve is loosened in the “Manual”
direction.
1. Power
2. Manual
Manual relief valve specified torque:
1.8 N
-
m (1.4 ft
-
lb, 0.18 kgf
-
m)
ENOM00068-A
ENOW00051-0
During shallow water operation, be careful
not to place your hand between the swivel
bracket and the clamp bracket. Be sure to
tilt the outboard motor down slowly.
ENOW00053-0
While in shallow water drive position, do not
operate the outboard motor in Reverse.
Operate the outboard motor at slow speed
and keep the cooling water intake sub-
merged.
ENOW00054-0
Do not overtilt outboard motor when driving
shallow water, or air may be sucked through
WARNING
WARNING
ENOF00891-B
9. Shallow water operation
WARNING
CAUTION
CAUTION
2
1
ENOF0089A-0
