6
① LCD display
Torque value, memory counter, tightening mode, torque unit, residual battery level will be indicated.
② Indicator display
Applied torque will be indicated by red and blue LED lamp positioning.
③ POWER key
Turn on/off power.
④ ▲ key
Send the counter forward and displays the measured data if any.
⑤ ▼ key
Send the counter backward and displays the measured data if any.
⑥ MD key
Push this key in PEAK mode, then it proceeds to "selecting the setting torque"
When you keep it pushed, it proceeds to "all data deletion" When you keep it pushed in RUN mode, it proceeds to
"settings"
⑦ MEM key
Push this key to save the measured data send forward the counter.
⑧ C key
Measured data will be cleared.
⑨ Handle
AA batteries x 2pc are to be set inside the handle.
⑩ Cap
Cap for battery replacement (counter-clockwise)
⑪ Reset switch
In case of display error or operational error, push this to reset. Noneed to use this switch after every recharging.
⑫ External output terminal
Connect the communication cable (No.585) to this terminal.
①
②
⑥
⑨
⑩
③ ④
⑤
⑦ ⑧
Set Torque Memory
(Not displayed on Run measuring mode.)
《LCD Display Details》
Torque Unit
Memory Counter
Displayed Torque
Tightening mode display
※
There will be no alphabetical symbol on LCD in Preset tightening mode. Only in Tightening judgement mode,
"J" appears on the upper left side of the LCD.
Tightening direction display will be indicated only in case of counter clockwise direction as "-", otherwise the
direction is clockwise.
Residual battery display
Tightening direction display

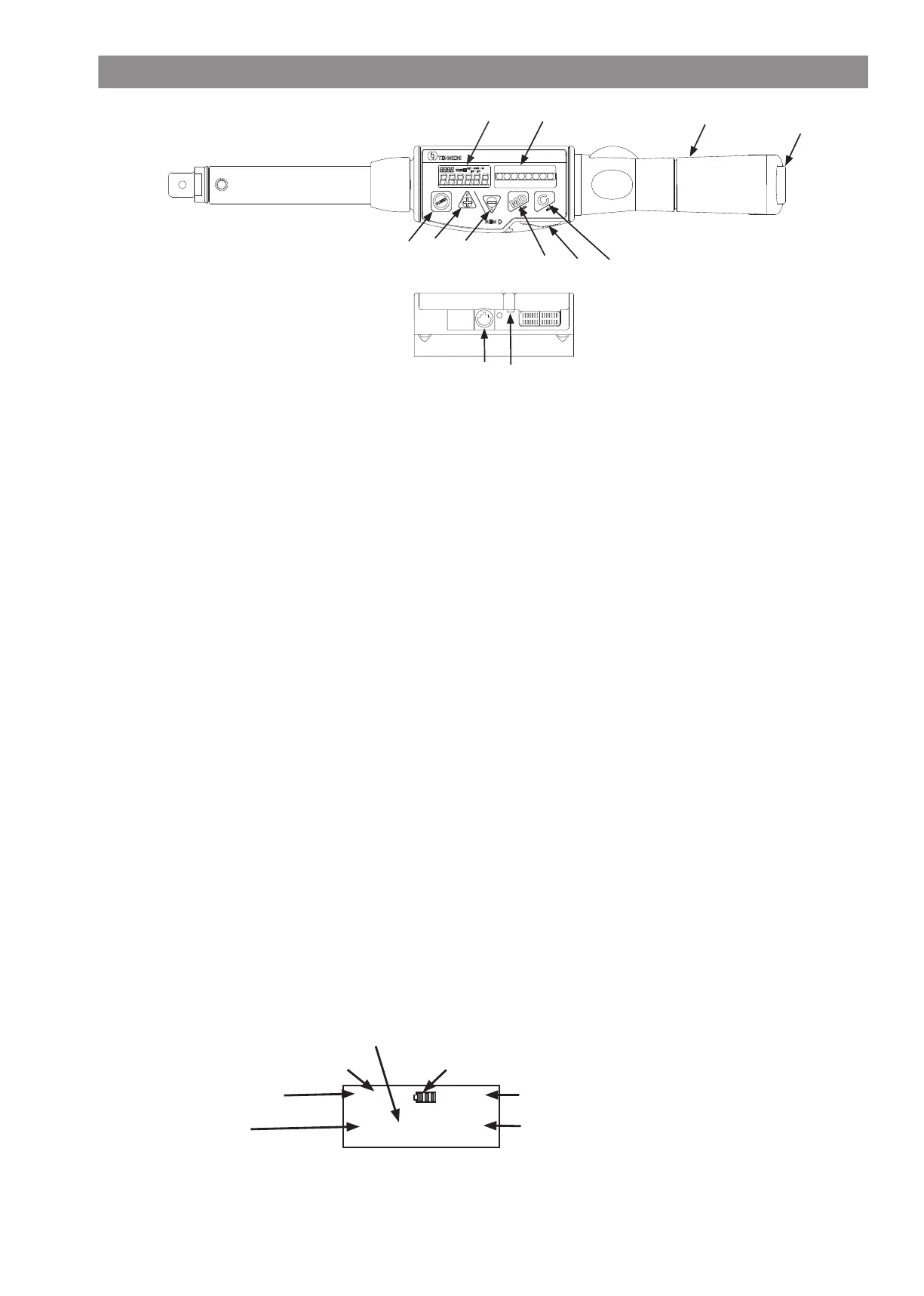

4. Name and Explanation of Each Part
⑪
⑫
