2-9

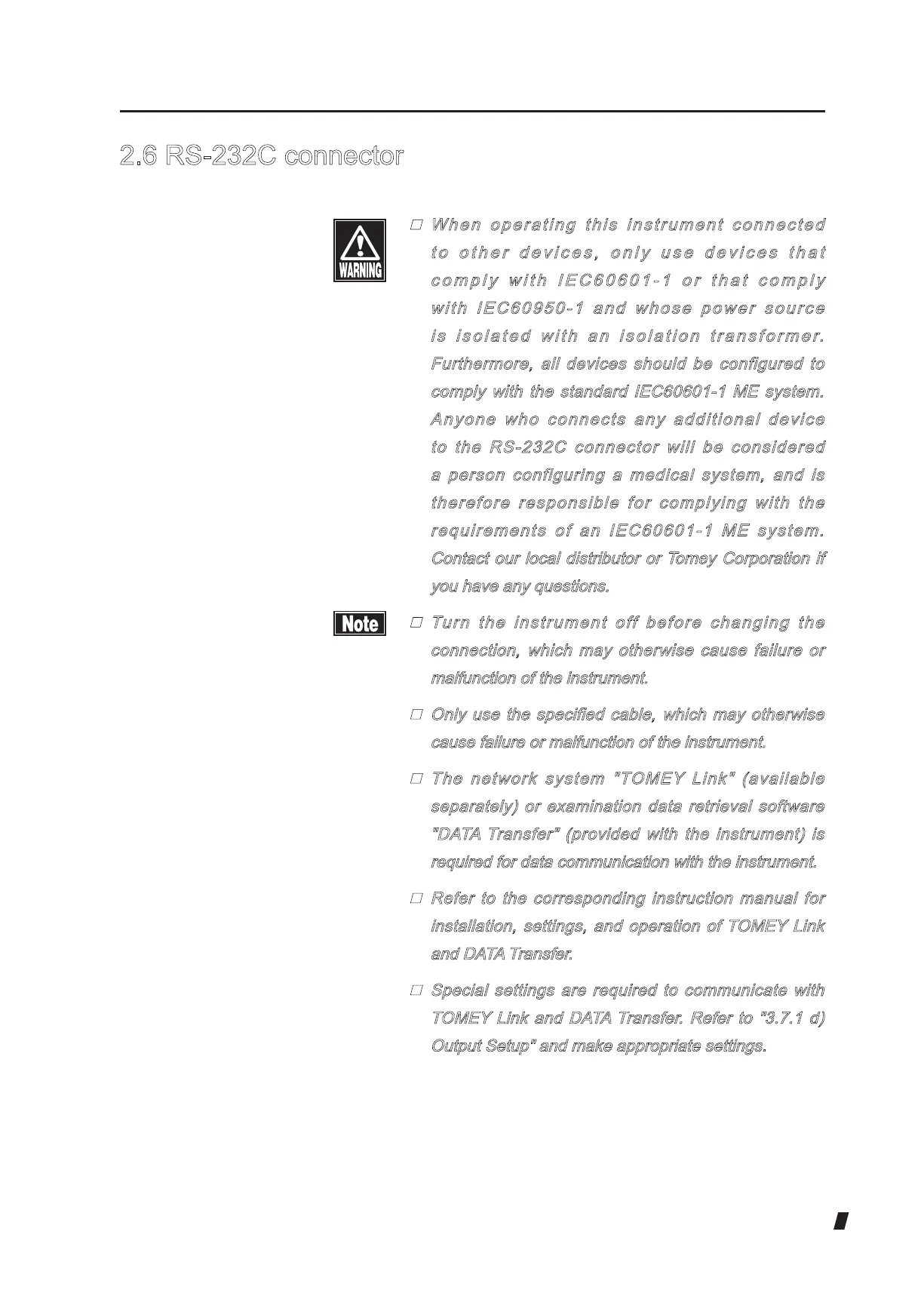

2.6 RS-232C connector
When operating this instrument connected
to other devices, only use devices that
comply with IEC60601-1 or that comply
with IEC60950-1 and whose power source
is isolated with an isolation transformer.
Furthermore, all devices should be configured to
comply with the standard IEC60601-1 ME system.
Anyone who connects any additional device
to the RS-232C connector will be considered
a person configuring a medical system, and is
therefore responsible for complying with the
requirements of an IEC60601-1 ME system.
Contact our local distributor or Tomey Corporation if
you have any questions.
Turn the instrument off before changing the
connection, which may otherwise cause failure or
malfunction of the instrument.
Only use the specified cable, which may otherwise
cause failure or malfunction of the instrument.
The network system "TOMEY Link" (available
separately) or examination data retrieval software
"DATA Transfer" (provided with the instrument) is
required for data communication with the instrument.
Refer to the corresponding instruction manual for
installation, settings, and operation of TOMEY Link
and DATA Transfer.
Special settings are required to communicate with
TOMEY Link and DATA Transfer. Refer to "3.7.1 d)
Output Setup" and make appropriate settings.
