Important! Connect TomTom LINK to vehicle
voltage (12 V / 24 V / 36 V). Do not connect to
a voltage converter. The three wires GND, IGN
and PWR+ (supply voltage) must be
connected.
1. Connect IGN (ignition) and PWR+ (supply
voltage) to separate 2 A / fast blow fuses.
2. Connect the GND wire (brown) to ground
(clamp 31).
3. Then connect the IGN wire (black) to
ignition (clamp 15).
4. Afterwards connect the PWR+ wire (red) to
carry current (clamp 30).
5. Now connect the SPEED wire (brown/
black) to the odometer pulse (optional).

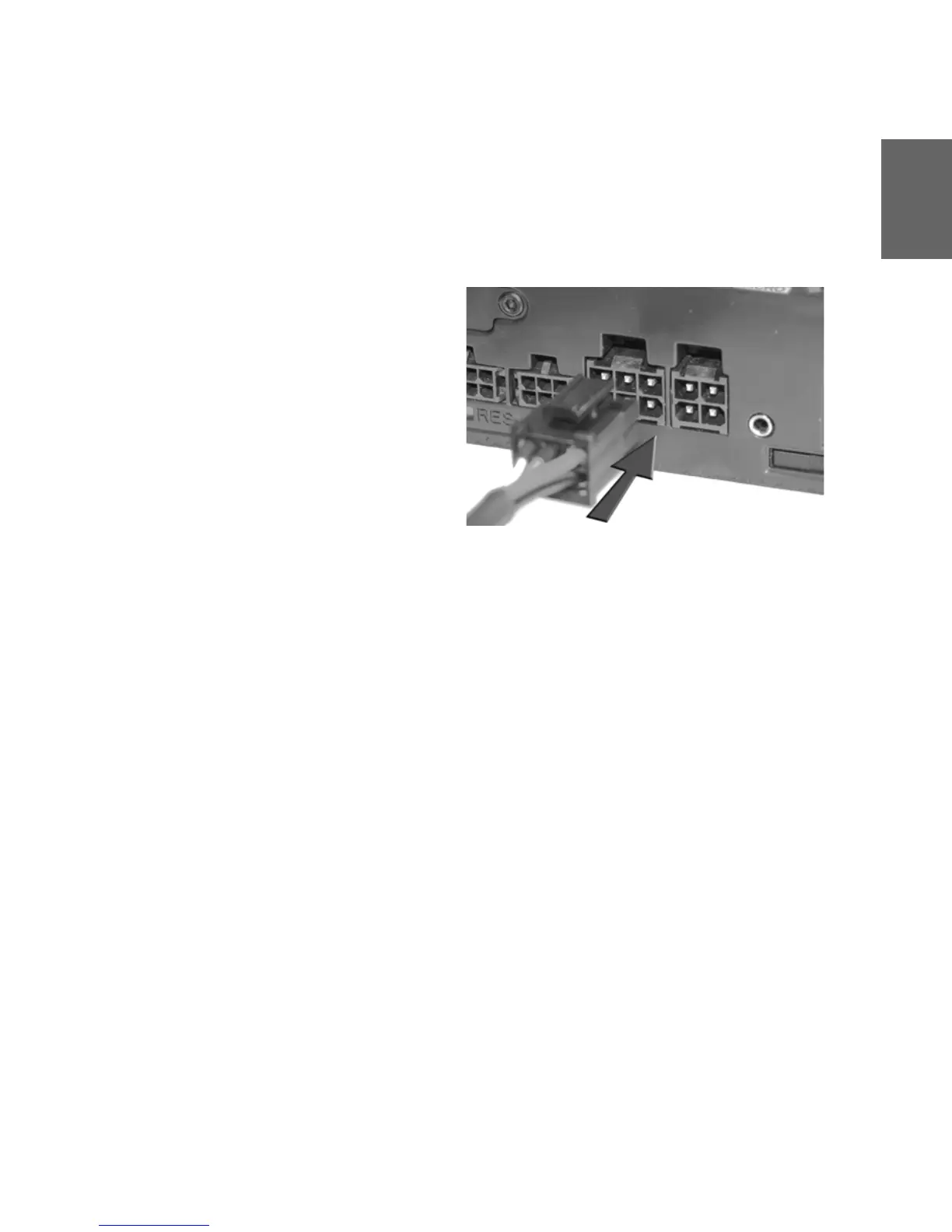

6. Then insert the 6-pin plug into the multi-
connector for the power cable.
