Tomy SX-300E - Installing New Gasket and Spring Band

ー49ー
2. Install the chamber lid gasket.

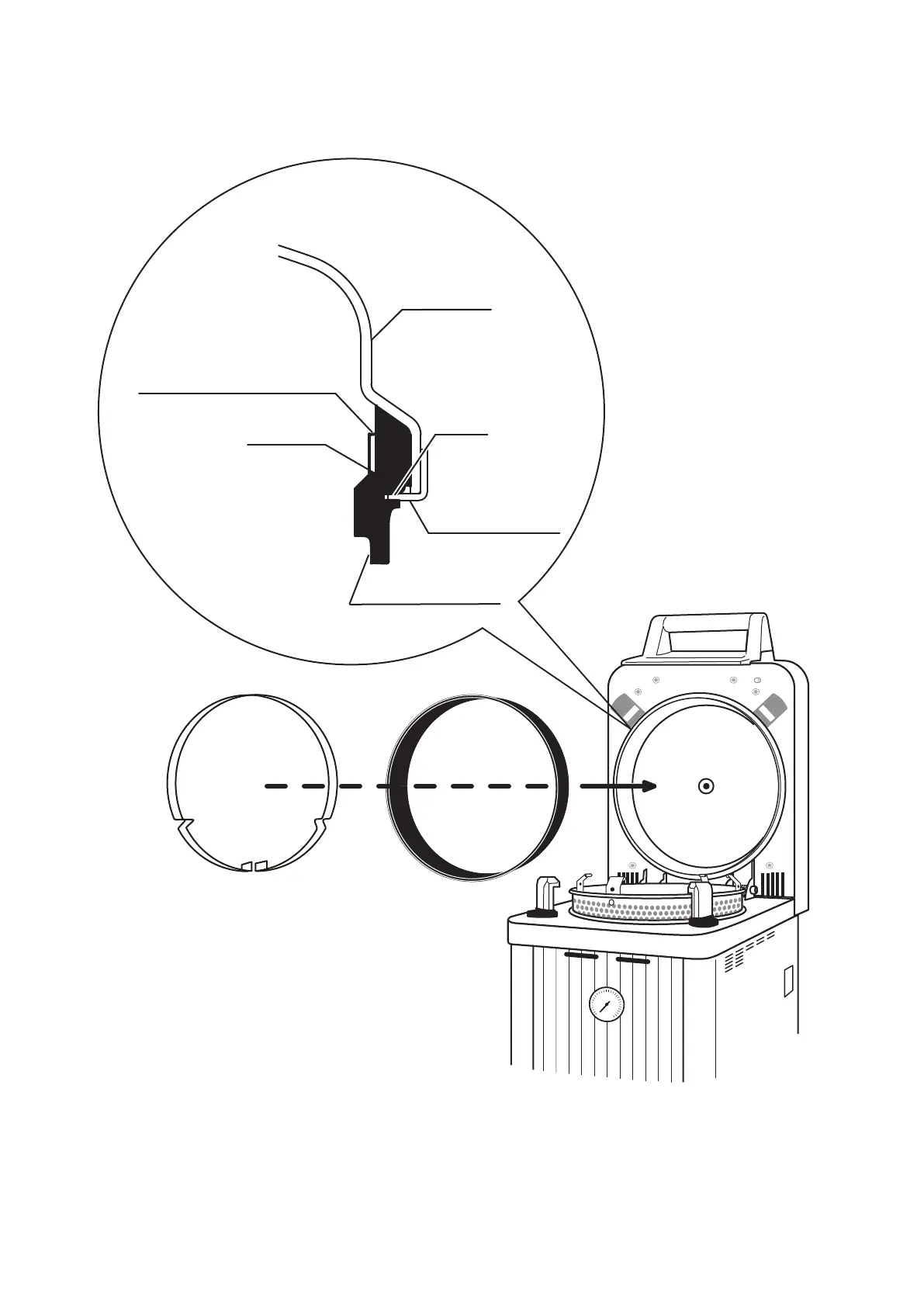

Install the new lid gasket so that the gasket groove rests rmly in the chamber lid guide.
①
Spring band of gasket gland
Chamber lid gasket
Spring band of gasket gland
Chamber lid gasket
Groove
Chamber lid
Chamber lid guide
Alignment
Cutaway view
