MANUFACTURER USER MANUAL EN
Protection screens are designed to provide additional protection for your welding
helmet. They protect the LCD screen against molten metal splashes and all
incandescent projections that occur during welding.
The internal protection screen is recommended when working in wet/humid
environments as it prevents misting.
The external protection screen protect the helmet from scratches and shocks that
could damage your screen.
SAFETY INSTRUCTIONS
• Before welding, check that the welding screen darkens efciently to protect the
eyes (eg. the ame from a lighter).
• Only use the accessories and spare parts listed in this manual or recommended
by the manufacturer.
• Do not use the welding helmet without a protective screen to prevent damage
to the LCD panel.
• Protect the LCD panel and the protection screen from dirt.
• Regular replace the protection screen for more visibility and comfort.

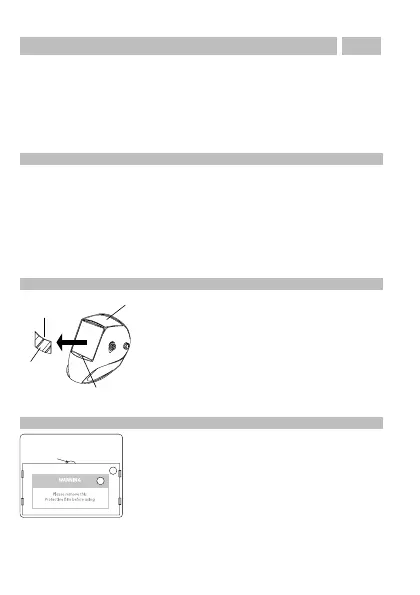

REPLACEMENT OF THE EXTERNAL PROTECTION SCREENS
2
3
A
1
The external protection screen (2) is removable by
placing a nger under the screen on (A) of the helmet
(1).
When changing the screen, make sure that the
protective lm (3) has been removed. This lm must be
removed only once the protection screen is in position
inside the helmet.
REPLACEMENT OF INTERNAL PROTECTION SCREENS
A
10
11
To change the internal protection screen (10), remove it
by sliding it down by placing a nger on (A).
When changing the screen, make sure you remove the
protective lm (11)
