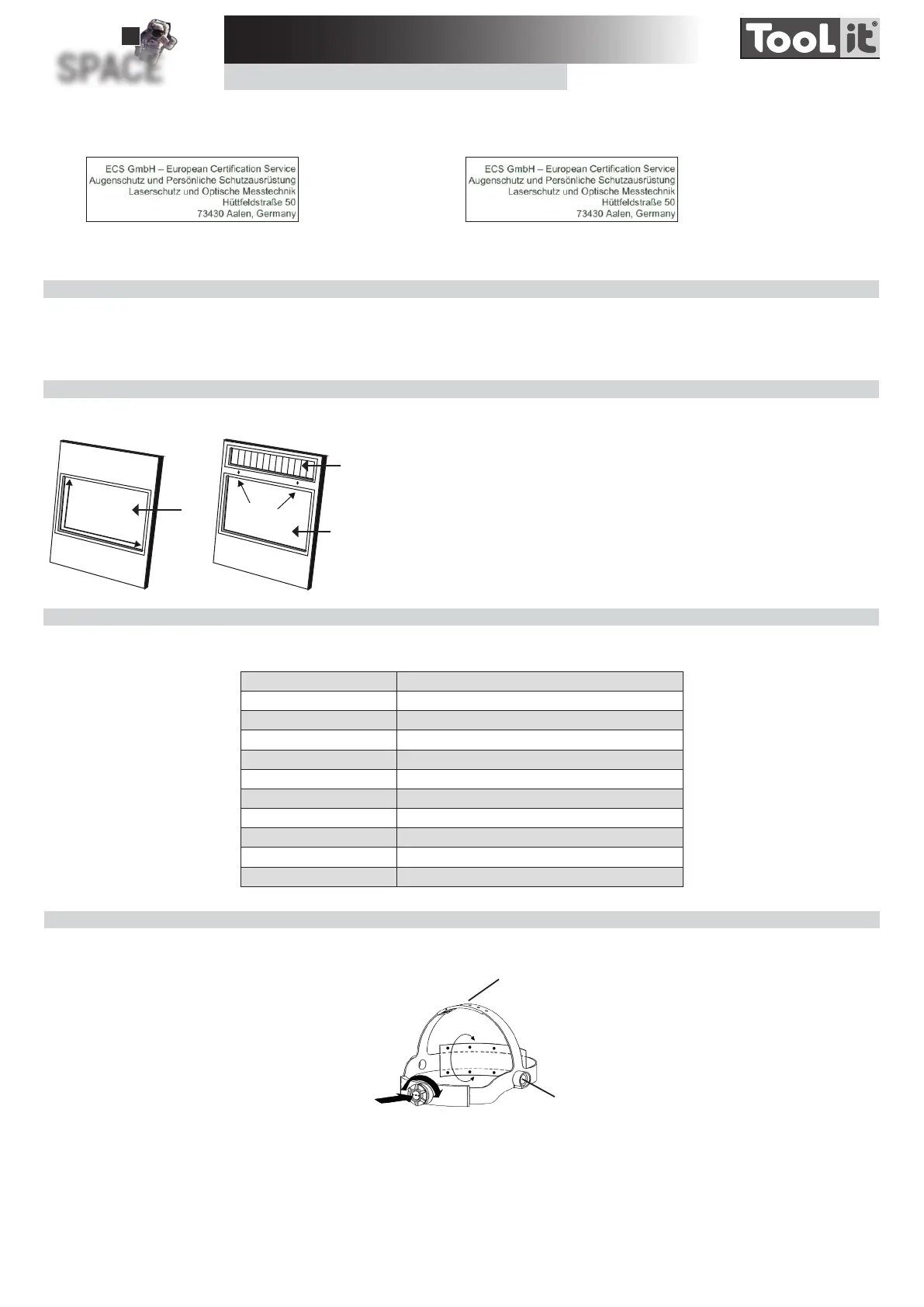

Tool it LCD SPACE 11 TRUE COLOR User Manual

5
11
SPACE
EN
The SPACE 11 mask complies with Regulation (EU) 2016/425 on personal protective equipment. This conrmity is established in compliance with EN 175, EN 166 and EN 379.
Notied bodies / organisations :
Cell :
Welding hood / Protection
screen :
Identication number : 1883 Identication number : 1883
This welding helmet is delivered ready for use. For your protection, please read carrefully these instructions and consult with a qualied instructor prior to operation.
BEFORE WELDING
-Check that the welding helmet is in good condition and headband adjustment.
-Check whether the front cover lens, the front frame and lter are inserted and xed in place. In case of anomalie, please proceed to its reconditionning.
-Make sure that the 2 sensors (4) and the cell (2) are not obstructed by dust or debris.
-Make sure that the protection lms on both screens are removed.
-Check that the protection level matches your welding processes. Please refer to the following chart to help your choice (cf. welding process board)
OPERATION
The SPACE 11 auto-darkening welding helmet switches from light to dark state when a welding arc is struck. The auto-darkening welding helmet switches back to the light
state when the arc stops.
1
98 x 35 mm
4
2
3
1. LCD protection plate
2. Solar cell
3. Filter
4. Sensors
PRECAUTIONS
• The welding helmet is suitable for use with virtually all welding processes except Oxy-Acetylene welding, laser welding and gas welding.
• Standard protective screens must be installed on both inside and outside surfaces of the module. Failure to use protective screens may constitute a safety hazard or result in
irreparable damage to the module.
Clear shade 3
Dark shade 11
Filter dimension 119 x 98 mm
Reaction speed 0,00025 s
Power supply Li-Mn + Solar
Weight 470 g
Field of vision 100 x 49 mm + 2x (67x75 mm)
Applications MMA 10>150 / TIG 10>175 / MIG-MAG 10>200 / Grind
Warranty 2 years
Application temperature -10°C / + 60°C
Storage temperature -20°C / + 70°C
HEADBAND ADJUSTMENT
The SPACE 11 is equipped with a headband which can be adjsuted in multiple ways to suit the welder: width, height (1), longitudinal inclination (3) and adjustment (2).
1
3
2
