III. Parts identifications

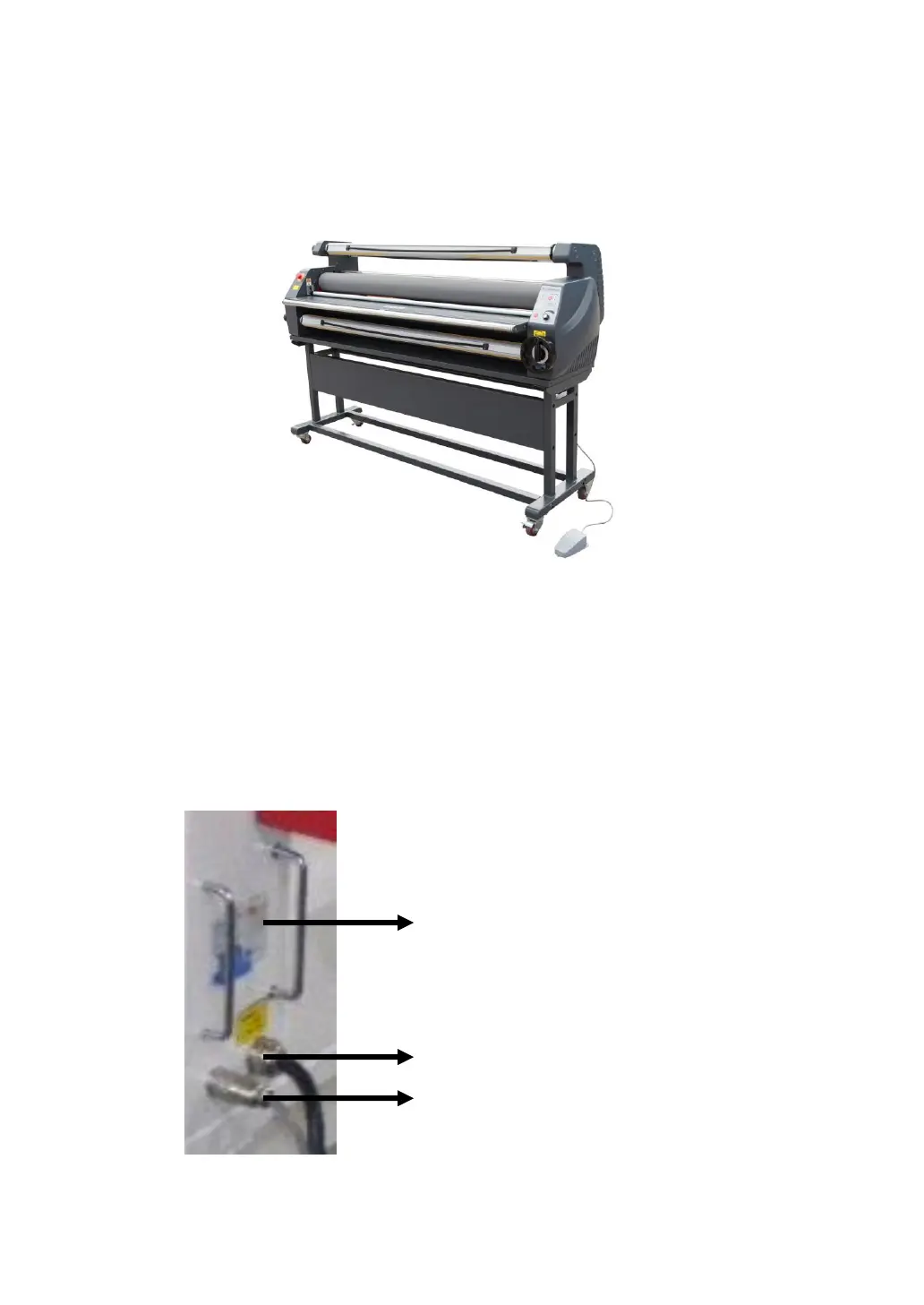

Figure 1
1. Left cabinet 2. Emergent stop 3. Left bracket plate 4. Liner paper roll 5.
Film mandrel 6. roller 7. Right bracket plate 8. Right cabinet 9. In-feed
table 10. Lift knob 11. prints roll 12. Base plate 13. Pedal switch 14.
castor 15. Underframe 16. Damping knob
1. Circuit breaker
2. 2. Power wire
3. Pedal switch plug-in
1
2
3
