ASSEMBLY
5
6
7
8
9

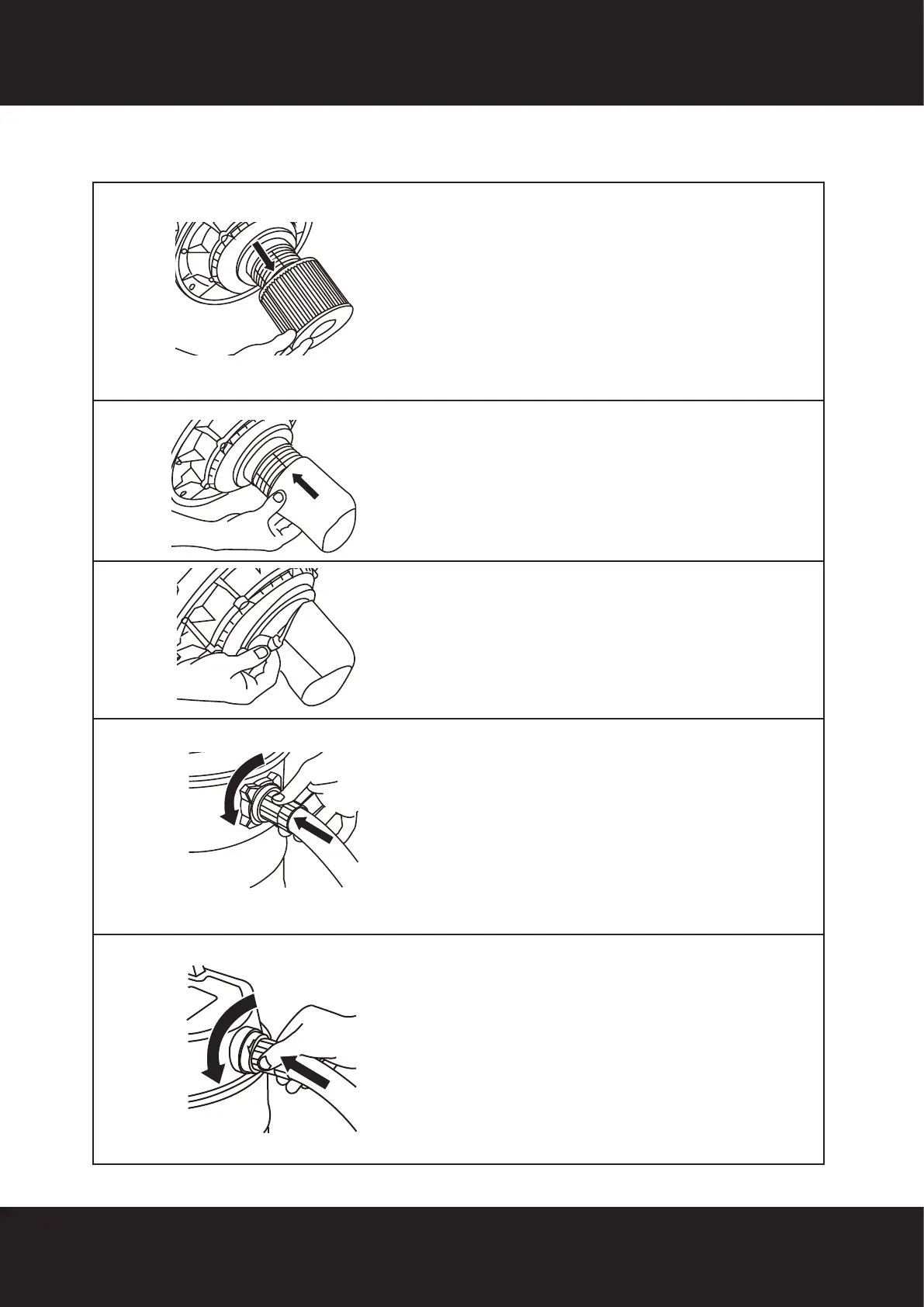

1. Remove the appliance head from the tank by
unlocking the 2 x side locking handles pulling
them outwards, then upwards.
Place the appliance head upside down onto
a at surface, or on its side (if the carry
handle is already assembled).
2. Remove the HEPA lter (installed upon
purchase) by pulling it away from the
appliance head.
Slip the foam lter over the lter basket.
Ensure the foam lter covers the full lter basket.
Re-assemble the appliance head back onto the
tank, and secure the 2 x side locking handles.
Connect the exible hose to the Flexible Hose
Outlet – Suction by inserting into the outlet and
aligning the arrow and locking pin on the end
of the exible hose, with the arrow and ridge on
the top of the Flexible Hose Outlet – Suction.
This should ensure the locking pin on the
exible hose aligns with the ridge in the Flexible
Hose Outlet – Suction. Rotate the exible hose
to the left to secure the hose into position.
Connect the exible hose to the Flexible
Hose Outlet – Blower by inserting into the
outlet and aligning the arrow and locking pin
on the end of the exible hose, with the ridge
on the top of the Flexible Hose Outlet – Blower.
Rotate the exible hose to the left to secure the
hose into position.
