SPECIFICATIONS
360° adjustable air exhaust
Air inlet: 1/4” (6 mm)NPT
Padded hand grip
Max. pressure: 120 PSI
Operating pressure: 70-110 PSI
Nail length: 3/4" to 1-3/4" (19mm-45mm)
Magazine capacity: 120 nails
Nail gauge: 11
ACCESSORIES
3 Hex Keys
Oil Bottle
Fig.1
FUNCTIONAL DESCRIPTION

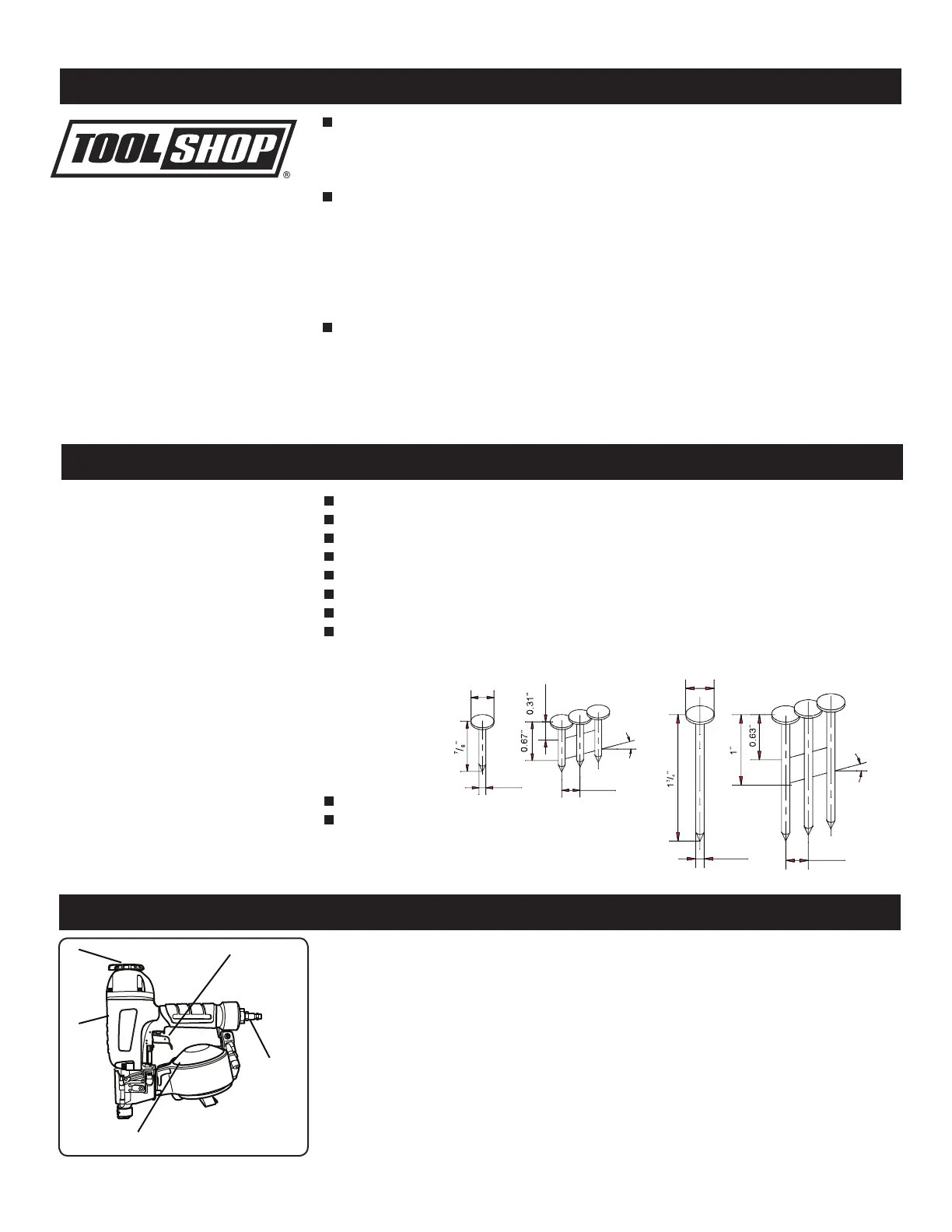

Figure 1 names the major components of the TOOL SHOP 1-3/4” Coil Roofing Nailer
A. Adjustable air exhaust
B. Body
C. Magazine
D. Air plug
E.
Use only a pressure-regulated compressed air source to limit the air pressure
supplied to the tool. The regulated pressure must not exceed 110 PSI. If the
regulator fails, the pressure delivered to the tool must not exceed 120 PSI. The
tool could explode which will cause death or serious personal injury.
Always disconnect air resource:
a) Before making adjustments.
b) When servicing the tool.
c) When clearing a jam.
d) When tool is not in use.
e) When moving to a different work area, as accidental actuation may occur,
causing injury.
Never connect tool to an air source that may exceed 120 PSI. Over pressurizing
the tool may result in bursting, abnormal operation, breakage of the tool or
serious injury to persons. Use only clean, dry, regulated compressed air at the
rated pressure or within the rated pressure range as marked on the tool. Always
verify prior to using the tool that the air source has been adjusted to the rated air
pressure or within the rated air-pressure range.
IMPORTANT SAFETY INSTRUCTIONS
5
Min.
0.39˝
0.12˝
0.31˝
15 -16
o o
15 -16
o o
0.12˝
0.31 ˝
Max.
0.39˝
A
B
D
Trigger
C
E
