CAUTION:
Keep tool pointed in a safe direction at all times.■
Never attempt to drive fasteners into materials too hard to penetrate, at too ■
steep an angle, or too near the edge of the workpiece. The fastener can
ricochet causing personal injury.
Disconnect tool from air supply before doing any disassembly, maintenance, ■
clearing a jammmed fastener, leaving the work area, moving the tool to
another location, or handing the tool to another person.
Clean and inspect the tool daily. Carefully check for proper operation of ■
trigger and safety mechanism. Do not use the tool unless both the trigger and
the safety mechanism are functional, or if the tool is leaking air or needs any
other repair.
!
OPERATING PROCEDURES
LOADING NAILS
7
CAUTION: Do not load with contact safety mechanism or trigger depressed.
!
1.
2. Open the magazine cover. ( Fig.6 )
4. Insert a coil of nails 1 (Fig.7), putting the first nail into the firing chamber 2 (Fig.7)
of the nailer. Close the magazine cover and then close the movable cover.
3. Check the adjuster plate 1 (Fig.6) inside the magazine. Then rotate the adjuster
nut to adjust the platform to match the nail length:
a. the lowest position: 1-1/2” to 1-3/4” long nails
b. the middle position: 1-1/4” long nails
c. the upper position: 3/4” to 1” long nails
Push down on the latch 1 (Fig.4), swing the latch 1 (Fig.5), then open the
movable cover 2 (Fig.4).

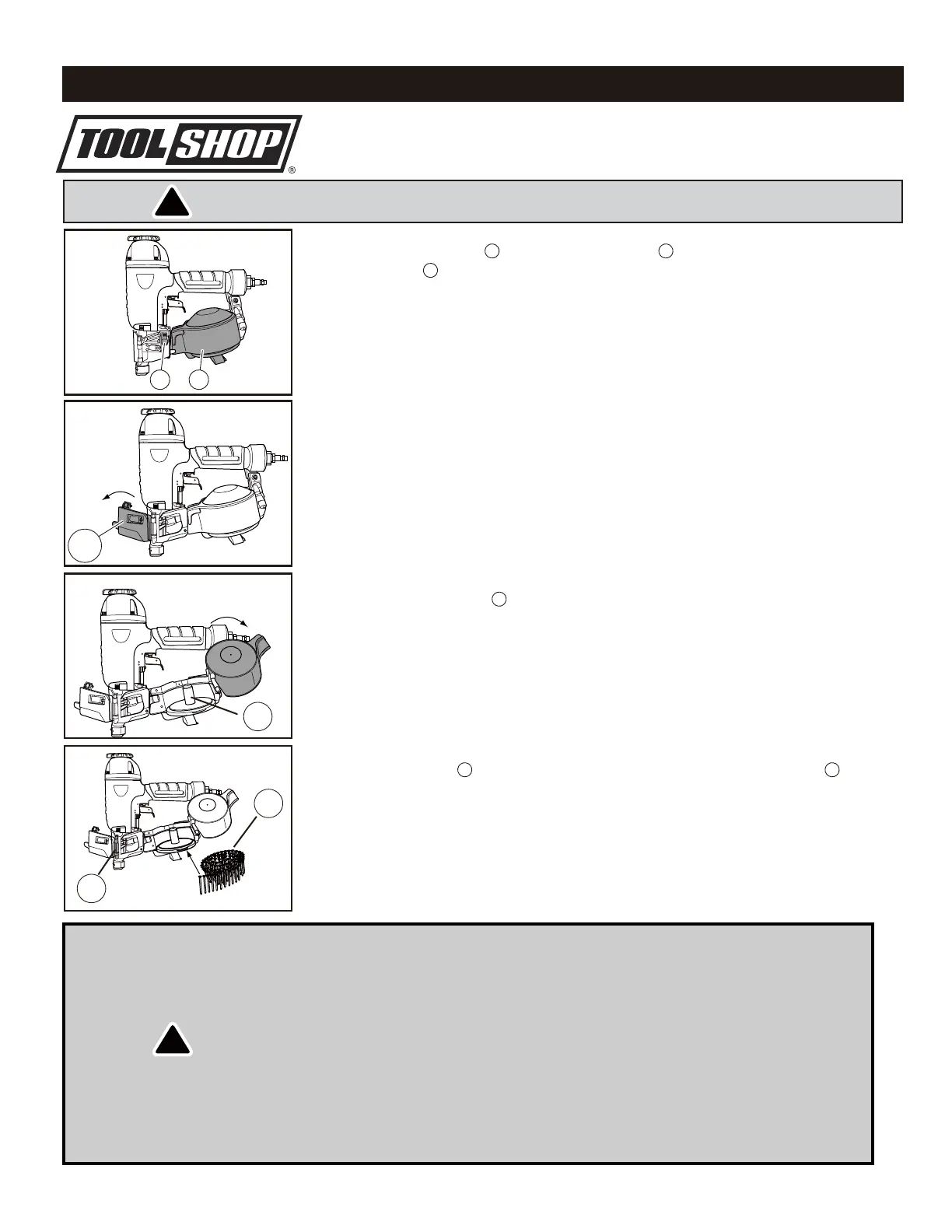

O P ER A TIN G TH E TO O L
Fig.4
1 2
1
Fig.5
Fig.6
1
Fig.7
1
2
To Next Page
