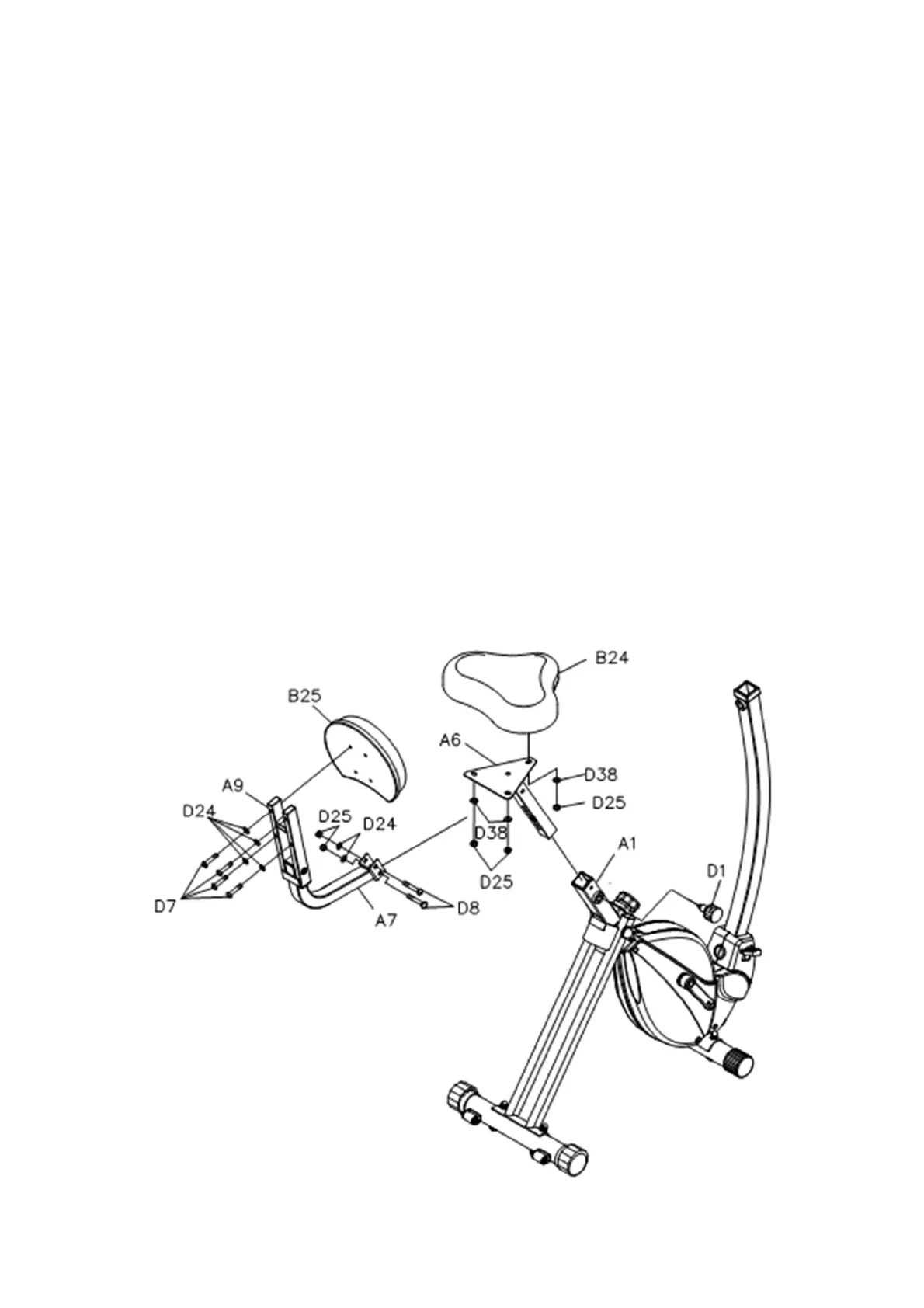

STEP 4: Attach the Seat (B24) to the Seat Post (A6) with Nylock Nuts (M8) (D25) and Washer
(M8) (D38). Insert the Seat Post (A6) into the Main Frame (A1) and secure with the
Adjustment Knob (D1).
NOTE:
1. Make sure that the pin on the Adjustment Knob (D1) is inserted into one of the holes in Seat
Post (A6).
2. The Adjustment Knob (D1) should be screwed in tight to make the Seat Post (A6) fit securely
in the Main Frame (A1).
STEP 5: Attach the Back Frame (A7) and Seat Post (A6) by using Carriage Bolt (M8*1.25*48mm)
(D8) and Washer (M8) (D24).
STEP 6: Attach the Back Cushion (B25) and Back Support (A9) by using Button Head Bolt
(M8*40) (D7) and Washer (M8) (D24).
