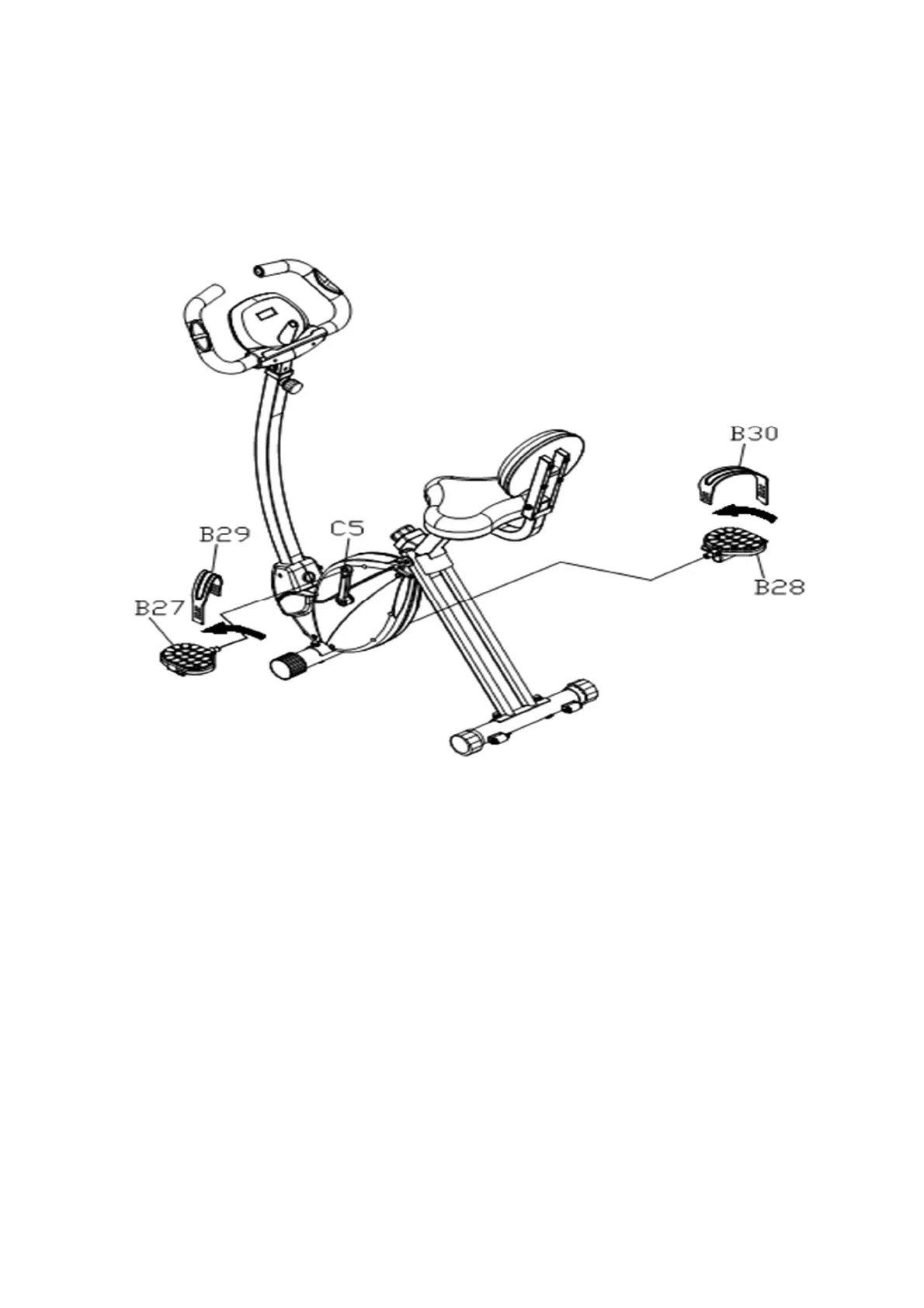

STEP9: Tighten the Left
Strap (B29) and Right Strap (B30) to the Left Pedal (B27) and Right Pedal
(B28).
Lock and tight the Left Pedal (B27) and Right Pedal (B28) on the Left Crank (C5)
and Right Crank (C6) by using the Wrench.
FUNCTION INSPECTION:
Visually inspect the Bike to verify that assembly is as shown in the above illustration.
Check the function of the Bike by turning the c rank s lowly through one complete revolution to
verify that the drive train functions properly. Adjust the Adjustment Knob (33) and verify that it
functions properly and the resistance changes.
