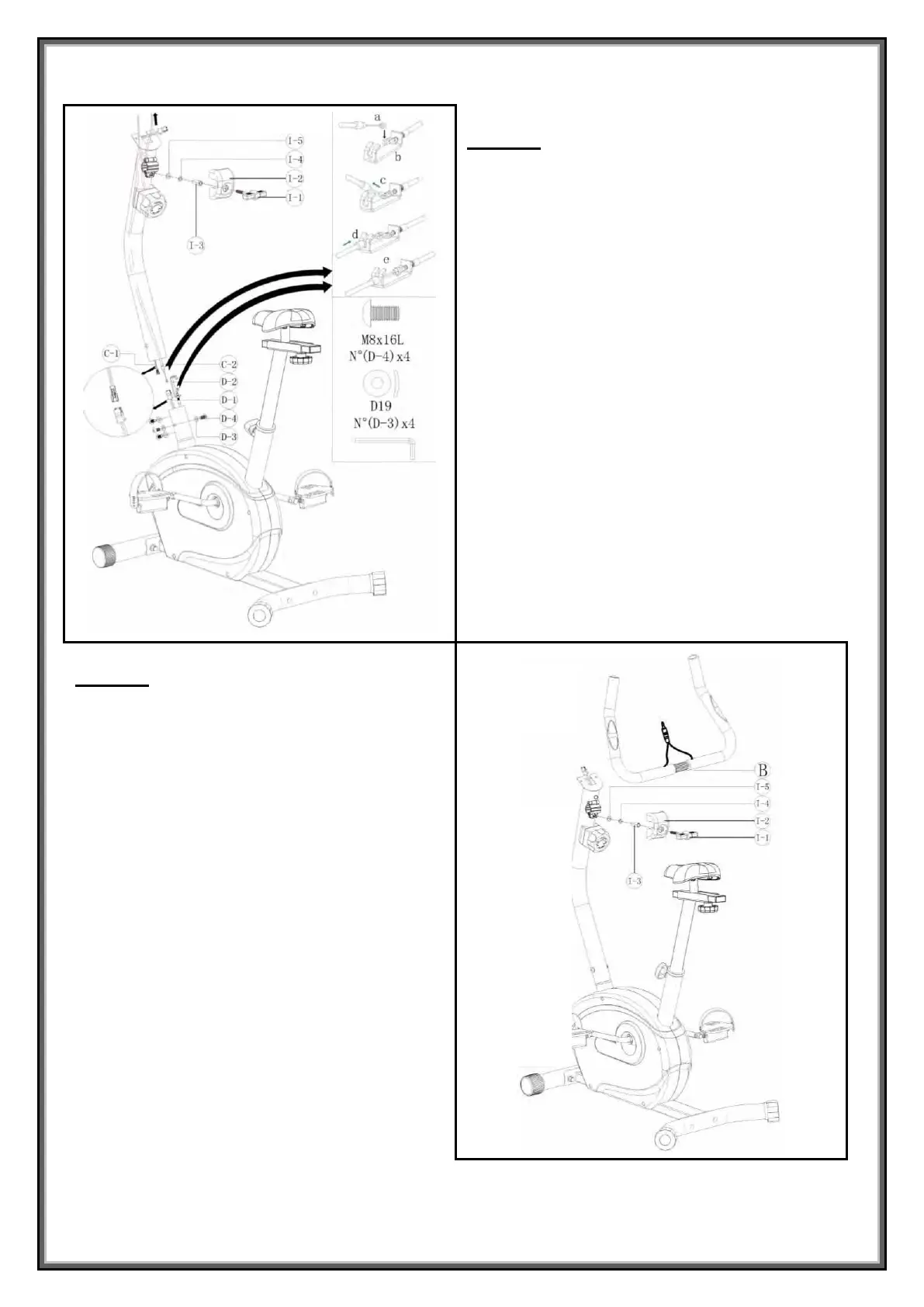

Step 4
Loosen the four screws (D-4) and four flat
washer (D-3) on the support tube of handle
bar post.
Insert the handle bar post onto the support
tube, connect the tension control cable upper
& lower (C-2) & (D-2), connect the sensor
cable upper & lower (C-1) & (D-1), fix the
handle bar post with four screws and
washers.
Step 5
Attach the handlebar (B) to the handlebar
post between the steel covers, insert the
hand pulse through the hole on hanle bar
post, assemble the plastic cover (I-2) over
the steel cover, secure the steel cover
assembly using one flat washer (I-5), one
spring washer (I-4), one bushing (I-3) and
one T-knob (I-1).
