ASSEMBLY INSTRUCTION

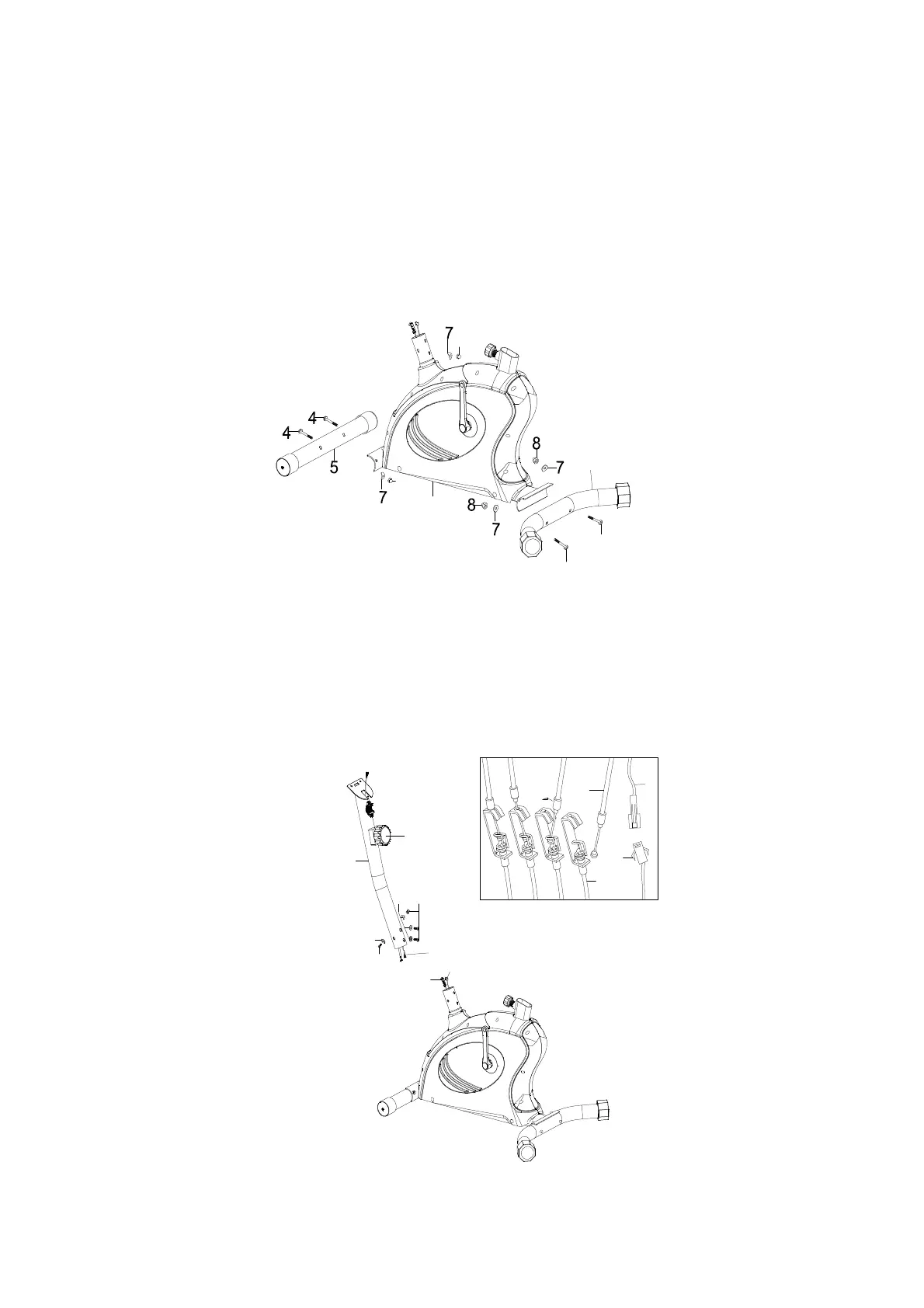

STEP 1
(a) Attach front stabilizer (5) to main frame (1), tighten with 2 sets of carriage bolt (4), curve
washer (7) and domed nut (8).
(b) Then, attach rear stabilizer (2) to main frame (1), tighten with 2 sets of carriage bolt (4),
curve washer (7) and domed nut (8).
STEP 2
(a) Take front post (12) and connect middle sensor wire (14) with lower sensor wire (65).
(b) Adjust the tension control knob (13) to level 8, then connect it with the lower tension cable
(32). Insert front post (12) into main frame (1) and tighten with 4 sets of allen screw (10)
and curve washer (7).
