6. OPERATION

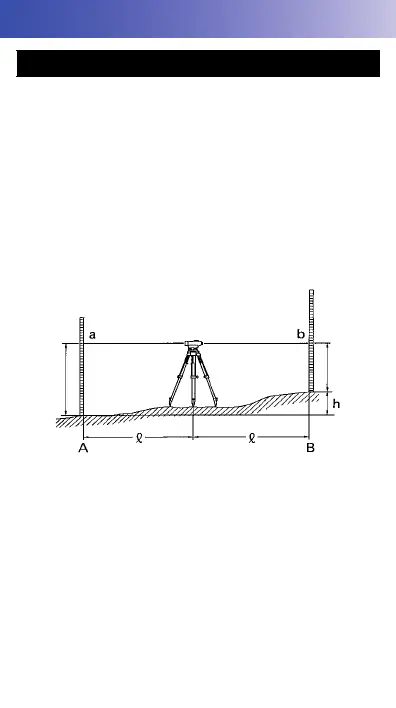

1 Set up the instrument at a point approximately
halfway between points A and B. The reticle stadia
lines can be used to optically compare the
distances. (See "6.3 MEASURING DISTANCE
USING THE STADIA LINES".)
$
• For more accurate measurement, set the instrument
as close to halfway as possible, to eliminate errors
due to sighting axis misalignment.
2 Position the staff vertically at point A.
Take the reading a (backsight) on the staff at point
A.
3 Then sight the staff at point B and obtain the
reading b (foresight).
4 The difference a - b is the height difference h of B
from A.
Example:
h = a - b = 1.735m - 1.224m = 0.511m
