ASSEMBLY PROCEDURE
ASSEMBLY PROCEDURE

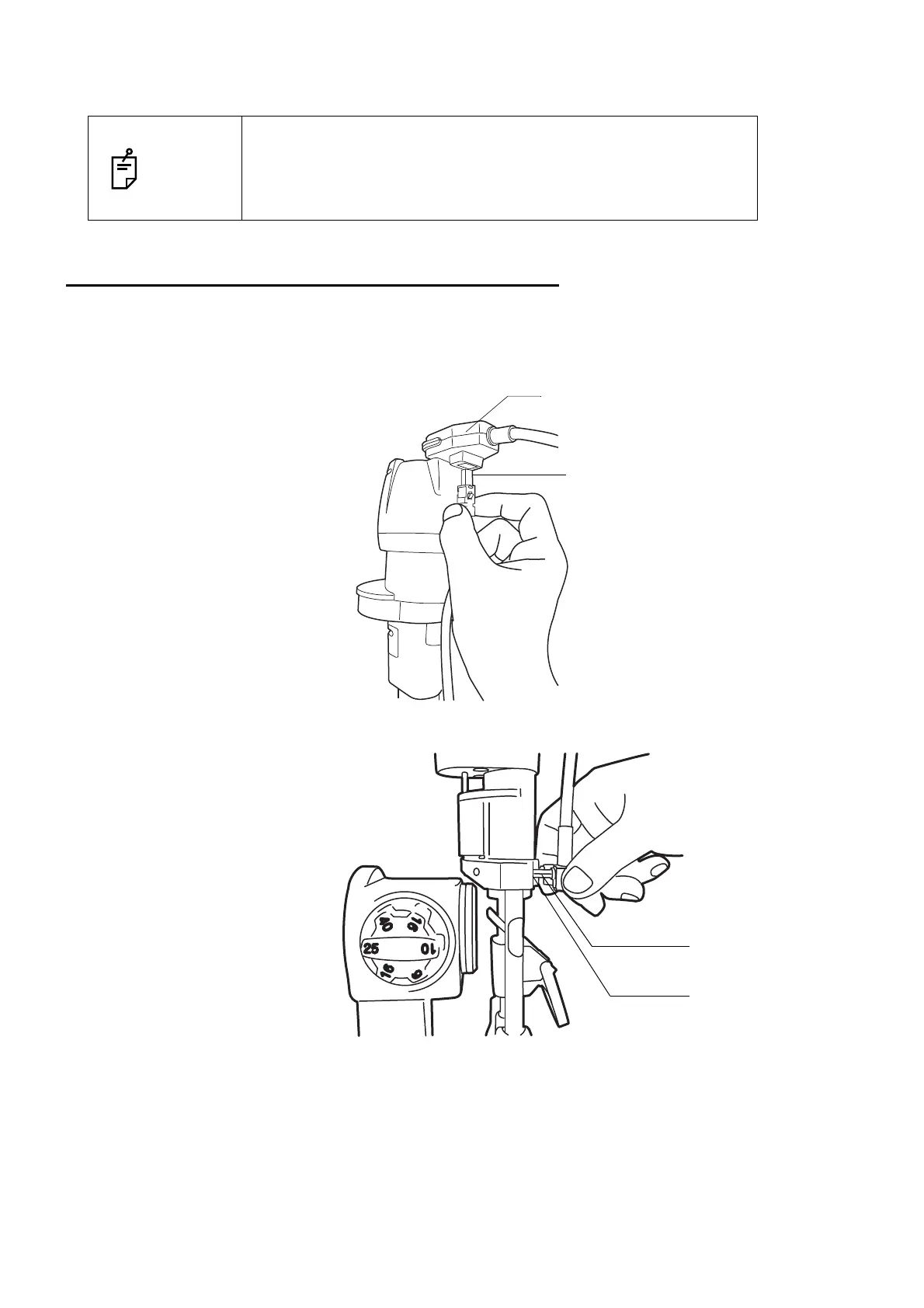

MOUNTING THE BACKGROUND ILLUMINATION
1 Make sure that the power switch of the slit lamp is OFF.
2 Connect the power connector of BG-5 to the plug of the slit lamp's illumination unit.
3 Insert the two pins of BG-5 into the guide hole of the slit lamp until they stop.
NOTES
• Be careful not to stain the lens with fingerprint or dust. The opti-
cal performance may be damaged.
• For the component names of slit lamp, refer to the instruction
manual of your slit lamp.
