103
5 PROGRAM MODE
5.5
AP-L1A Communication Emulator
With IS Series, it is possible to e
x
ecute AP-L1A communication emulation.
Set up for use of remote control system is also done here.
5.5.1
Activate AP-L1A comm
unication Emulator
1

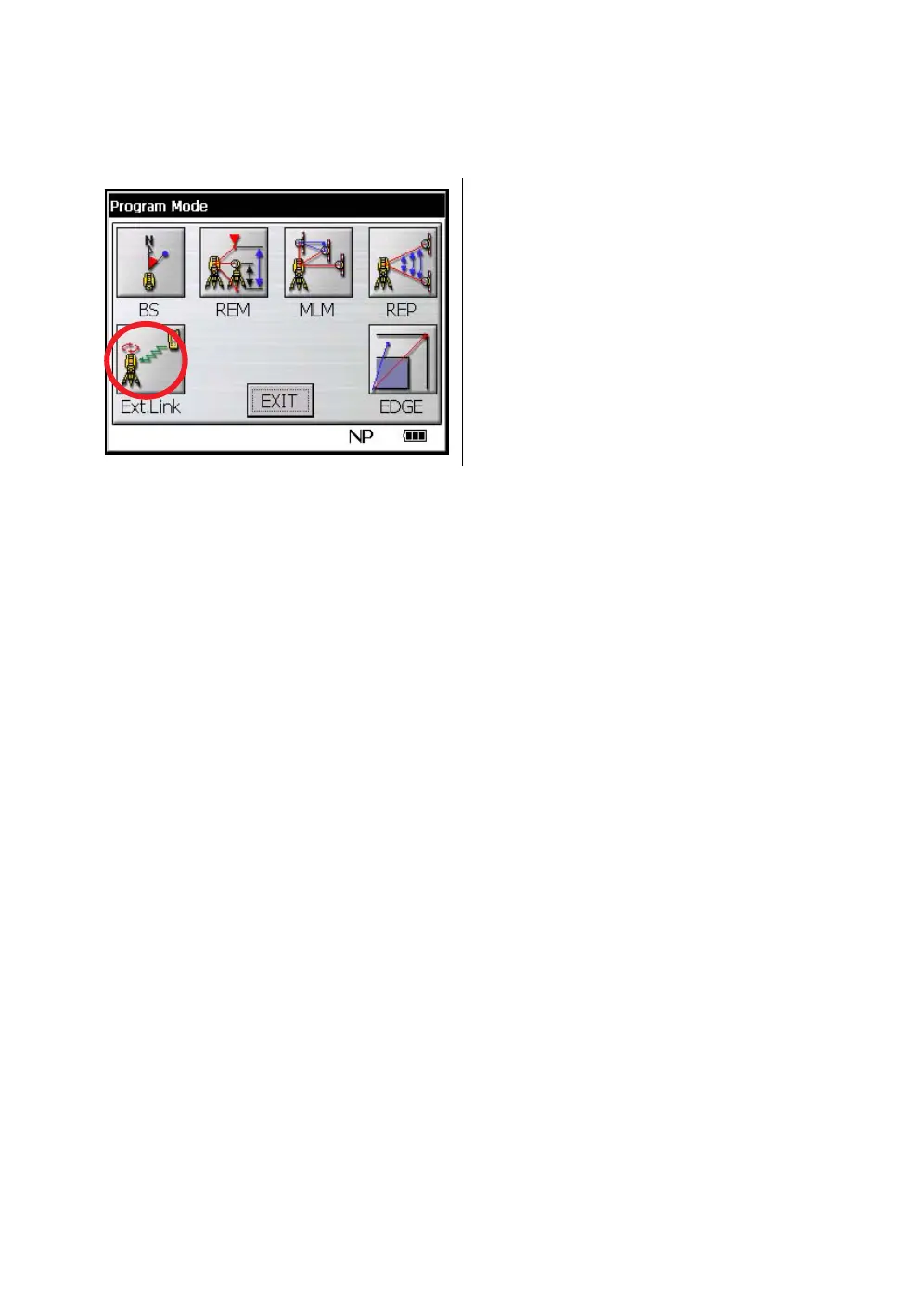

Press the [Ext.Link] icon.
AP-L1A Communication Emulator progr
am
[Ext.Link] will activate
.
