Topcon Liquid Systems CM-40 - Flowmeter Setup

Setup Guide TOPCON Apollo FSO - Single Liquid - Section Control
Doc. No. MAN0034 P 14 / 28
Revision. A Rev. Date 18/01/2022

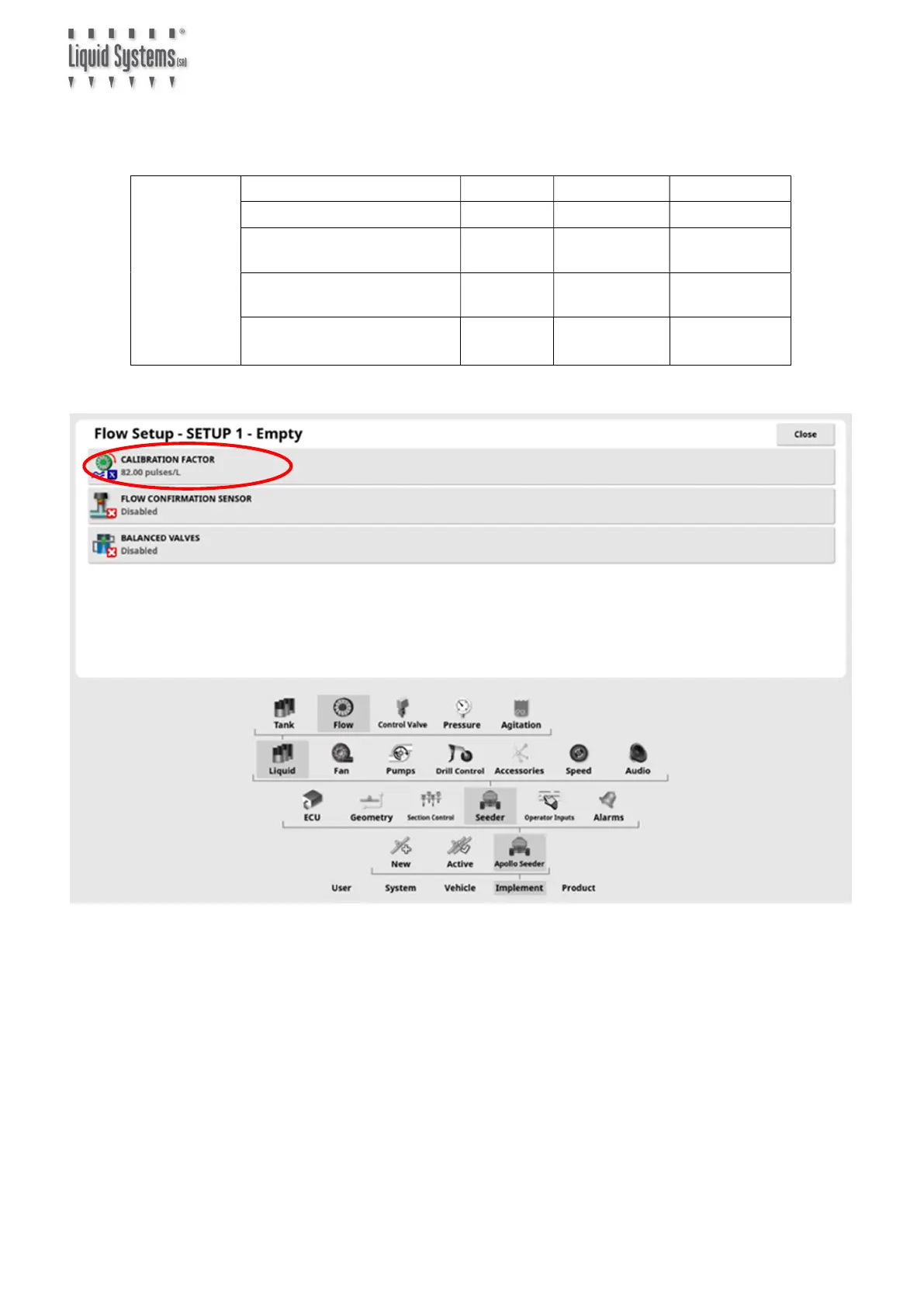

Select Flow icon to edit Flowmeter setup. Press Calibration Factor icon and enter
appropriate calibration factor for the type of flow meter from the table below
Flowmeter
Calibration
Factor
Flowmeter Type Pulses/Litre Pulses/Ga (US) Pulses/Ga (Imp)
TeeJet 801 82 310 373
ARAG Orion2 0.5-10 L/min
0.13-2.6 US GPM
6,000 22,710 27,277
ARAG Orion2 1-20 L/min
0.3-5.0 US GPM
3000 11,355 13,638
ARAG Orion2 2.5-50 L/min
0.6-13.0 US GPM
1,200 4,542 5,455
