Setup Guide TOPCON Apollo FSO - Single Liquid - Section Control
Doc. No. MAN0034 P 17 / 28
Revision. A Rev. Date 18/01/2022

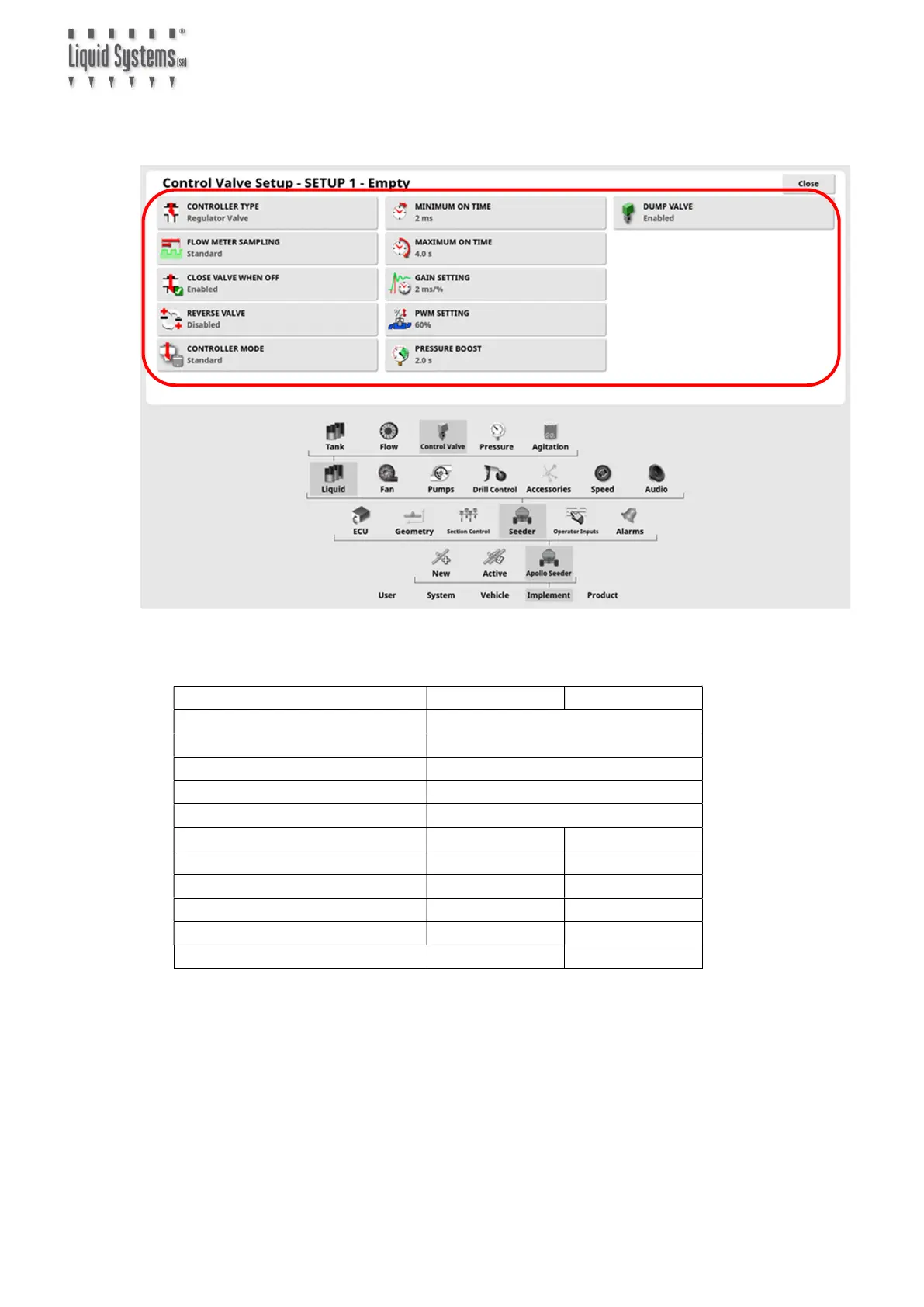

Select Control Valve icon to edit control valve setup.
Enter the following values into each setting.
SETTING LQS70/120/180
LQS20
CONTROLLER TYPE Regulator Valve
FLOW METER SAMPLING Standard
CLOSE VALVE WHEN OFF Enabled
REVERSE VALVE Disabled
DUMP VALVE Standard
CONTROLLER MODE Standard DICKEY-john
MINIMUM ON TIME 2 ms 4 ms
MAXIMUM ON TIME 4 s 48 s
GAIN SETTING 2 ms/% 1.6 ms/%
PWM SETTING 60 % 45 %
PRESSURE BOOST 2.0s 1.0s
Note: Minimum & Maximum on Time, Gain & PWM settings can
be adjusted later to improve control if required.
