Setup Guide TOPCON Apollo FSO - Single Liquid - Section Control
Doc. No. MAN0034 P 23 / 28
Revision. A Rev. Date 18/01/2022

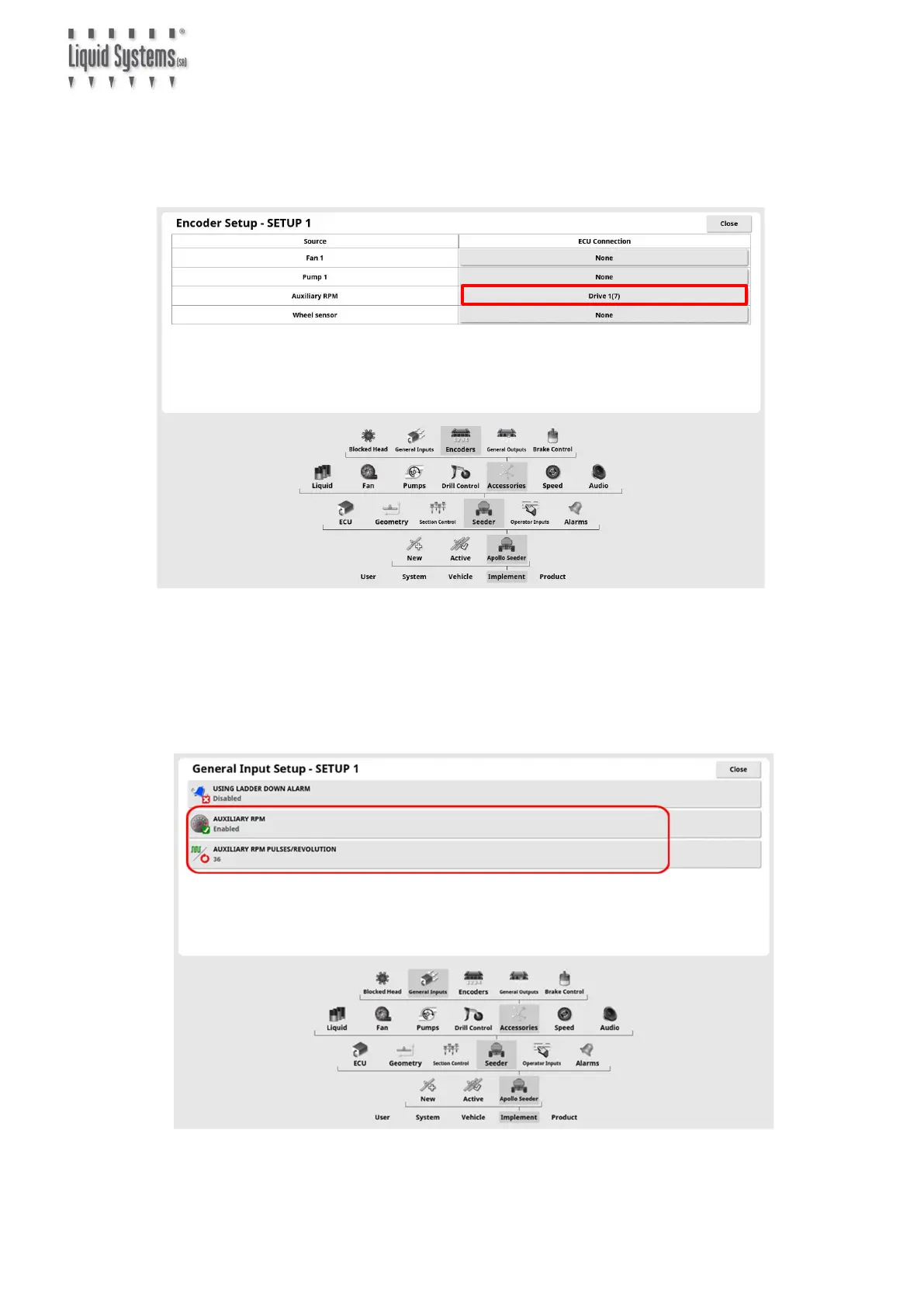

AUXILIARY RPM Setup
If no Pump Encoder Source is available setup an Auxiliary RPM Encoder with the
following steps. Map Auxiliary RPM Source to Drive connected to liquid tank.
Enable Auxiliary RPM on General Inputs page and enter calibration factor:
PULSES/REVOLUTION: 36 (30 for LQS20 module)
