Topcon X30 Manual

- Connects X30 to power, bridge ECU, GPS
Signal, remote steer engage ( if equipped with
Topcon)
- Bourgault Part Number 3132-12-01
- Topcon Harness AGA5072

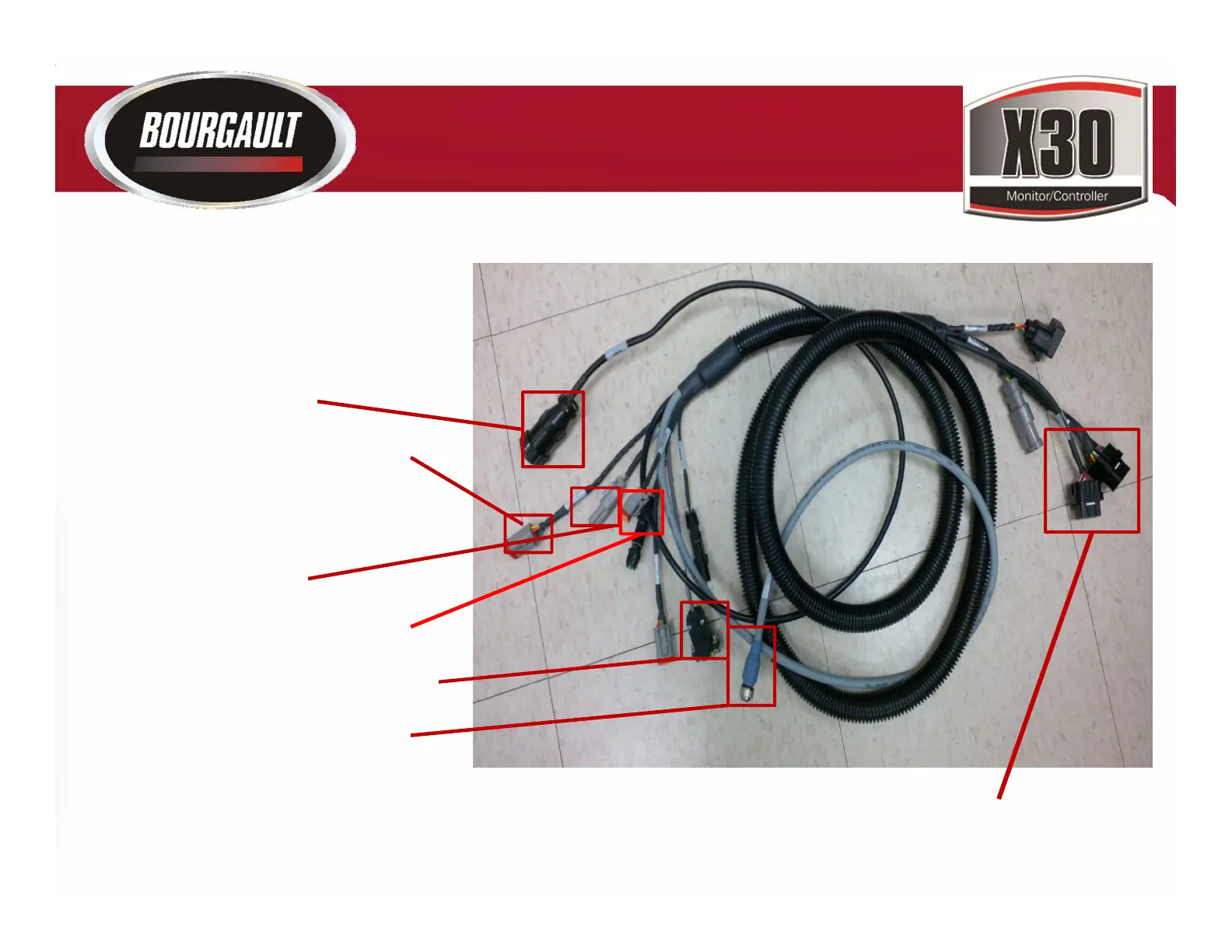

X30 Main Harness
Hooks to main battery cable.
CAN 1 to the ISO bridge through the Can
harness
ENGAGE wire Hooks to the ISO bridge
adapter cable AGA4885
Switched power connects to terminator
Harness AGA4678
COM 2 hooks to outside receiver for GPS
COM 1 Hooks to GPS adapter cable
AGA4219 for connection to outside receiver
for GPS
NOTE; GPS can be brought in though either COM 1 or Com 2
Also the can 2, remote mapping and radar plugs are not used.
Power and communication plugs that
hook to the back of the X30
