Topdon BT20 - Advanced Monitoring and Report Access; Understanding Voltage Waveforms; Accessing Test Reports

⑤
Unloaded Voltage: The voltage measured when turning off
the on-board electrical appliances
⑥
Ripple: A vehicle's battery operates on one-way direct current
(DC) electricity, while alternators output alternating current
(AC) electricity. In this process, the power needs to go through
the diode rectier to turn into a direct current - that's when
the ripple occurs
⑦
Tap Save to save the test result to your mobile device as an
⑧
Tap Share to share the test result with your coworkers or
clients
Real-Time Voltage

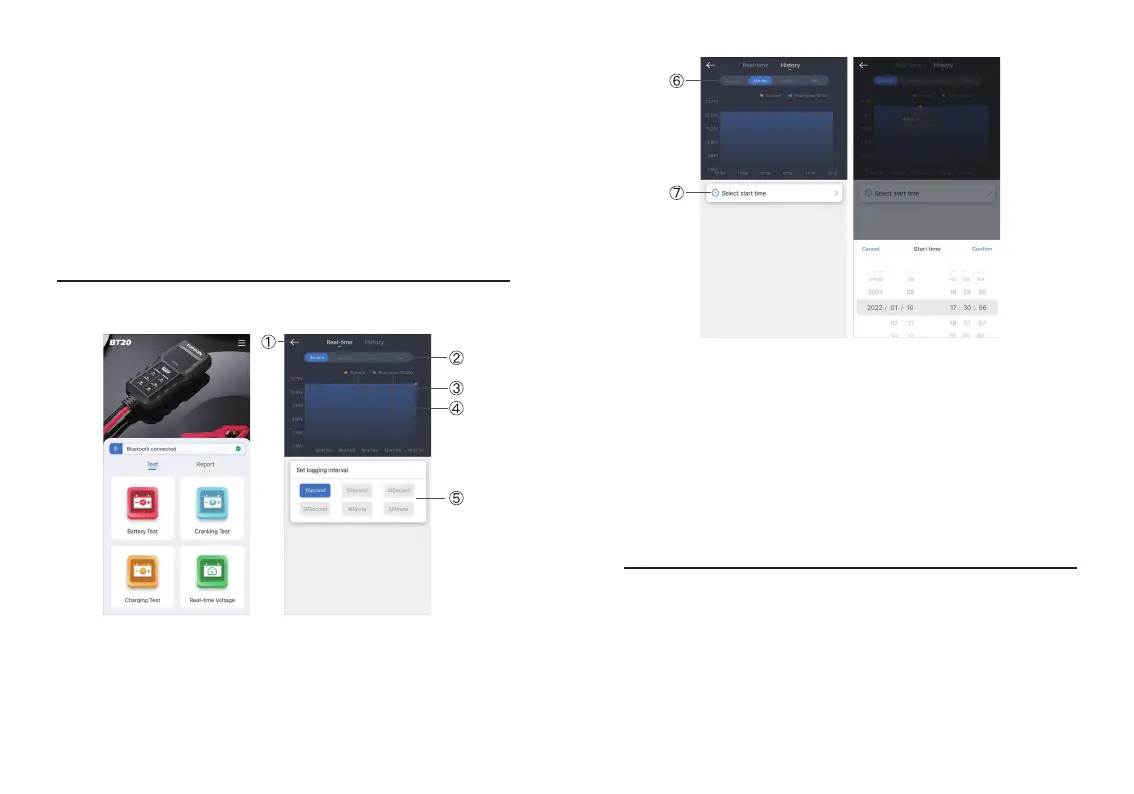

Select Real-Time Voltage. You can check the real-time voltage
and the recorded voltage waveforms.
Figure 5.7.1 Figure 5.7
.
2
Figure 5.7.3 Figure 5.7
.
4
①
Back
②
Display the real-time voltage by a certain time interval (second/
minute/hour/day)
③
Current Voltage: The voltage at a selected moment on the
waveform
④
Real-Time Voltage
⑤
Selects the time interval of recording the voltage values
⑥
Displays the recorded voltage by a certain time interval
(second/minute/hour/day)
⑦
Sets the start time of the recorded voltage waveforms
Check Test Reports
Tap Report on the Home Page. The test reports will be displayed
by timeline, including battery test, cranking test, and charging
test reports.
Select and tap one of the reports to enter the detailed report
page.
EN I 21EN I 20
