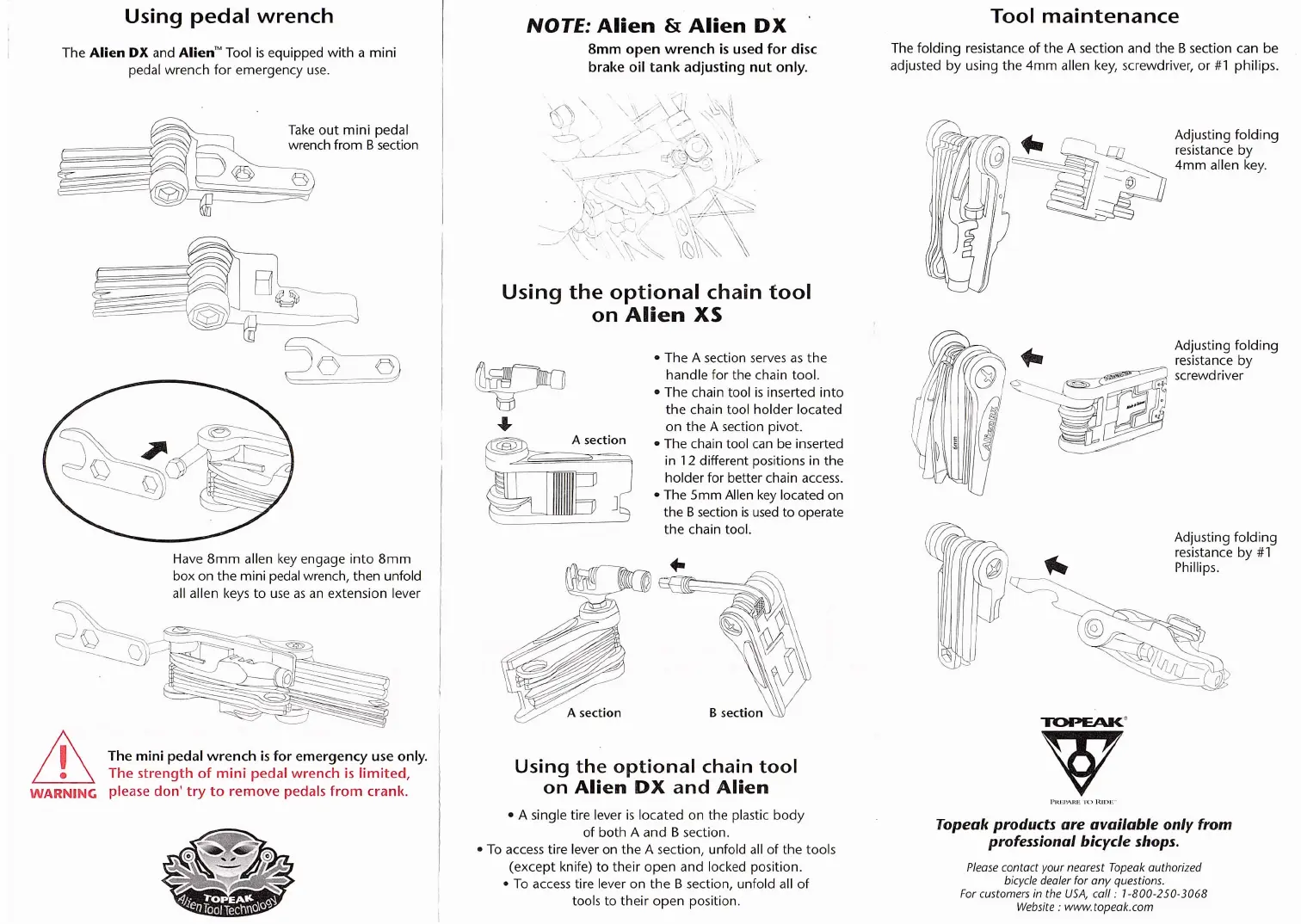

Using pedal wrench
The Alien DX and Alien" Tool is equipped with a mini
pedal wrench for emergency use.
Have smm allen tey engage into smm
box on the mini pedal wrench, then unfold
all allen keys to use as an extension lever
AThe mini pedal wrench is for emergency use only.
The strength of mini pedal wrench is limited,
wARNiNG please don' try to remove pedals from crank.
NOTE.. Alien & Alien DX
smm open wrench is used for disc
brake oil tank adjusting nut only.
\.e\... '.. ,,*t,.S\\l
` -\-> - j-:\--- ::jg;;;I;'r;\
LL±_C--+---- '=_,^iT.7-\`\ `-_-z, l l l
\\
`-=.-::-:::j , \:\,::: \\\ /\,+=/l/
\ IT_)`\J /
Using the optional chain tooI
on Alien XS
• The A section serves as the
handle forthe chain tool.
• The chain tool is inserted into
the chain tool holder located
on the A section pivot.
• The chain tool can be inserted
in l 2 different positions in the
holder for better chain access.
• The 5mm Allen key located on
the B section is used to operate
the chain tool.
Using the optional chain tool
on Alien DX and Alien
• A single tire lever is located on the plastic body
of both A and B section.
• To access tire leveron the Asection, unfold all ofthe tools
(except knife) to their open and locked position.
• To access tire lever on the B section, unfold all of
tools to their open position.
Tool maintenance
The folding resistance of the A section and the B section can be
adjusted by using the 4mm allen key, screwdriver, or #l philips.
*
Adjusting folding
resistance by
4mm allen key.
Adjusting folding
resistance by
screwd river
Adjusting folding
resistance by #l
Phillips.
W®
PKL=l'^T\B IO lul>L-: -
Topeak products are available only from
professional bicycle sl.ops.
Please contact your nearest Topeak ciuthorized
bicycle dealer for any questions.
for customers in the USA, call : 1-80O-250-3068
Website : \^i\M^/.topeak.com
