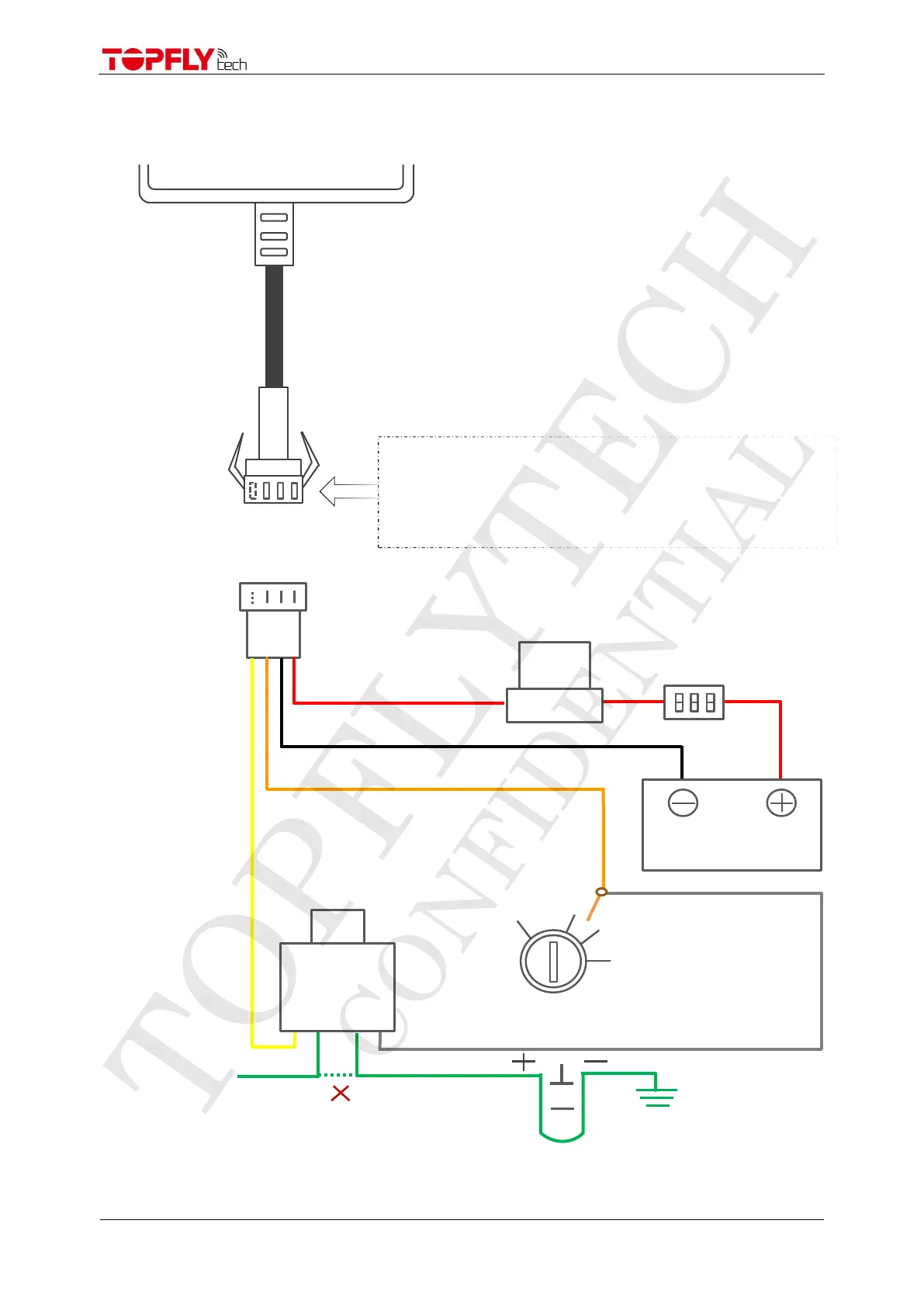

Quick Reference of Connection Diagram
T8808
Please note:
Model T8808-A (with Fuel cut)
There are four pin (Yellow, Orange, Black, Red) in the Power line.
Model T8808-B (without Fuel cut)
There are three pin (Orange, Black, Red) in the Power line.
Please note:
Only Model T8808-A
has this Yellow line.
(Fuel cut)
Storage Battery
12V or 24V
To Next Page
