TOPVERT G1/H1/P1 Series
E-2

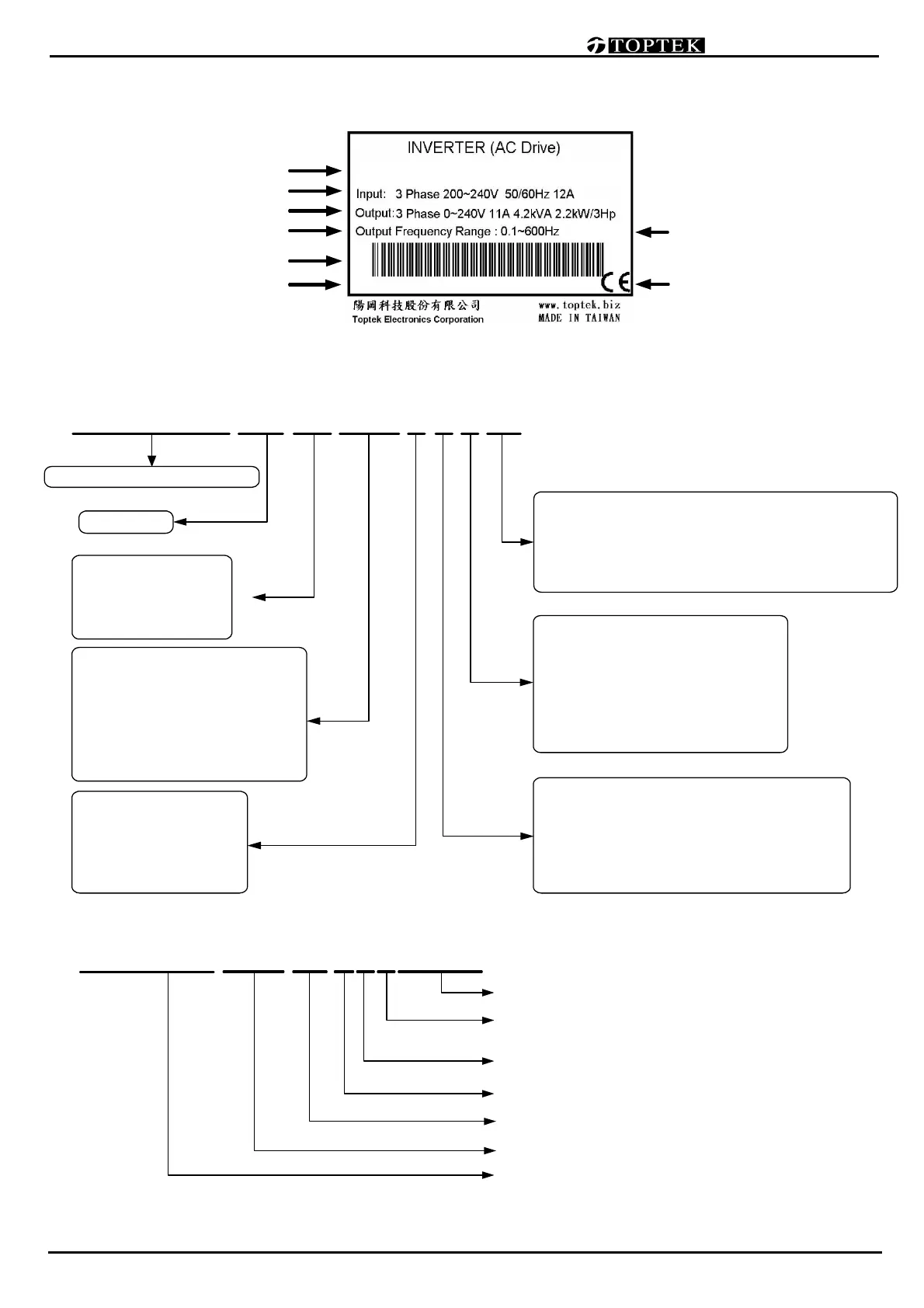

Nameplate Information
Example for G1 series, 3HP/2.2kW 230V 3-Phase,a speed feedback PG card equipped.
Model Explanation
Explanation of Production control data
 Please contact the dealers immediately if any discrepancy occurred.
Firmware version : 3.08
Input Specifications
Output Specifications
Barcode
Production control data
Output Frequency Range
Model number
CE certification
G1-232P2-D101-08 T0509001
Model:TOPVERT G1-232P2-D101
(FRN:3.08)
Production Month: 1~9 = Jan. to Sep.
O=Oct. N=Nov. D=Dec.
Production Year: 0~9=2010~2019
Production Factory: T = Taiwan factory
Option Code or custom-made code
Model: G1 series, 230V 3 Phase 2.2kW / 3Hp
Motor V/F selecting Preset (Pr0-02)
Production Number
G1 - 232P2-xxxx-08 T 0 5 09001
Applicable Motor (4 Pole)
(Base on 230V,380V,575V)
0P4= 0.4kW 0P7= 0.75kW
2P2= 2.2kW 5P5= 5.5kW
7P5= 7.5kW 011= 11kW
022= 22kW 075= 75kW
160= 160kW 630= 630kW
Toptek’ s AC drive family
AC Power source
21= 230V 1 Phase
23= 230V 3 Phase
43= 460V 3 Phase
63= 575V 3 Phase
G1 series
Hardware version
Blank: original version
A: version A
B: version B
Z: version Z
Brake chopper option
Blank or N : Brake chopper not include
D: Brake chopper built-in
**Brake chopper as standard equipped in
Fram e code A & B
Extension, Interface cards & other option
Blank or N : no option
01 :TEK-PG-01 speed feedback card equipped
02 :PU-02 equipped
03 :PU-03 equipped
Enclosure Protection
Blank or N : Standard
0 : IP 00 ( NEMA 0)
1 : IP 20 ( NEMA 1)
2 : IP 21 ( NEMA 4)
**IP 20 (NEMA 1) as standard In
Fram e code A , B & C
TOPVERT G1-23 2P2 x-x x xx
