Torbal ATN60A - Completing Chamber and Pan Installation; Final Chamber and Pan Setup

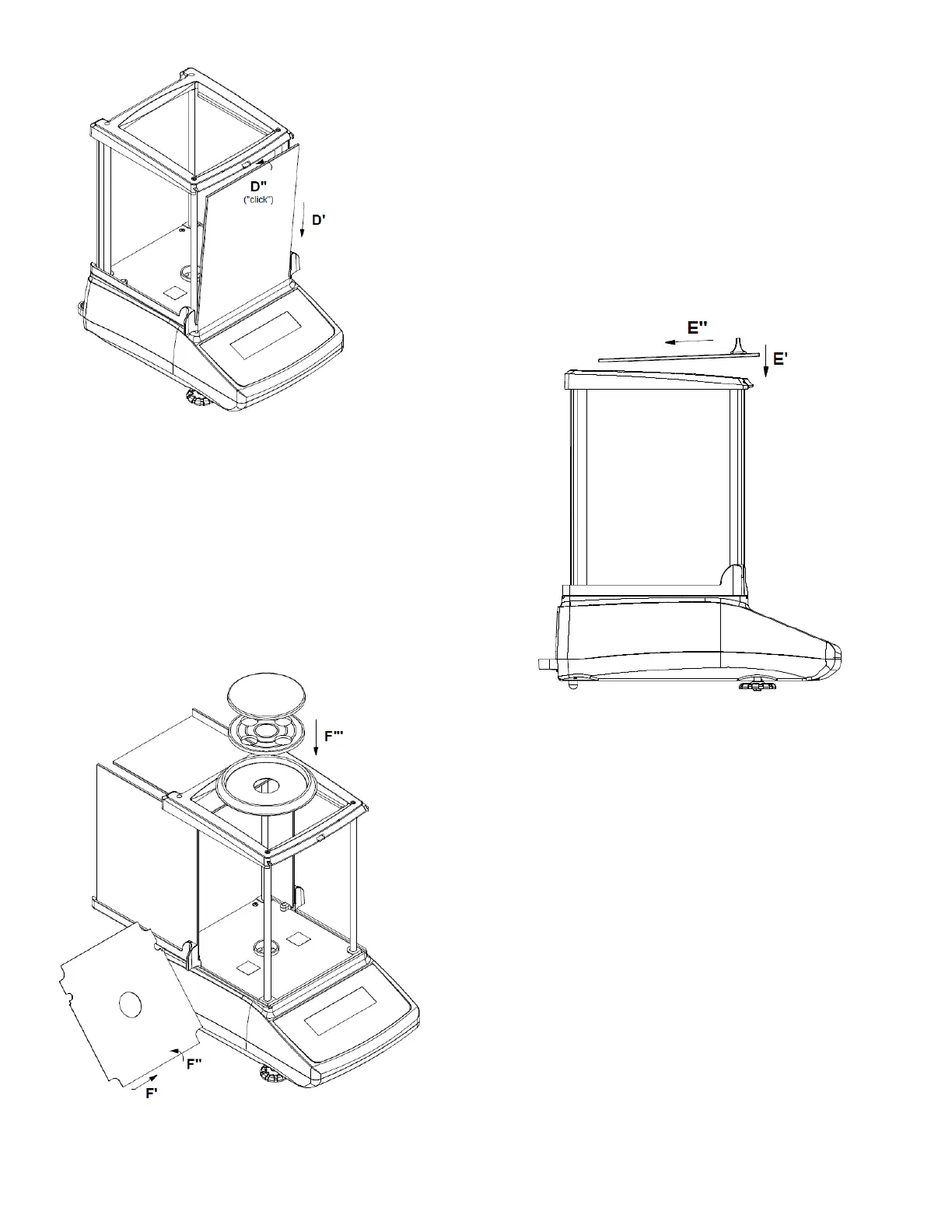

6. Install the front-chamber glass by
inserting the bottom edge into the
scale housing (D’) and securing the top
edge in the chamber top frame (D’’).
7. Insert the top chamber glass access
door by sliding in the rear edge of the
glass onto the chamber top frame. (E’)
8. Install the chamber base (F’) on the top of the scale’s
housing.
9. Once the chamber bases in place, install the draft ring,
pan support and the pan (F’’’).
