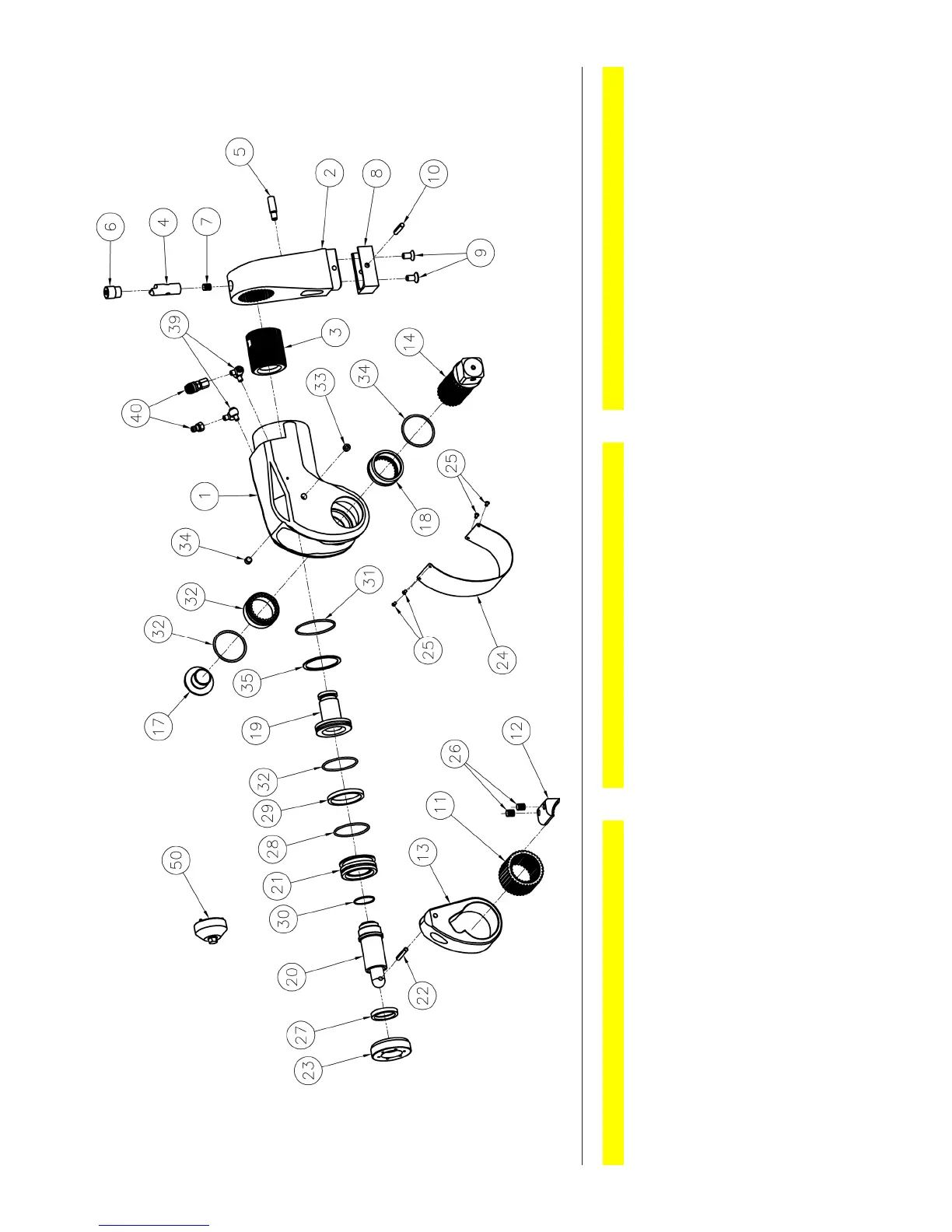

TU-60 Series Wrench

ITEM

NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.

1 Housing TU-60-01 1 14 Square Drive TU-60-11-1 1 29 Piston U-cup Seal TU-60-33 1

2 Reaction Arm TU-60-03-1 1 17 Sq. Dr. Retaining Knob TU-60-11-6 1 30 Piston Inner Seal TU-60-34 1

3 Spline Sleeve TU-60-03-2 1 18 Sq. Drive Sleeve TU-60-13 2 31 Gland Seal TU-60-35 1

4 Locking Pin TU-60-03-3 1 19 End Plug TU-60-15 1 32 End Plug Seal TU-60-37 1

5 Retract Button TU-60-03-4 1 20 Piston Rod Assembly TU-60-17 1 33 Housing Side Plug TU-60-39 2

6 Reaction Arm Screw TU-60-03-5 1 21 Piston TU-60-17-5 1 34 Sleeve Retaining Ring TU-60-41 2

7 Reaction Arm Spring TU-60-03-6 1 22 Roll Pin TU-60-19 1 35 Cylinder Ring TU-60-43 1

8 Reaction Arm Cover TU-60-03-7 1 23 Cylinder Gland TU-60-21 1 39 Swivel Set STU-8M-4M 2

9 Cover Screws TU-60-03-8 2 24 Shroud TU-60-23 1 40 Coupler Set HC-S-100 1

10 Cover Roll Pin TU-60-03-9 1 25 Shroud Screws TU-60-25 4 50 Gland Wrench TU-60-GW

11 Ratchet TU-60-05 1 26 Drive Segment Spring TU-60-27 2

Drive Segment

TU-60-07 1 27 Rod Seal TU-60-31 1 Reaction Arm Assembly TU-60-03

13 Drive Plate TU-60-09 1 28 Piston Seal TU-60-33 1 Square Drive Assembly TU-60-11
