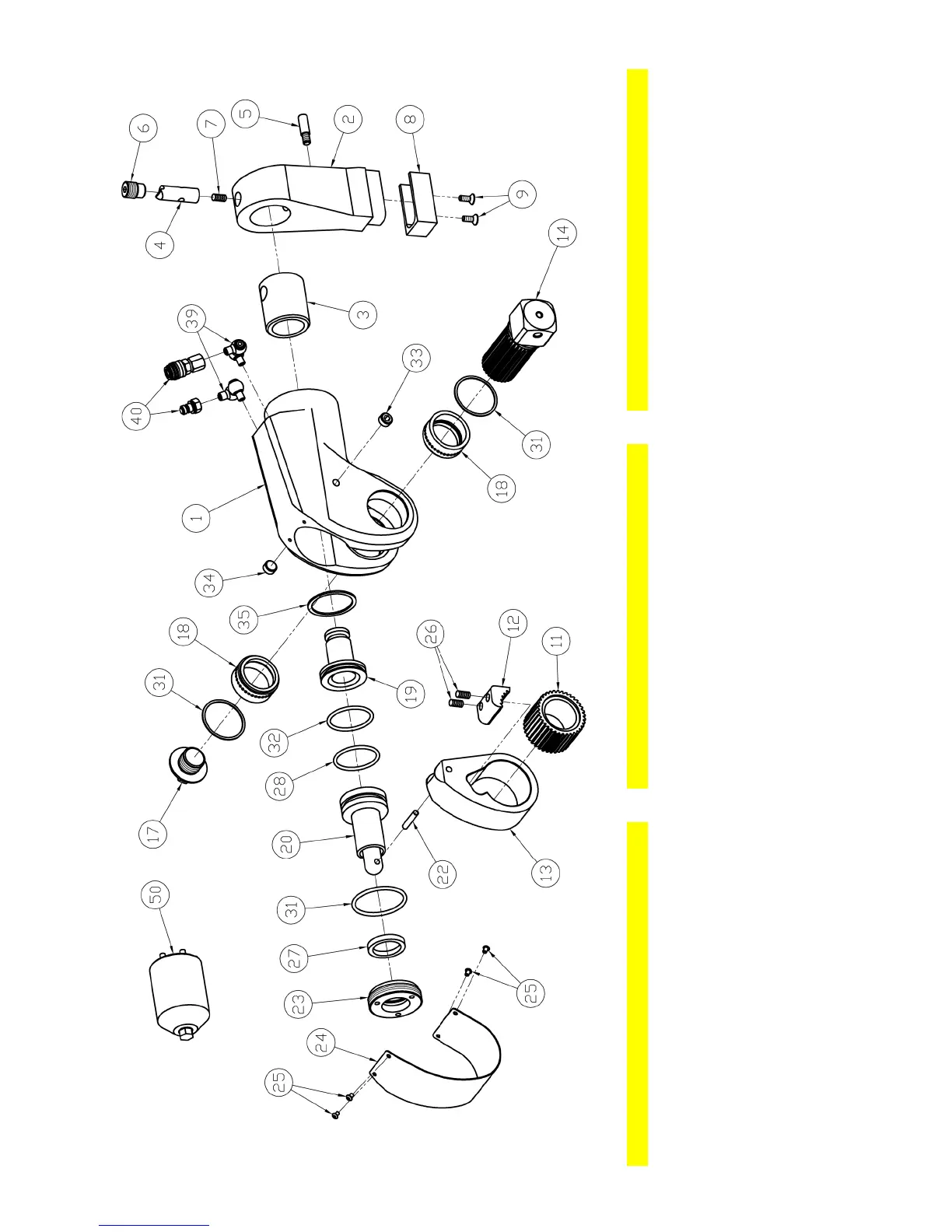

TU-27 Series Wrench
ITEM
NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1 Housing TU-27-01 1 14 Square Drive TU-27-11-1 1 31 Gland Seal TU-27-35 1
2 Reaction Arm TU-27-03-1 1 17 Sq. Dr. Retaining Knob TU-27-11-6 1 32 End Plug Seal TU-27-37 1
3 Spline Sleeve TU-27-03-2 1 18 Sq. Drive Sleeve TU-27-13 2 33 Housing Side Plug TU-27-39 2
4 Locking Pin TU-27-03-3 1 19 End Plug TU-27-15 1 34 Sleeve Retaining Ring TU-27-41 2
5 Retract Button TU-27-03-4 1 20 Piston Rod Assembly TU-27-17 1 35 Cylinder Ring TU-27-43 1
6 Reaction Arm Screw TU-27-03-5 1 22 Roll Pin TU-27-19 1 39 Swivel Set STU-8M-4M 2
7 Reaction Arm Spring TU-27-03-6 1 23 Cylinder Gland TU-27-21 1 40 Coupler Set HC-S-100 1
8 Reaction Arm Cover TU-27-03-7 1 24 Shroud TU-27-23 1
9 Cover Screws TU-27-03-8 2 25 Shroud Screws TU-27-25 4 50 Gland Wrench TU-27-GW
11 Ratchet TU-27-05 1 26 Drive Segment Spring TU-27-27 2
12 Drive Segment TU-27-07 1 27 Rod Seal TU-27-31 1 Reaction Arm Assembly TU-27-03
13 Drive Plate TU-27-09 1 28 Piston Seal TU-27-33 1 Square Drive Assembly TU-27-11
Part Numbers for Ordering
