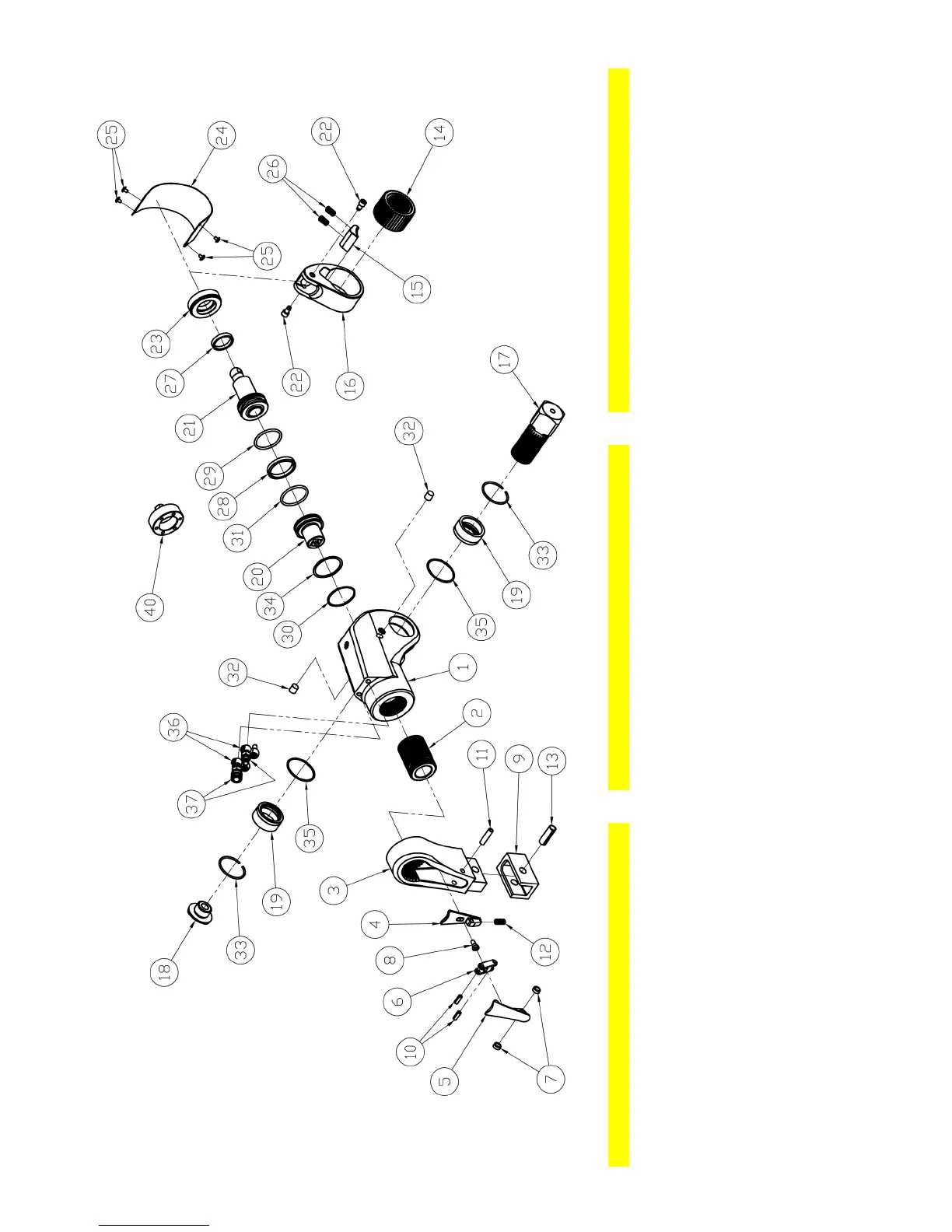

TU-20 Series Wrench

ITEM

NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.

1 Housing TU-20-01 1 14 Ratchet TU-20-05 1 27 Rod Seal TU-20-31 1

2 Spline Sleeve TU-20-02 1 15 Drive Segment TU-20-07 1 28 Piston U-Cup Seal TU-20-33 1

3 Reaction Arm TU-20-03-01 1 16 Drive Plate TU-20-09 1 29 Piston Seal TU-20-34 1

4 Gate TU-20-03-02 1 17 Square Drive TU-20-11-1 1 30 Gland Seal TU-20-35 1

5 Gate Lever Link TU-20-03-03 1 18 Sq. Dr. Retaining Knob TU-20-11-8 1 31 End Plug Seal TU-20-37 1

6 Gate Lever TU-20-03-04 1 19 Square Drive Sleeve TU-20-13 2 32 Housing Side Plug TU-20-39 2

7 Gate Lever Spacer TU-20-03-05 2 20 End Plug TU-20-15 1 33 Sleeve Retaining Ring TU-20-41 2

8 Gate Bolt TU-20-03-06 1 21 Piston Rod Assembly TU-20-17 1 34 Cylinder Ring TU-20-43 1

9 Reaction Arm Cover TU-20-03-07 1 22 Retract Screw TU-20-19 2 35 Sleeve O-Ring TU-20-51 2

10 Gate Link Pin TU-20-03-08 2 23 Cylinder Gland TU-20-21 1 36 Swivel Set STU-4M-4M 2

11 Gate Lever Pin TU-20-03-09 1 24 Shroud TU-20-23 1 37 Coupler Set HC-S-100 1

Gate Spring

TU-20-03-10 1 25 Shroud Screw TU-20-25 4

13 Cover Roll Pin TU-20-03-11 1 26 Drive Segment Spring TU-20-27 2

Gland Wrench TU-20-GW

Part Numbers for Ordering
