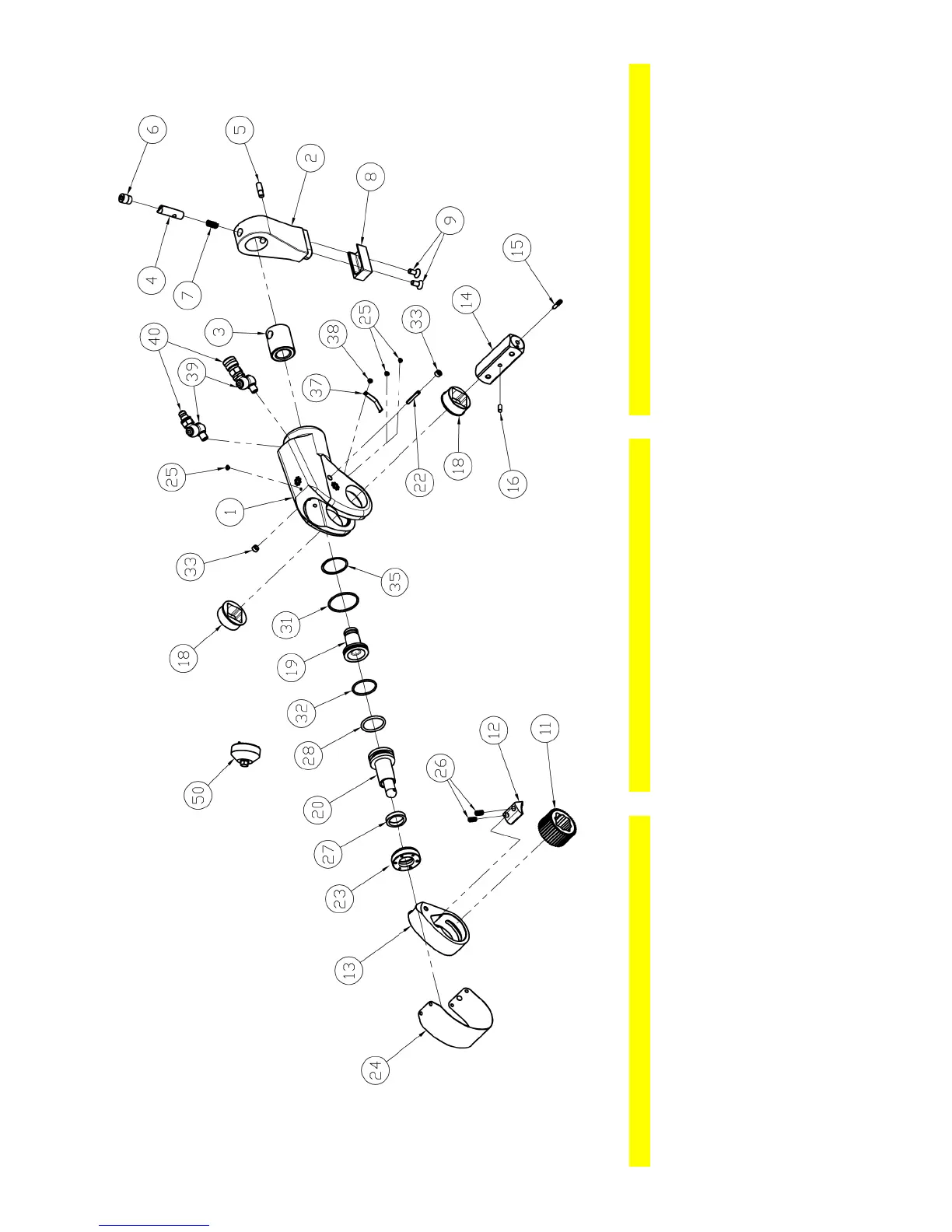

TU-11 Series Wrench
NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1 Housing TU-11-01-U 1 14 Square Drive TU-11-11-1 1 28 Piston Seal TU-11-33-U 1
2 Reaction Arm TU-11-03-1-U 1 15 Sq. Dr. Locking Pin TU-11-11-2 1 31 Gland Seal TU-11-35 1
3 Spline Sleeve TU-11-03-2 1 16 Sq. Drive Pin TU-11-11-3 1 32 End Plug Seal TU-11-37-U 1
4 Locking Pin TU-11-03-3 1 18 Sq. Drive Sleeve TU-11-13 2 33 Housing Side Plug TU-11-39 2
5 Retract Button TU-11-03-4 1 19 End Plug TU-11-15-U 1 35 Cylinder Ring TU-11-43-U 1
6 Reaction Arm Screw TU-11-03-5 1 20 Piston Rod Assembly TU-11-17-U 1 37 Ratchet Spring TU-11-53 1
7 Reaction Arm Spring TU-11-03-6 1 22 Roll Pin TU-11-19 1 38 Ratchet Spring Screw TU-11-25 1
8 Reaction Arm Cover TU-11-03-7 1 23 Cylinder Gland TU-11-21 1 39 Swivel Set STU-8M-4M 2
9 Cover Screws TU-11-03-8 2 24 Shroud TU-11-23-U 1 40 Coupler Set HC-S-100 1
11 Ratchet TU-11-05 1 25 Shroud Screws TU-11-25 4 50 Gland Wrench TU-11-GW
12 Drive Segment TU-11-07 1 26 Drive Segment Spring TU-11-27 2 Reaction Arm Assembly TU-11-03
13 Drive Plate TU-11-09-U 1 27 Rod Seal TU-11-31 1 Square Drive Assembly TU-11-11
