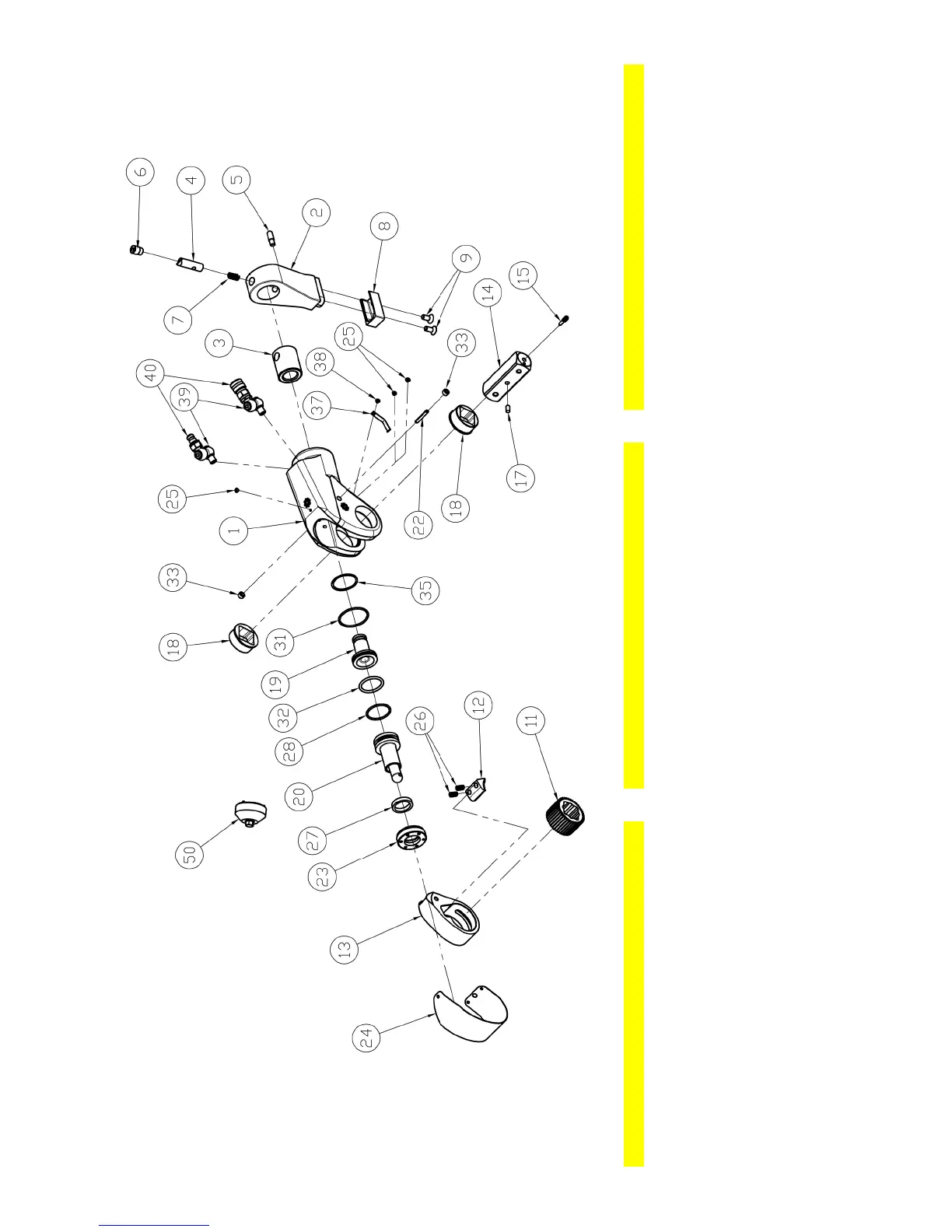

TU-7 Series Wrench
NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1 Housing TU-7-01 1 14 Square Drive TU-7-11-1-U 1 28 Piston Seal TU-7-33 1
2 Reaction Arm TU-7-03-1-U 1 15 Sq. Dr. Locking Pin TU-7-11-2 1 31 Gland Seal TU-7-35 1
3 Spline Sleeve TU-7-03-2 1 16 Sq. Drive Pin TU-7-11-3 1 32 End Plug Seal TU-7-37 1
4 Locking Pin TU-7-03-3 1 18 Sq. Drive Sleeve TU-7-13 2 33 Housing Side Plug TU-7-39 2
5 Retract Button TU-7-03-4 1 19 End Plug TU-7-15-U 1 35 Cylinder Ring TU-7-43 1
6 Reaction Arm Screw TU-7-03-5 1 20 Piston Rod Assembly TU-7-17-U 1 37 Ratchet Spring TU-7-53 1
7 Reaction Arm Spring TU-7-03-6 1 22 Roll Pin TU-7-19 1 38 Ratchet Spring Screw TU-7-25 1
8 Reaction Arm Cover TU-7-03-7 1 23 Cylinder Gland TU-7-21 1 39 Swivel Set STU-8M-4M 2
9 Cover Screws TU-7-03-8 2 24 Shroud TU-7-23-U 1 40 Coupler Set HC-S-100 1
11 Ratchet TU-7-05 1 25 Shroud Screws TU-7-25 3 50 Gland Wrench TU-7-GW
12 Drive Segment TU-7-07-U 1 26 Drive Segment Spring TU-7-27 2 Reaction Arm Assembly TU-7-03
13 Drive Plate TU-7-09-U 1 27 Rod Seal TU-7-31 1 Square Drive Assembly TU-7-11
