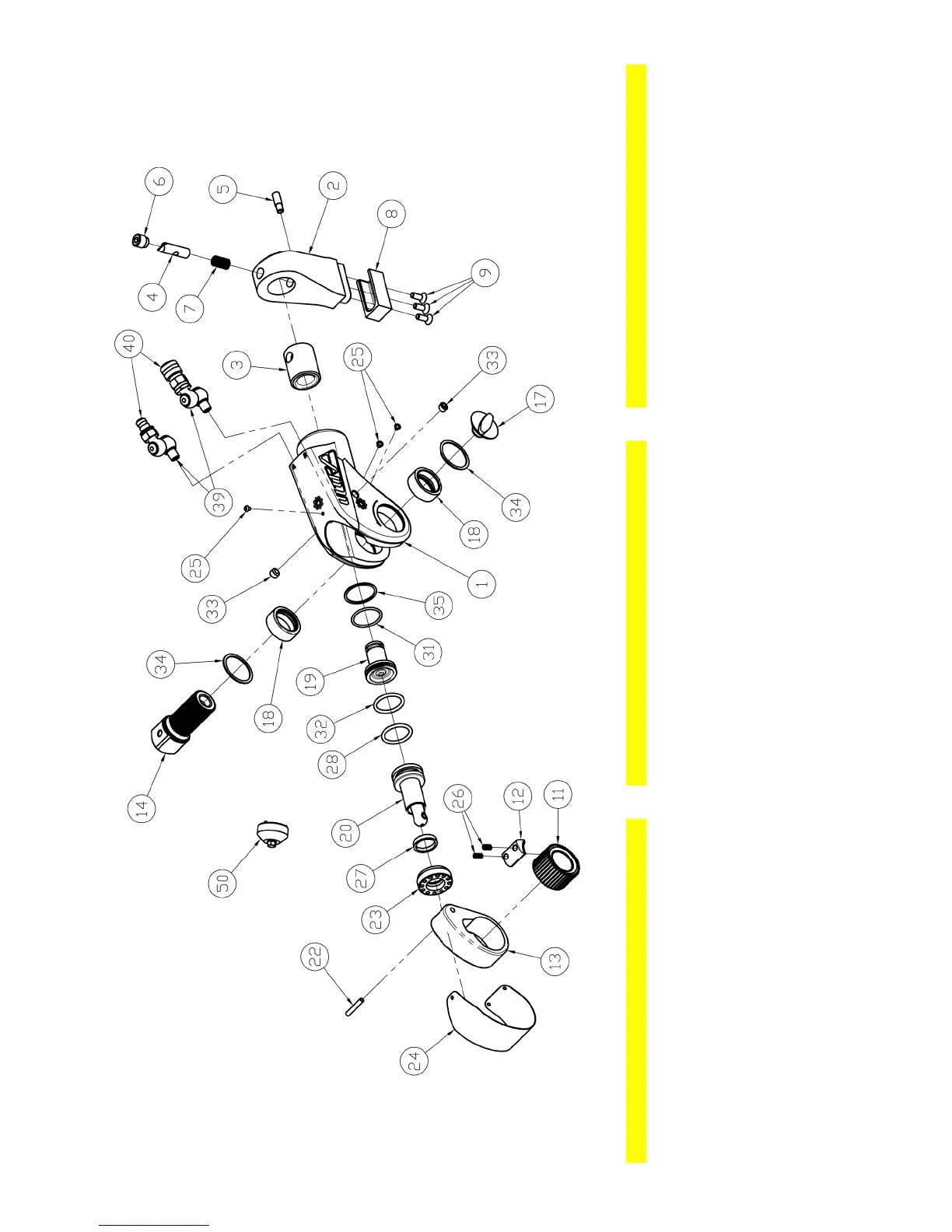

TU-5 Series Wrench
ITEM
NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1 Housing TU-5-01 1 14 Square Drive TU-5-11-1 1 31 Gland Seal TU-5-35 1
2 Reaction Arm TU-5-03-1 1 17 Sq. Dr. Retaining Knob TU-5-11-6 1 32 End Plug Seal TU-5-37 1
3 Spline Sleeve TU-5-03-2 1 18 Sq. Drive Sleeve TU-5-13 2 33 Housing Side Plug TU-5-39 2
4 Locking Pin TU-5-03-3 1 19 End Plug TU-5-15 1 34 Sleeve Retaining Ring TU-5-41 2
5 Retract Button TU-5-03-4 1 20 Piston Rod Assembly TU-5-17 1 35 Cylinder Ring TU-5-43 1
6 Reaction Arm Screw TU-5-03-5 1 22 Roll Pin TU-5-19 1 39 Swivel Set STU-8M-4M 2
7 Reaction Arm Spring TU-5-03-6 1 23 Cylinder Gland TU-5-21 1 40 Coupler Set HC-S-100 1
8 Reaction Arm Cover TU-5-03-7 1 24 Shroud TU-5-23 1
9 Cover Screws TU-5-03-8 3 25 Shroud Screws TU-5-25 3 50 Gland Wrench TU-5-GW
11 Ratchet TU-5-05 1 26 Drive Segment Spring TU-5-27 2
12 Drive Segment TU-5-07 1 27 Rod Seal TU-5-31 1 Reaction Arm Assembly TU-5-03
13 Drive Plate TU-5-09 1 28 Piston Seal TU-5-33 1 Square Drive Assembly TU-5-11
Part Numbers for Ordering
