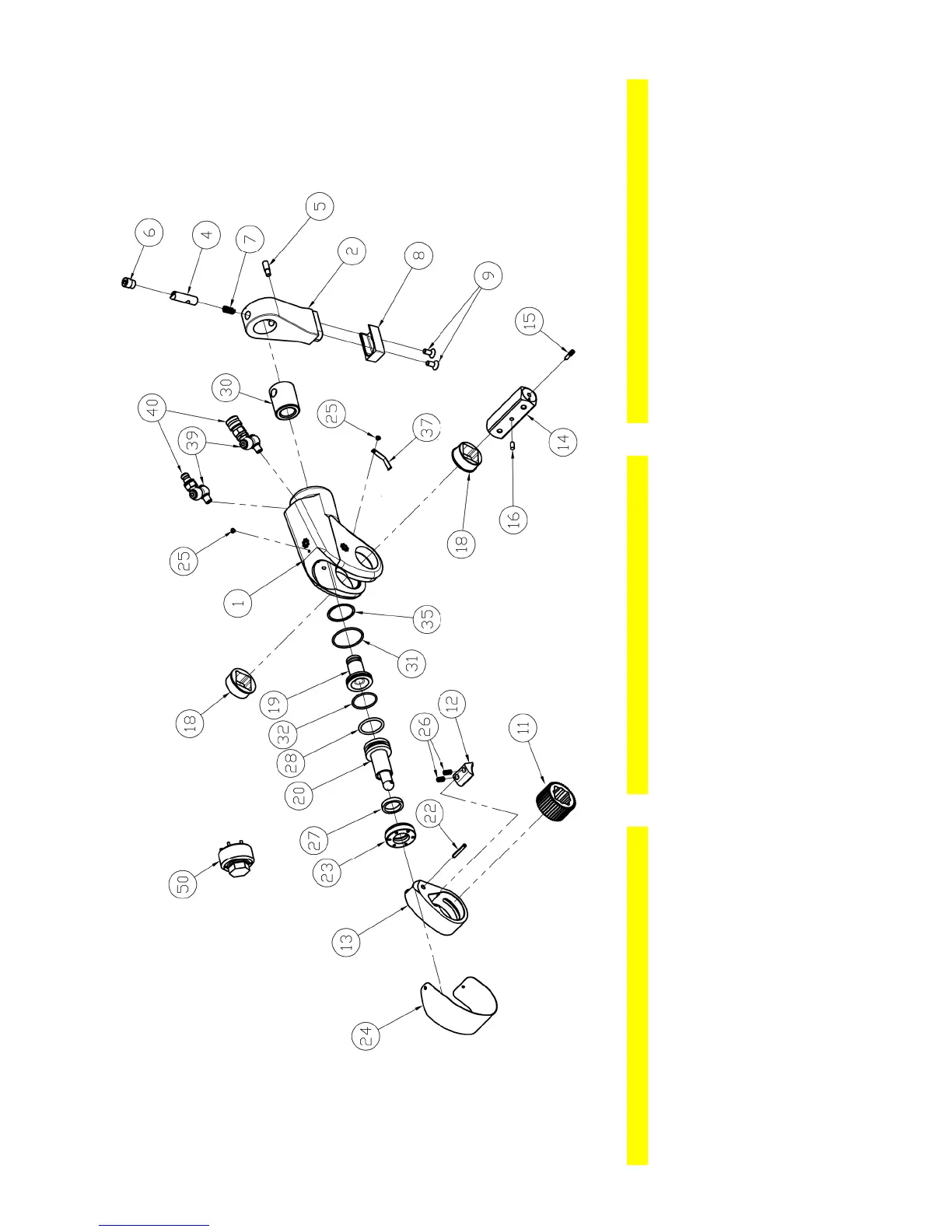

TU-3 Series Wrench
ITEM
NAME PART # QTY. ITEM NAME PART # QTY. ITEM NAME PART # QTY.
1 Housing TU-3-01-U 1 14 Square Drive TU-3-11-1 1 28 Piston Seal TU-3-33 1
2 Reaction Arm TU-3-03-1 1 15 Sq. Dr. Locking Pin TU-3-11-2 1 31 Gland Seal TU-3-35 1
3 Spline Sleeve TU-3-03-2 1 16 Sq. Drive Pin TU-3-11-3 1 32 End Plug Seal TU-3-37 1
4 Locking Pin TU-3-03-3 1 18 Sq. Drive Sleeve TU-3-13-U 2 35 Cylinder Ring TU-3-43 1
5 Retract Button TU-3-03-4 1 19 End Plug TU-3-15 1 37 Ratchet Spring TU-3-53 1
6 Reaction Arm Screw TU-3-03-5 1 20 Piston Rod Assembly TU-3-17-U 1 39 Swivel Set STU-4M-4M 2
7 Reaction Arm Spring TU-3-03-6 1 22 Roll Pin TU-3-19 1 40 Coupler Set HC-S-100 1
8 Reaction Arm Cover TU-3-03-7 1 23 Cylinder Gland TU-3-21 1
9 Cover Screws TU-3-03-8 2 24 Shroud TU-3-23-U 1 50 Gland Wrench TU-3-GW
11 Ratchet TU-3-05 1 25 Shroud Screws TU-3-25 2
12 Drive Segment TU-3-07 1 26 Drive Segment Spring TU-3-27 2 Reaction Arm Assembly TU-3-03
13 Drive Plate TU-3-09-U 1 27 Rod Seal TU-3-31 1 Square Drive Assembly TU-3-11
Part Numbers for Ordering
