32
MAINTENANCE SECTION

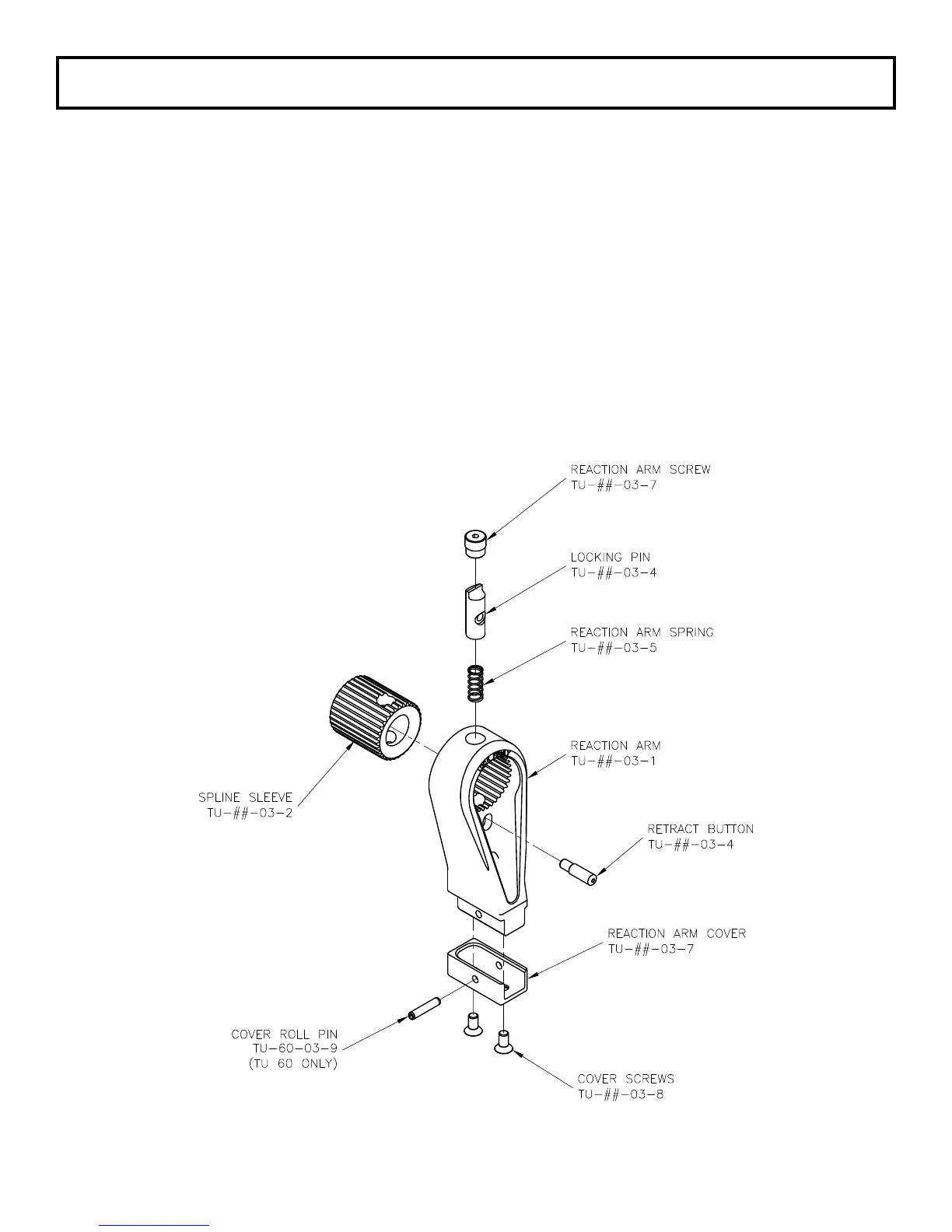

ASSEMBLY OF THE TU REACTION ARM (For all models except TU-20)
1. If the reaction arm cover was removed, push it onto the end of the reaction arm and secure it with
the cover screws.
2. For TU-60 model only: Install the cover roll pin into the reaction arm and cover.
3. Insert the reaction arm spring into the blind hole below the bore for the spline sleeve.
4. Push the spline sleeve into the reaction arm so that the holes in the sleeve align with the reaction
arm screw hole. The sleeve should protrude from the back of the arm.
5. Insert the locking pin into the reaction arm through the reaction arm screw opening, while ensuring
the screw hole is accessible through the slot in the reaction arm.
6. Apply some downward pressure to the locking pin and thread the retract button into the locking pin
through the slot in the reaction arm. Use a small amount of serviceable thread locking compound
on the threads and tighten.
7. Thread the reaction arm screw into the reaction arm and tighten with a hex wrench until the
unthreaded end enters the hole in the spline sleeve and the threads bottom out.
