MAINTENANCE SECTION

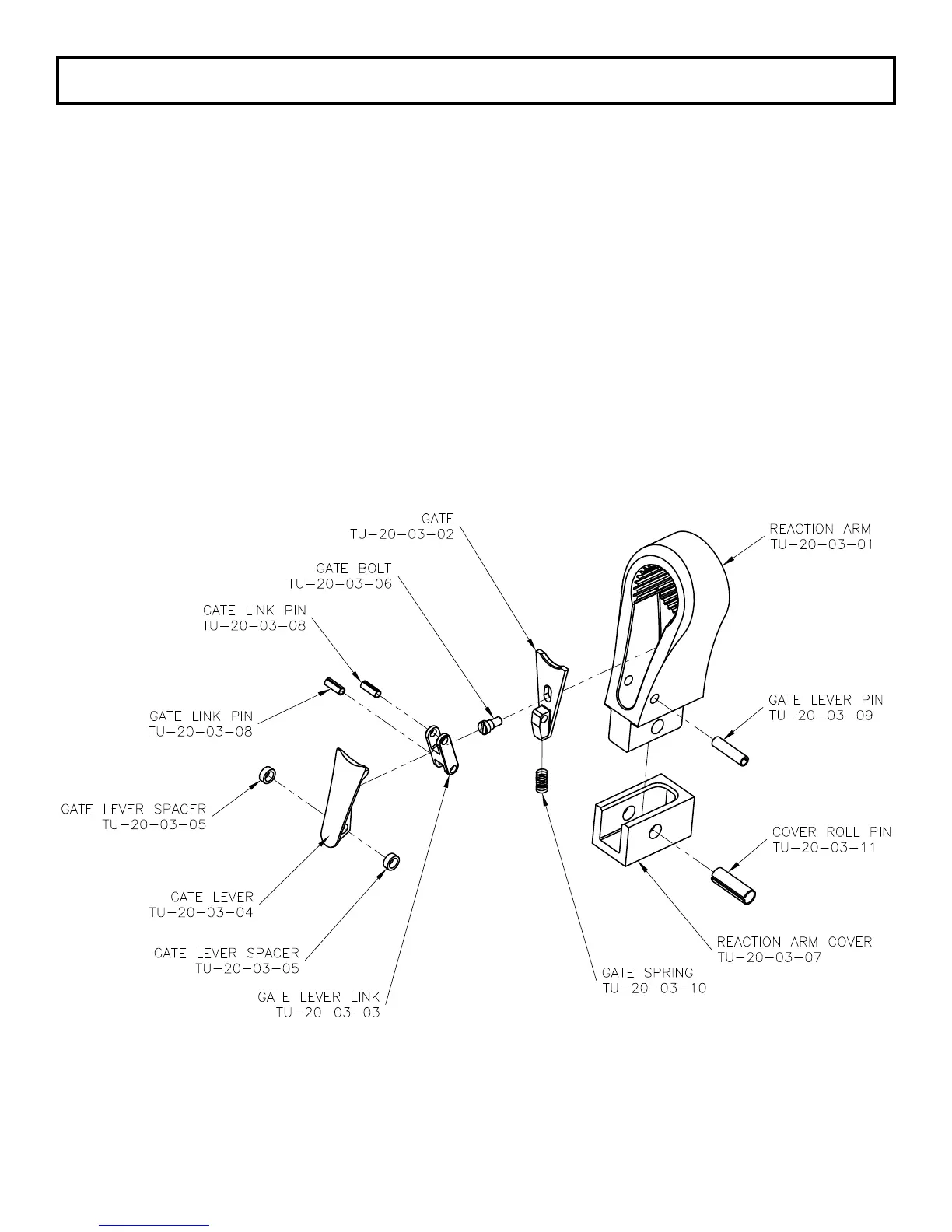

ASSEMBLY OF THE TU-20 REACTION ARM
1. If the reaction arm cover was removed, push it onto the end of the reaction arm and insert the
cover roll pin to retain the cover using a hammer.
2. Assemble the gate lever to the gate lever link using the gate link pin.
3. Assemble the gate to the gate lever link using the second gate link pin.
4. Insert the gate spring into the gate.
5. Hold the gate in the reaction arm and thread the gate bolt through the gate into the reaction
arm. Use a small amount of serviceable thread locking compound on the threads. Tighten
with a screwdriver.
6. Place the gate lever spacers over the gate lever.
7. Swing the gate lever and the link into the reaction arm with the gate lever spacers.
8. Insert the gate lever pin into the reaction arm through the gate lever and the gate lever
spacers.
