ASSEMBLY
1. Familiarize yourself with the jack.
3. Refer to picture 2 when performing this step.
Press Quick Disconnect on handle piece 2, this
will allow slide handle pieces 1 and 2 connect,
align the holes on both sections to allow quick
disconnect to trigger. Quick disconnect will
automatically pop out when hole position is
correct.
4. Unfasten the screw located in the Handle Socket
to insert the assembled handle.
5. Line up the square hole located at the bottom of
the handle over the square bolt inside the Handle
Socket.
6. Secure the handle in place by tightening the screw
in the Handle Socket Without any vehicle on the
jack. Cycle the lift up and down several times to
insure the hydraulic system is operating properly.
(Perform the System Air Purge Procedure before
rst use.)
2. Prior to assembly, carefully remove the retaining
clip attached to the handle socket. CAUTION:
The socket will tend to spring upward when the
clip is removed. To prevent possible injury, place
one hand on the top of handle socket to control
the upward motion of the handle socket retaining
clip, and then carefully remove the retaining clip.
After removed slowly allow handle socket to rise
back into resting position.

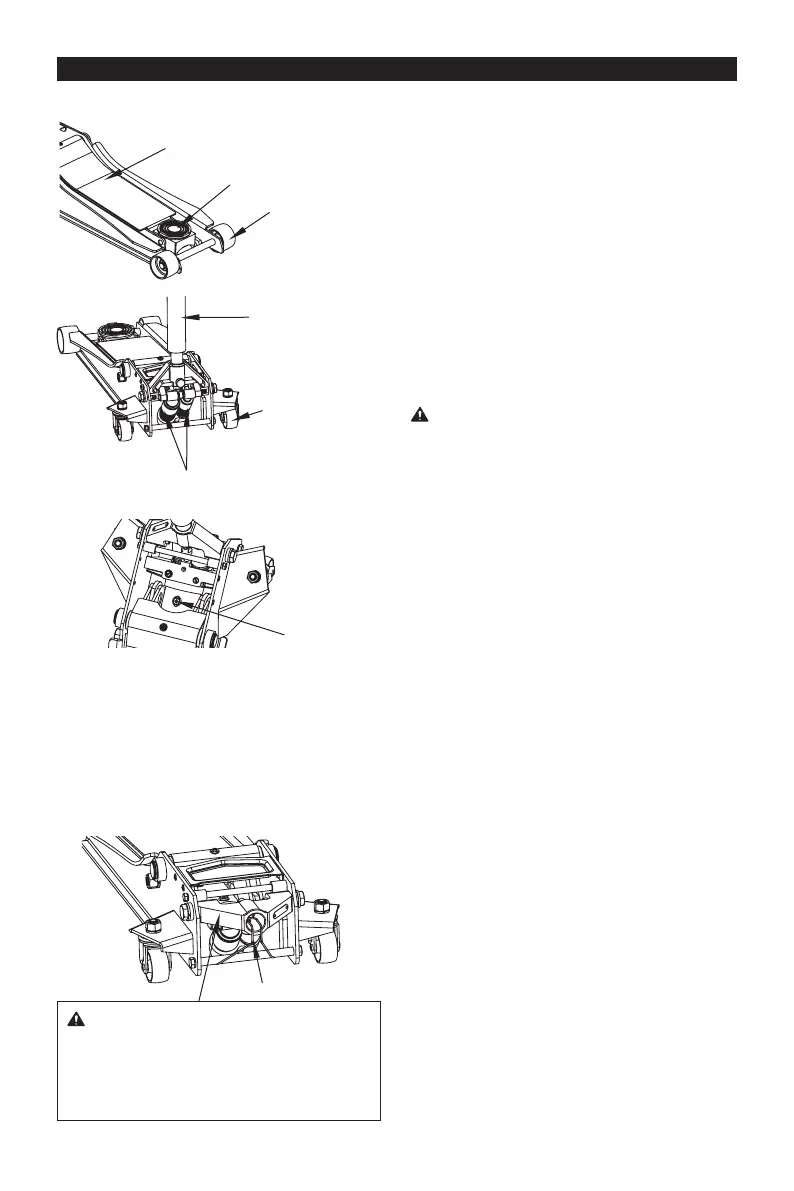

Lifting Arm
Saddle
Front Wheel
Handle
Rear Swivel
Casters
Pump Plunger
Oil Fill Plug
WARNING: Do not lift or carry jack by handle.
Handle could dislodge and jack may fall,
resulting in possible injury or property damage.
Once retaining clip is removed, SLOWLY allow
handle socket to rise back into resting position.
Use CAUTION when removing retaining clip,
handle socket will spring forward rapidly.
WARNING!
Clip
