Torin T42002 - ASSEMBLY INSTRUCTIONS

5
ASSEMBLY INSTRUCTIONS
In order to prevent removal of the post from the base use a hammer and at end punch to hammer the jack's
tab in toward to post but not touching the post. If the same stands are equipped with a bolt instead of the tab.
In this case the bolt can be threaded in toward the post until the bolt bottoms out.
Item: T42002,T42002-1 T42002X, T43002, T43002-1,T43002X,T43006, T46002, T46002-1
1. Install ratchet bar into frame (g.1) with ratchet portion of bar aligned with locking pawl (stopper).
2. Move the ratchet bar to its lowest position by raising the locking handle, thereby releasing the stopper, and
guiding the bar downward (g. 2).
3. Bend metal tab in (Fig. 3) using a hammer and punch. This will help prevent inadvertent separation of the
ratchet bar from base frame.
Item: T412002,T412002-1
1. Install ratchet bar into frame (g.1) with ratchet portion of bar aligned with locking pawl (stopper).
2. Move the ratchet bar to its lowest position by raising the locking handle, thereby releasing the stopper, and
guiding the bar downward (g. 2).
3. Tightening the bolt (Fig 3) using a wrench. This will help prevent inadvertent separation of the ratchet bar
from base frame.
Metal tab

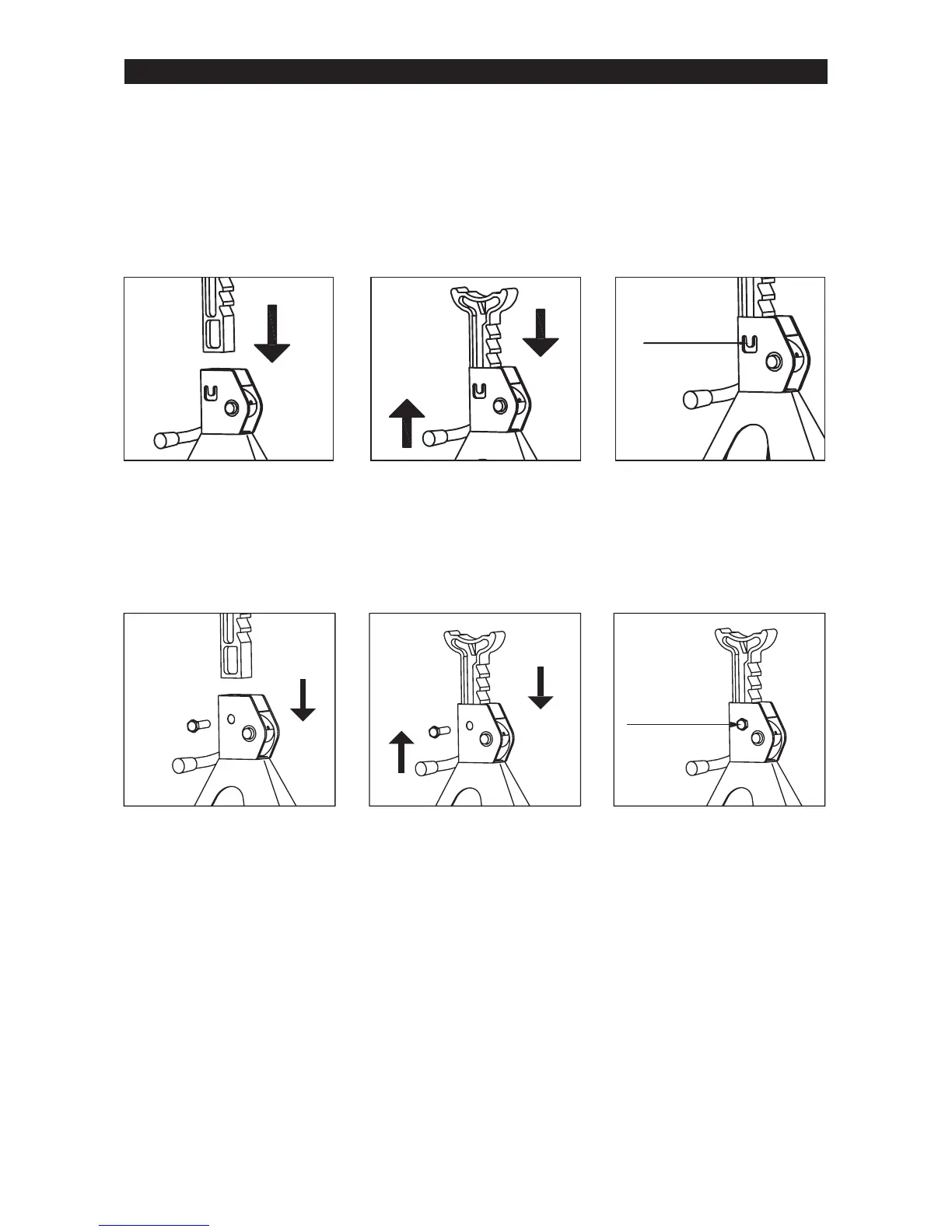

g.1
g.1
g.2
g.2
g.3
g.3
Tightening
the bolt
