Washroom Dispenser Service and Parts Manual
Tork Hand Towel Centerfeed Dispenser
93T Revision Date: 12-17-09
Part Description with Replacement Instructions
Parts with SKUs listed are available for order as of the revision date on the manual. Contact an SCA
Sales Rep or the SCA Tissue Quality Coordinator to order these parts.
If no SKU is listed, the availability of the part is unknown. Please contact the SCA Tissue Quality
Coordinator for more information (see Contacting SCA section).
Replacement SKU Description & Replacement Instructions
93T COVER
The cover for the 93T can be removed by opening the cover and pulling the cover
away from the rest of the dispenser. The hinges will separate.
#15 KEY #15 DISP KEY
FUNNEL DOOR
The funnel door is used in the installation of a centerfeed towel roll. See Loading
Instructions for more details. Not replaceable.
OPENING SETTING
This is a scale that reads from 0 to 5. It indicates the size of the opening at the
bottom of the funnel. For more details, see the Settings
section. Not replaceable.
ADJUSTMENT SCREW
Turning the adjustment screw changes the size of the opening at the bottom of the
funnel. For more details, see the Settings
section. Not replaceable.

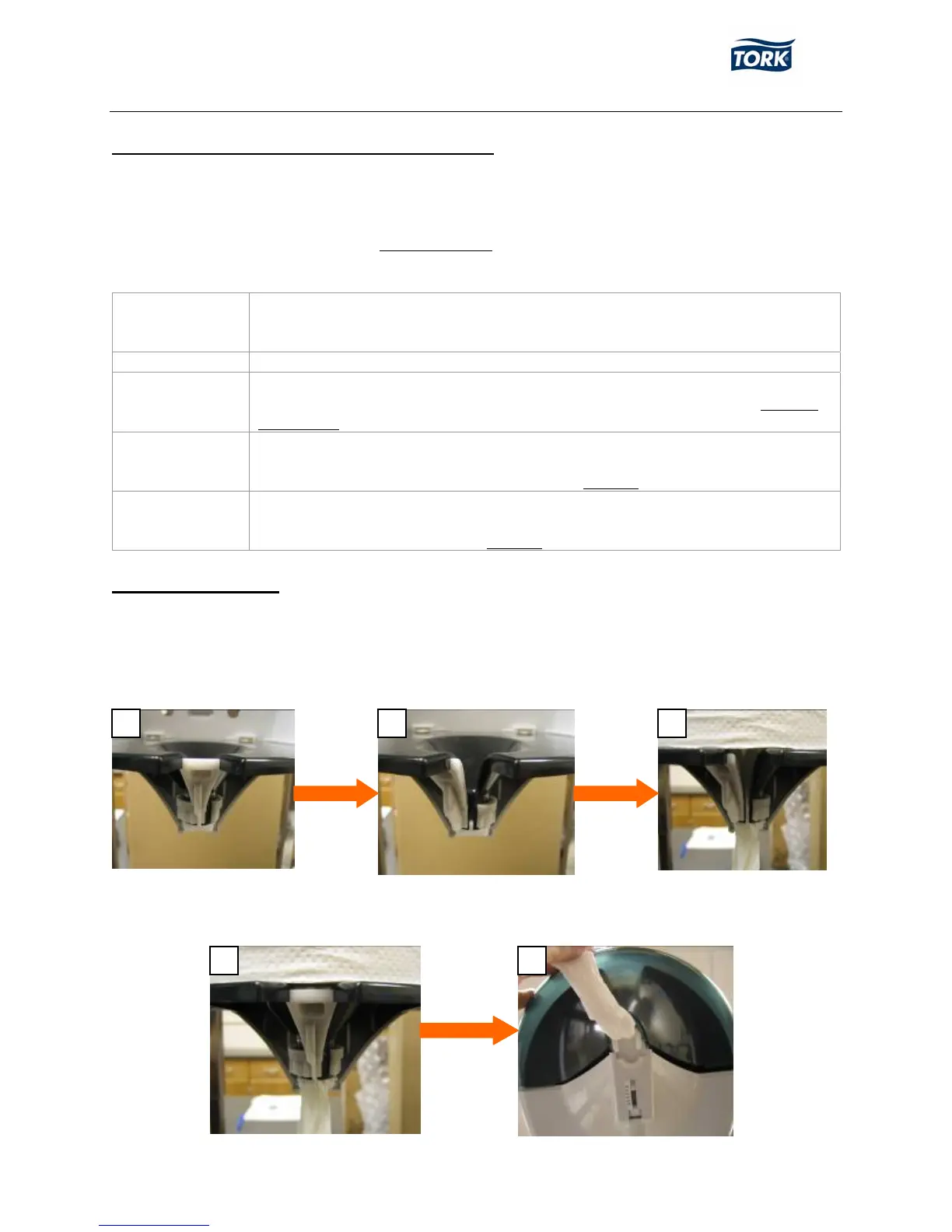

Loading Instructions
1. Open cover. The funnel door should be in the closed position (A). Push funnel door to the
left to open the funnel (B). Clear away any pieces of towel from inside the dispenser and funnel.
Remove core from a new roll of centerfeed towel. Set roll in the dispenser and insert towel
through the opening in the funnel (C).
2 of 5
A B C
2. Make sure towel is completely in funnel, so it will not be pinched between the door and funnel
when closed. Close funnel door (D). Start to shut the cover. Make sure before you snap cover
shut that the towel is not pinched between the cover and dispenser housing (E).
D E
