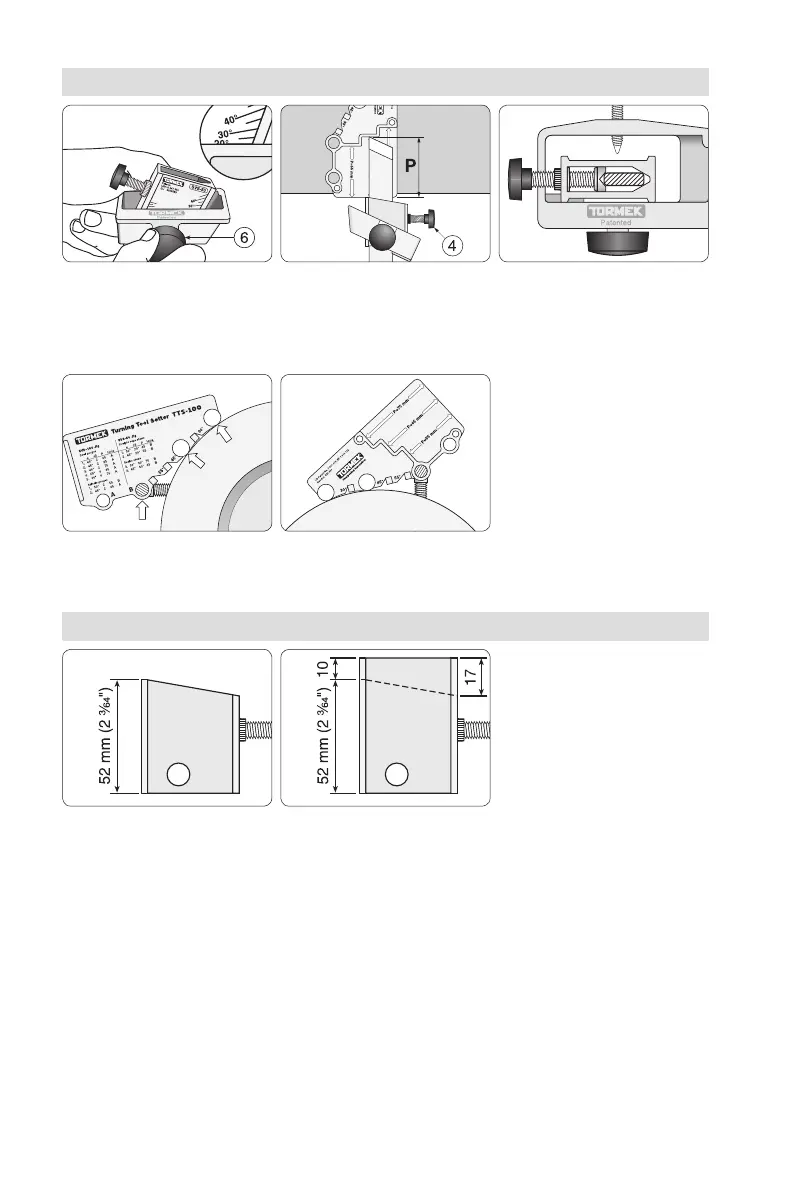

Set the jig and lock the posi-
tionsecurely with the bottom
screw (6).
Horizontally
Mount the tool. Lock with
the side screw (4).
Check that the tool is aligned
so the shape later on will be
exactly replicated.
Settings
The closed seat
Earlier designCurrent design
Vertically
Set the Universal Support.
You can work with the Univer-
sal Support mounted either
horizontally or vertically (page
99). Use the inner hole of the
setter. Both metal discs must
touch the grinding wheel.
This seat has been re-designed
(2006). It is now 10 mm shorter
and also slanted in order to
permit the sharpening of shorter
tools. If you have the longer
seat, you should trim it to 52 mm
(2
3/64
").
